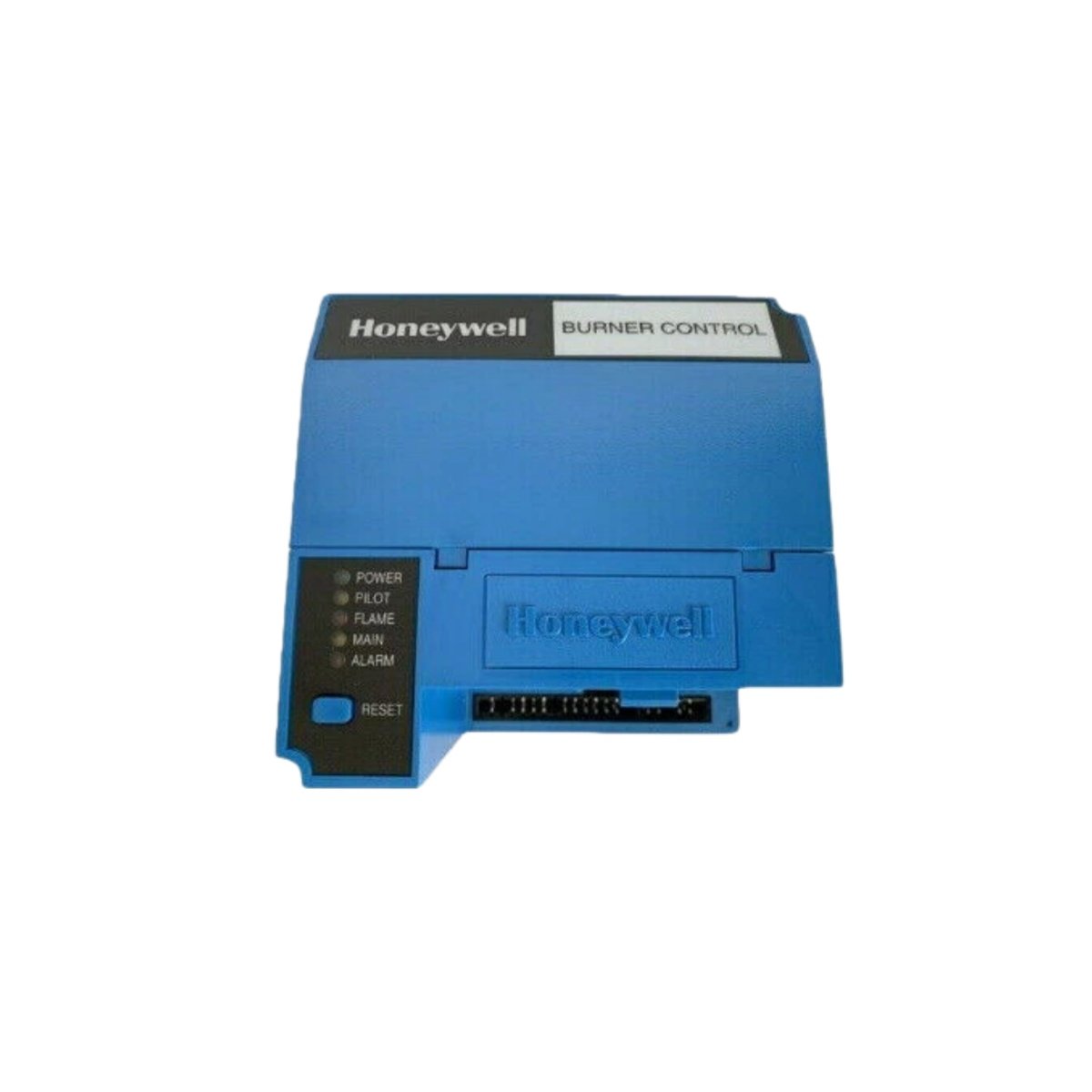

The Honeywell RM7895A1014 primary burner control delivers microprocessor-based sequencing and flame supervision for single-burner applications . This relay module manages gas, oil, or combination fuel systems with advanced safety features. It replaces the older R7795A and R7795B models directly . The module provides automatic burner sequencing and comprehensive self-diagnostics for reliable operation .
Technical Specifications of Honeywell RM7895A1014
The Honeywell RM7895A1014 primary control operates on a 120 Vac supply with a tolerance of +10% and -15% . It supports both 50 Hz and 60 Hz frequencies with a ±10% tolerance . The module dissipates a maximum of 10 W and handles a total connected load of up to 2000 VA . It requires a fast-blow 15 A fuse, type SC or equivalent, for circuit protection .
| Parameter | Specification |
|---|---|
| Model Number | Honeywell RM7895A1014 |
| Product Type | Primary Burner Control (Relay Module) |
| Application | Single-burner gas, oil, or combination fuel |
| Supply Voltage | 120 Vac (+10%, -15%) |
| Frequency | 50/60 Hz (±10%) |
| Power Dissipation | 10 W maximum |
| Max Total Load | 2000 VA |
| Pilot Flame Period | 4 or 10 seconds (selectable) |
| Main Flame Period | Intermittent |
| Airflow Check (AFSC) | Not included |
| Operating Temp. | -40 °F to 140 °F (-40 °C to 60 °C) |
| Storage Temp. | -40 °F to 150 °F (-40 °C to 66 °C) |
| Humidity | 85% RH continuous, non-condensing |
| Vibration | 0.5 G environment |
| Dimensions (with Q7800A) | 5″ W x 5″ H x 5.25″ D |
| Weight | Approx. 0.9 kg to 1.18 kg |
| Replaces | R7795A, R7795B |
System Architecture and Components
The Honeywell RM7895A1014 primary control requires several components for full operation. It must work with a Q7800 series wiring subbase, a compatible flame amplifier (R7847, R7848, R7849, R7851, R7852, R7861, or R7886), and a ST7800A plug-in purge timer card . Options include a keyboard display module for local configuration and a Combustion System Manager software for advanced system management .
Integration and Application
The Honeywell RM7895A1014 primary control handles sequencing, flame monitoring, and safety lockout functions . It retains history files in non-volatile memory even after a power loss . The module includes five LEDs that indicate sequence status and fault conditions. You can deploy this primary control in commercial and industrial burner systems requiring reliable flame supervision and safety interlocking.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
