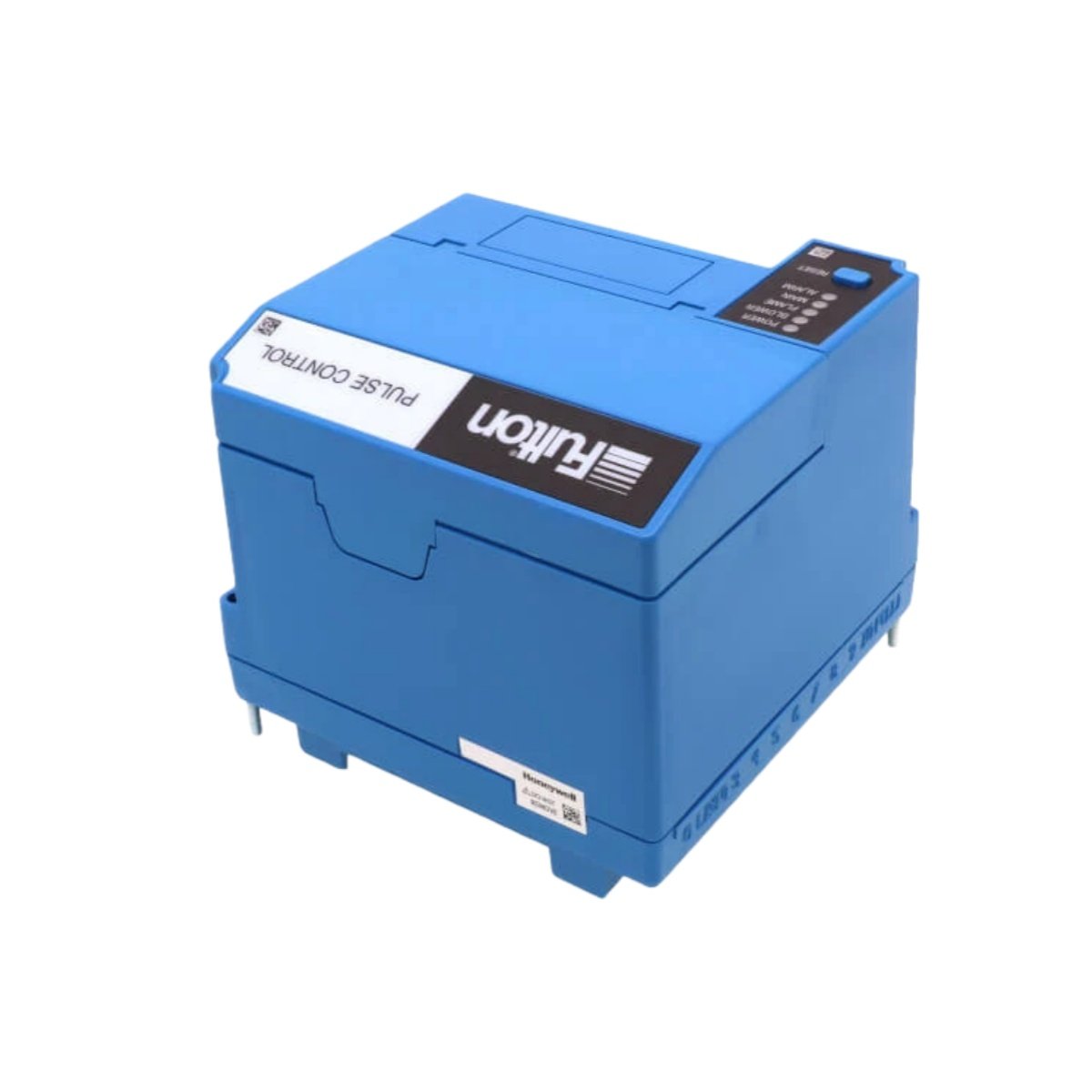

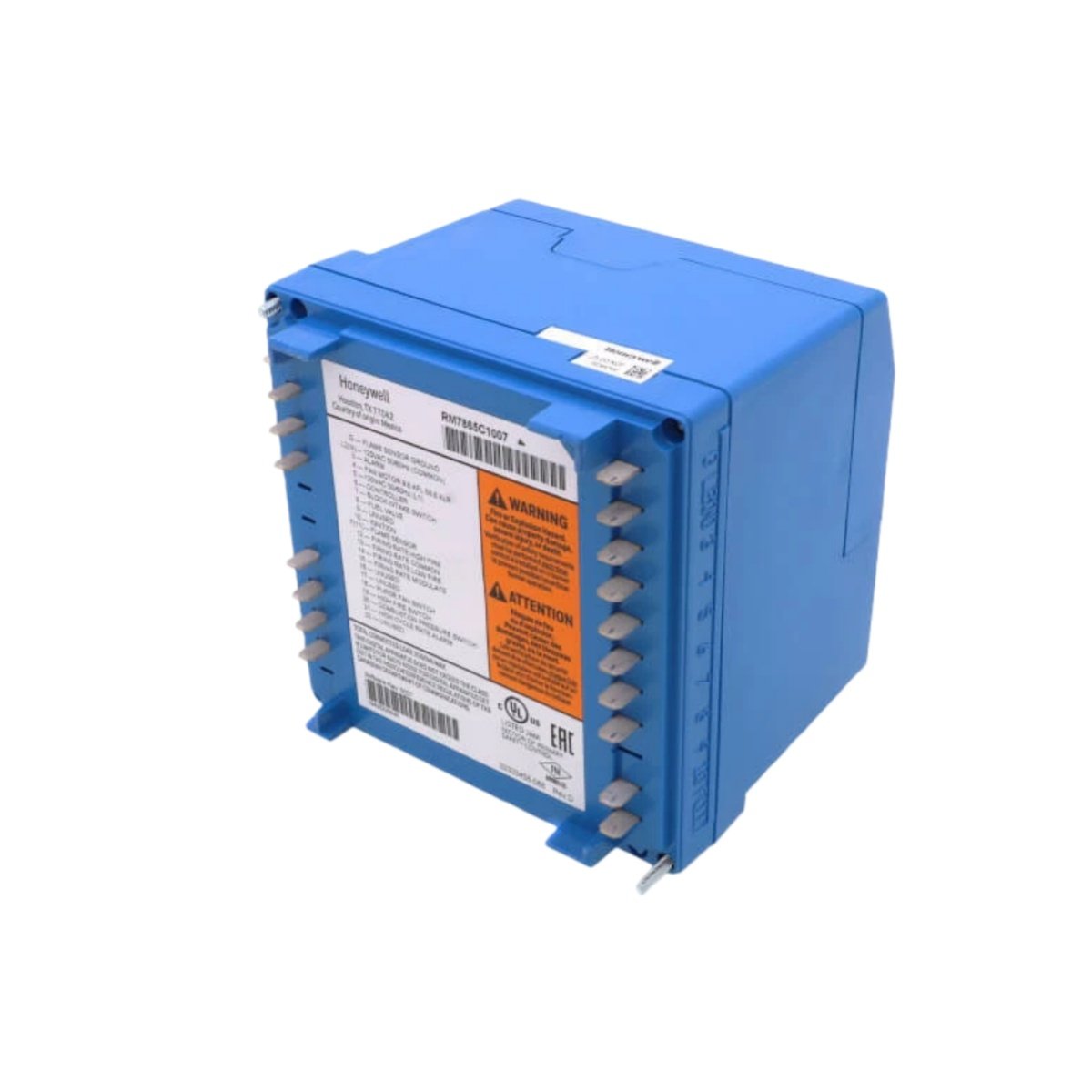

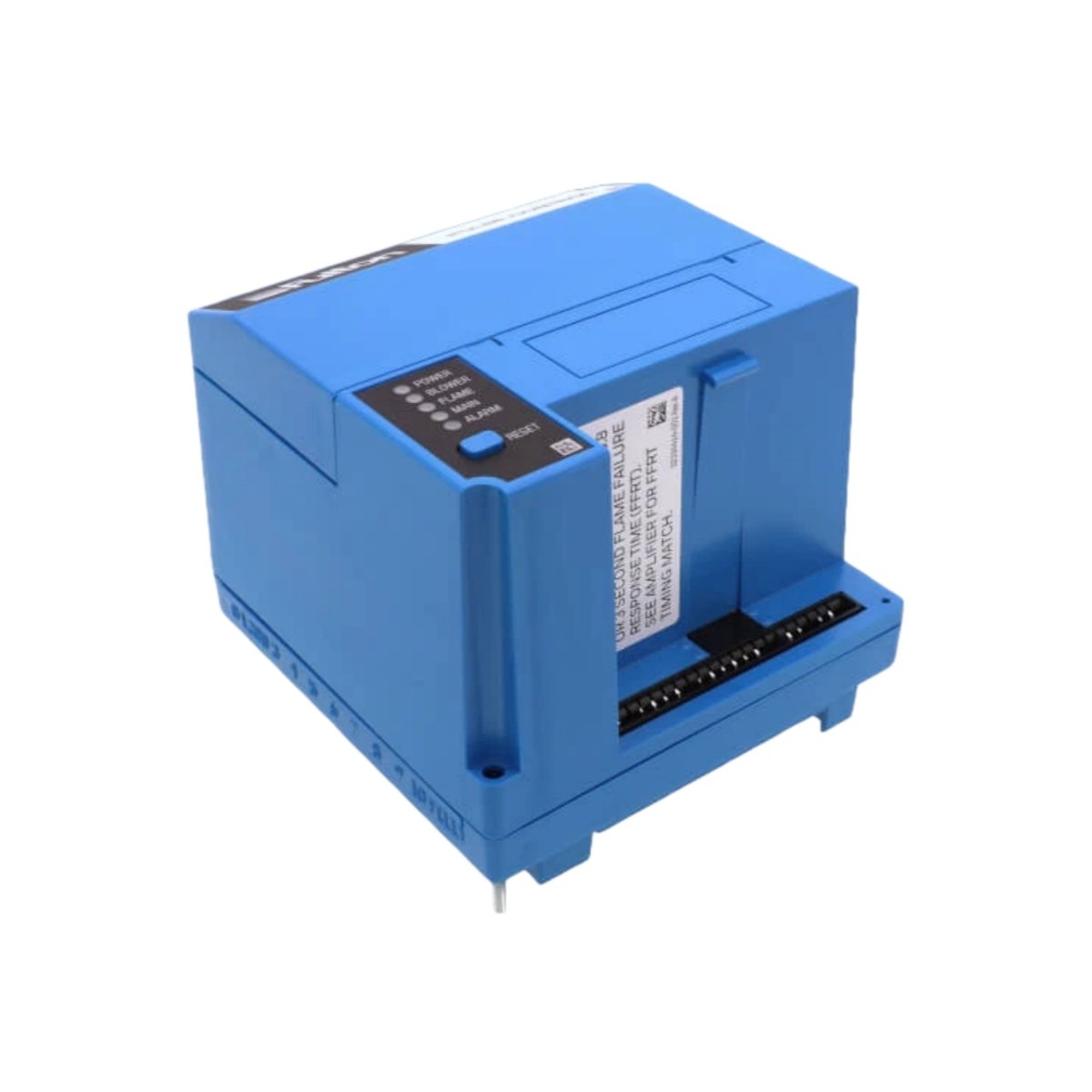

Microprocessor-Driven Safety for Commercial Combustion Systems
The Honeywell RM7865C1007 primary control delivers robust burner management for single-burner applications . This microprocessor-based unit handles gas, oil, coal, or combination fuel firing with precision . It provides automatic sequencing, flame supervision, and comprehensive system diagnostics . The controller integrates with the 7800 SERIES relay module and requires a Q7800A subbase for operation . This configuration supports SIL 3 capability for safety-critical environments .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Product Type | Primary Control / Burner Control |
| Power Supply | 120 Vac (+10%/-15%), 50/60 Hz |
| Maximum Power Consumption | 10 W |
| Maximum Connected Load | 2000 VA |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Storage Temperature | -40°C to +66°C |
| Dimensions | 127 × 127 × 133 mm |
| Weight | Approximately 0.82 kg |
| Mounting | Q7800A1013 subbase (required) |
| Approvals | UL Listed, FM Approved, SIL 3 Capable |
Safety and Diagnostic Intelligence
The Honeywell RM7865C1007 features dynamic self-check and relay testing for enhanced safety . It performs extended safety checks before startup . The controller also offers first-out annunciation to identify fault causes quickly . Nonvolatile memory retains fault history even after power loss . These diagnostic capabilities reduce troubleshooting time significantly.
Application and Integration
The Honeywell RM7865C1007 is specifically designed for Fulton Pulse Boilers . It supports an optional Keyboard Display Module for local diagnostics . The unit also offers optional communication interfaces for remote monitoring and reset . Its wide operating temperature range ensures deployment in harsh industrial environments.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
