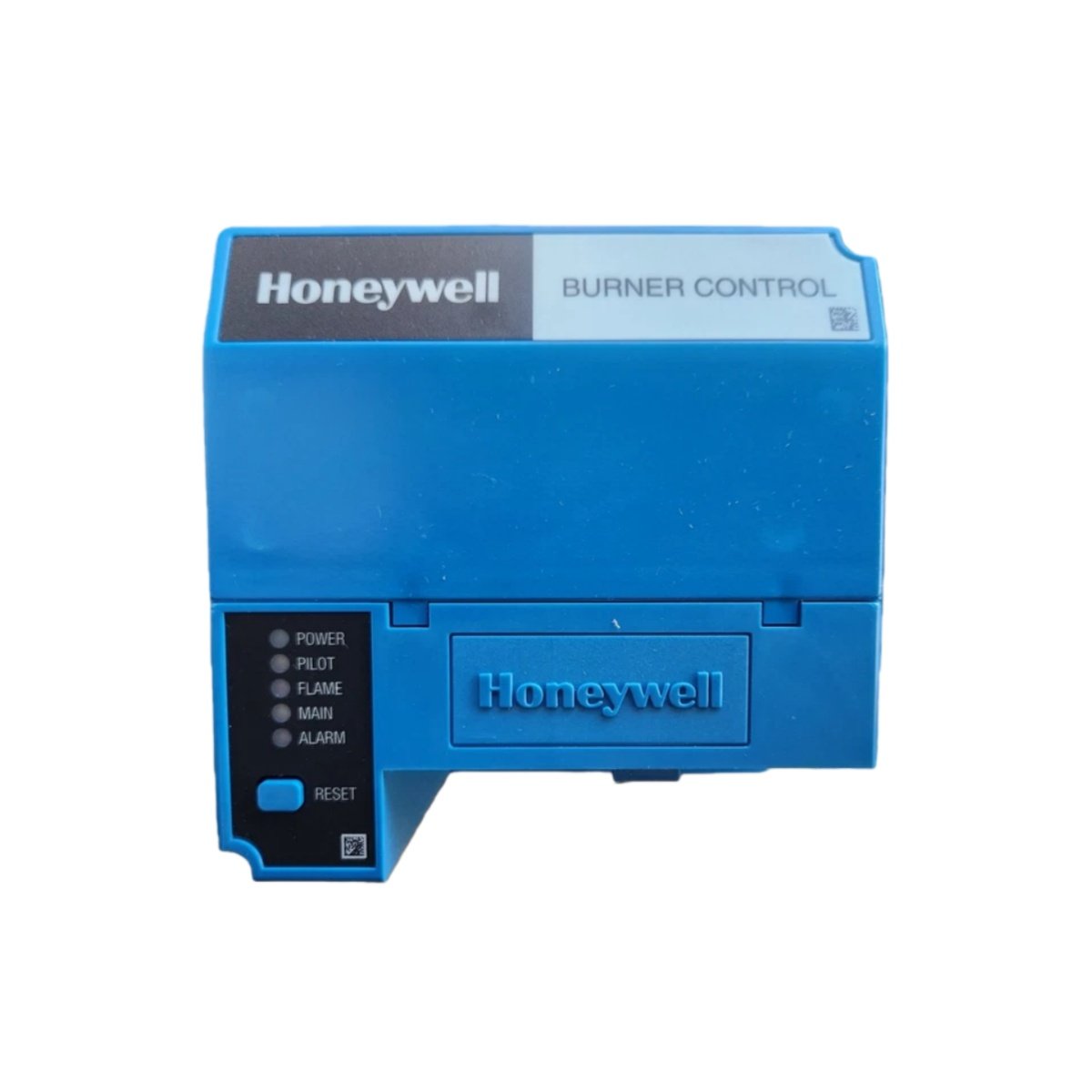

This burner control unit provides flame supervision and valve sequencing for industrial combustion systems. It belongs to the Honeywell 7800 series, delivering reliable safety control for single-burner applications. Engineers choose this module for its straightforward timing parameters and robust interlock functionality.

Technical Specifications & Mechanical Data

The Honeywell RM7830A1011 integrates flame detection, actuator control, and safety interlocks within a single relay module. Its pre-ignition sequence ensures proper system preparation before fuel admission begins. The unit includes lockout interlocks that halt operation when unsafe conditions occur.

Design and Integration

This control unit mounts onto a standard 7800 series subbase for quick installation. It features plug-in terminal blocks that simplify field wiring and replacement procedures. Consequently, technicians can perform service tasks without reterminating existing connections.

Furthermore, the RM7830A1011 incorporates lockout interlocks that enhance system safety during fault conditions. Operators can reset the unit locally after resolving any detected issues. This design reduces downtime while maintaining strict adherence to safety standards.

Performance and Reliability

The module executes its timing sequences with consistent accuracy for reliable burner startup. It stores no configuration data independently, relying instead on external wiring and jumper settings. For industrial combustion applications, Honeywell engineers designed this 7800 series unit to deliver dependable flame safety management in demanding environments.
