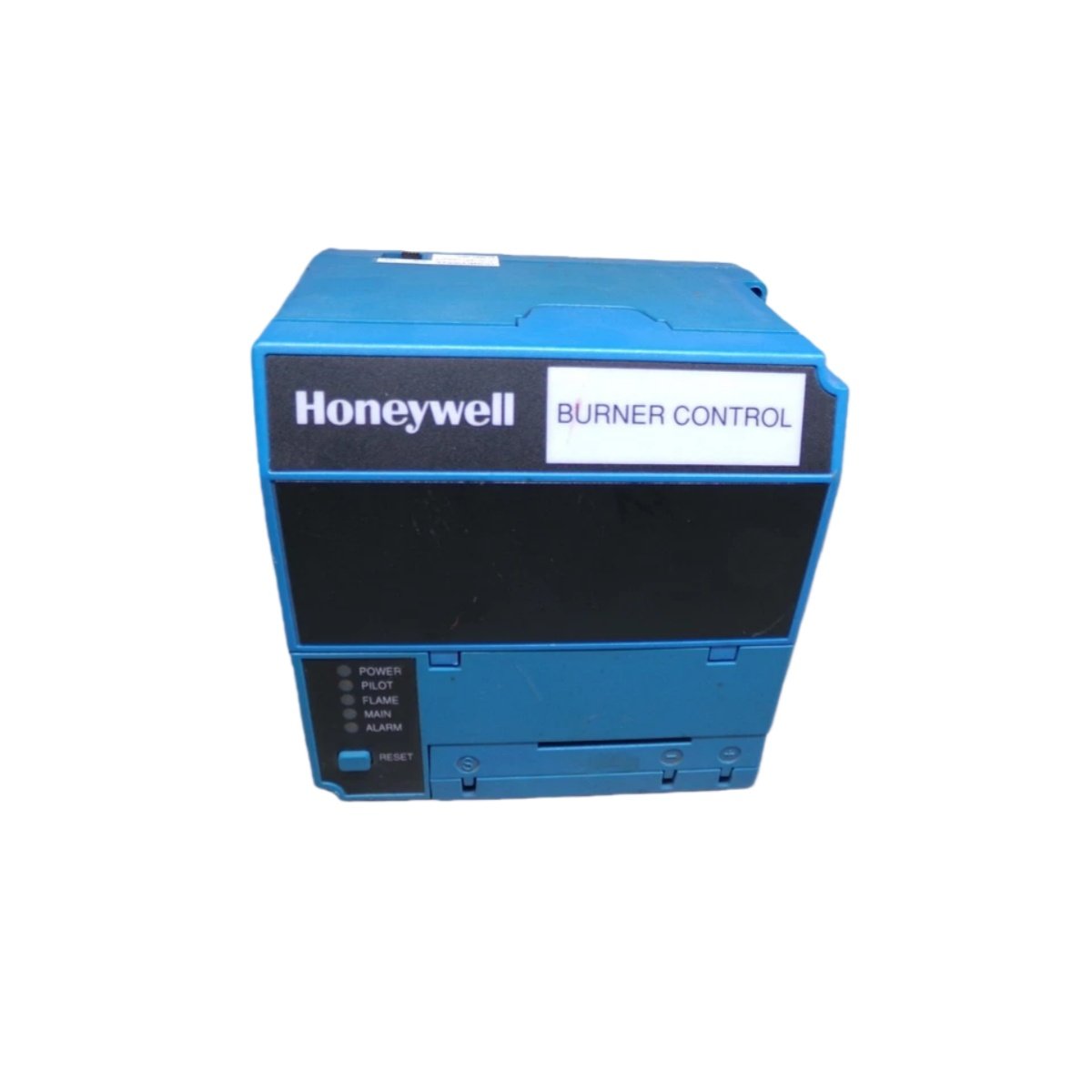

This microprocessor-based integrated burner control manages ignition sequencing and flame supervision for single-burner systems. It handles gas, oil, coal, or combination fuels with advanced safety features beyond conventional controls . The module combines automatic burner sequencing, self-diagnostics, and system status indication into one robust unit .

Sequence Control and Timing Parameters

The Honeywell RM7800M1011 operates on 120 Vac (+10/-15%) at 50/60 Hz (±10%) and consumes only 10W of power . The pilot flame establishing period lasts either 4 or 10 seconds, while the main flame period runs 10 seconds or intermittent . Preignition occurs before the purge cycle, and the prepurge duration depends on the selected ST7800A purge timer card . The module provides a 15-second postpurge after each run cycle.

Technical Specifications

User Interface and Diagnostics

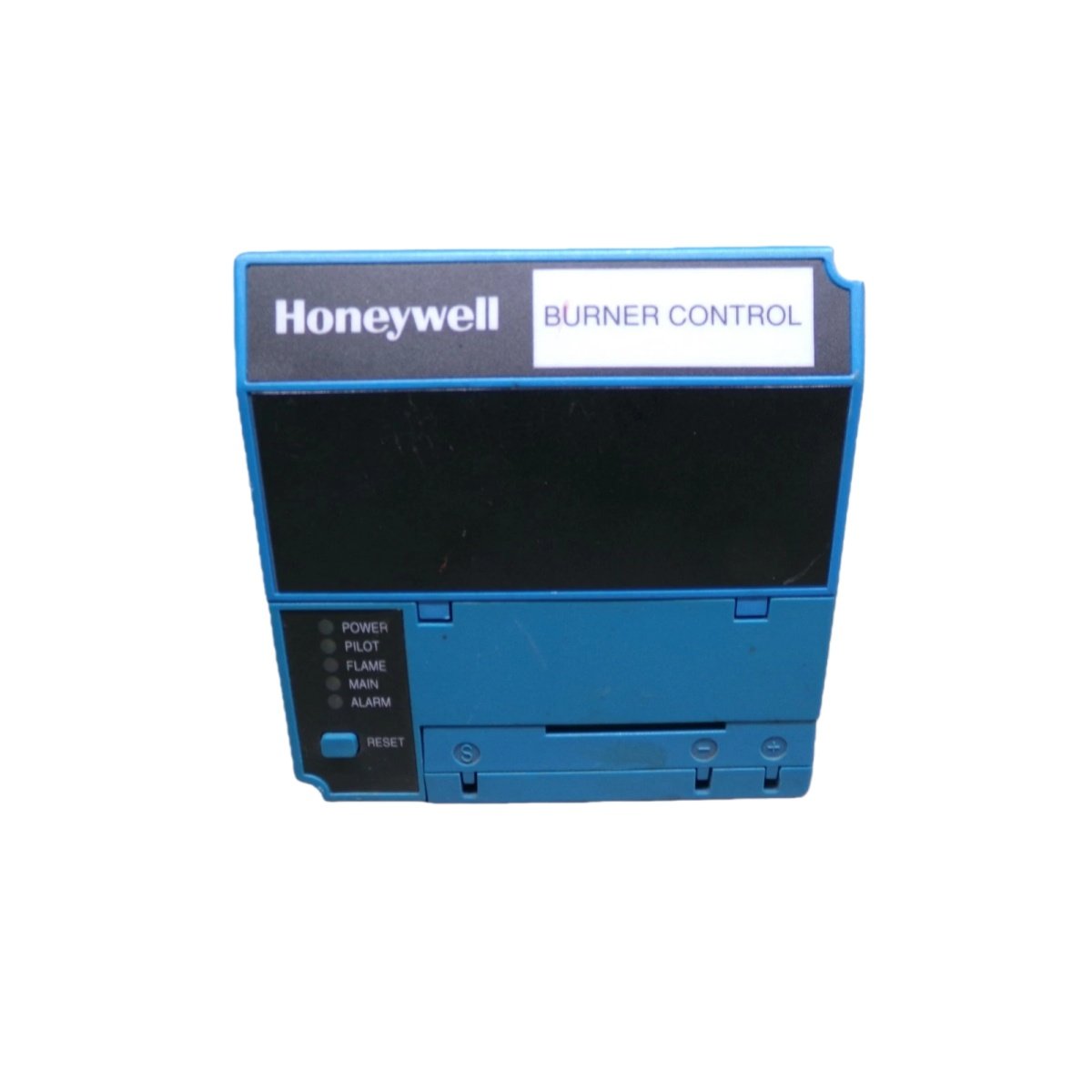

Five front-panel LEDs provide clear sequence status information for operators at a glance . A five-function Run/Test Switch simplifies startup procedures and field diagnostics . Nonvolatile memory retains history files and lockout status even after power loss occurs . The included keyboard display module enables easy system monitoring and configuration . Interchangeable plug-in flame amplifiers offer flexibility for different flame detection methods.

System Compatibility and Application

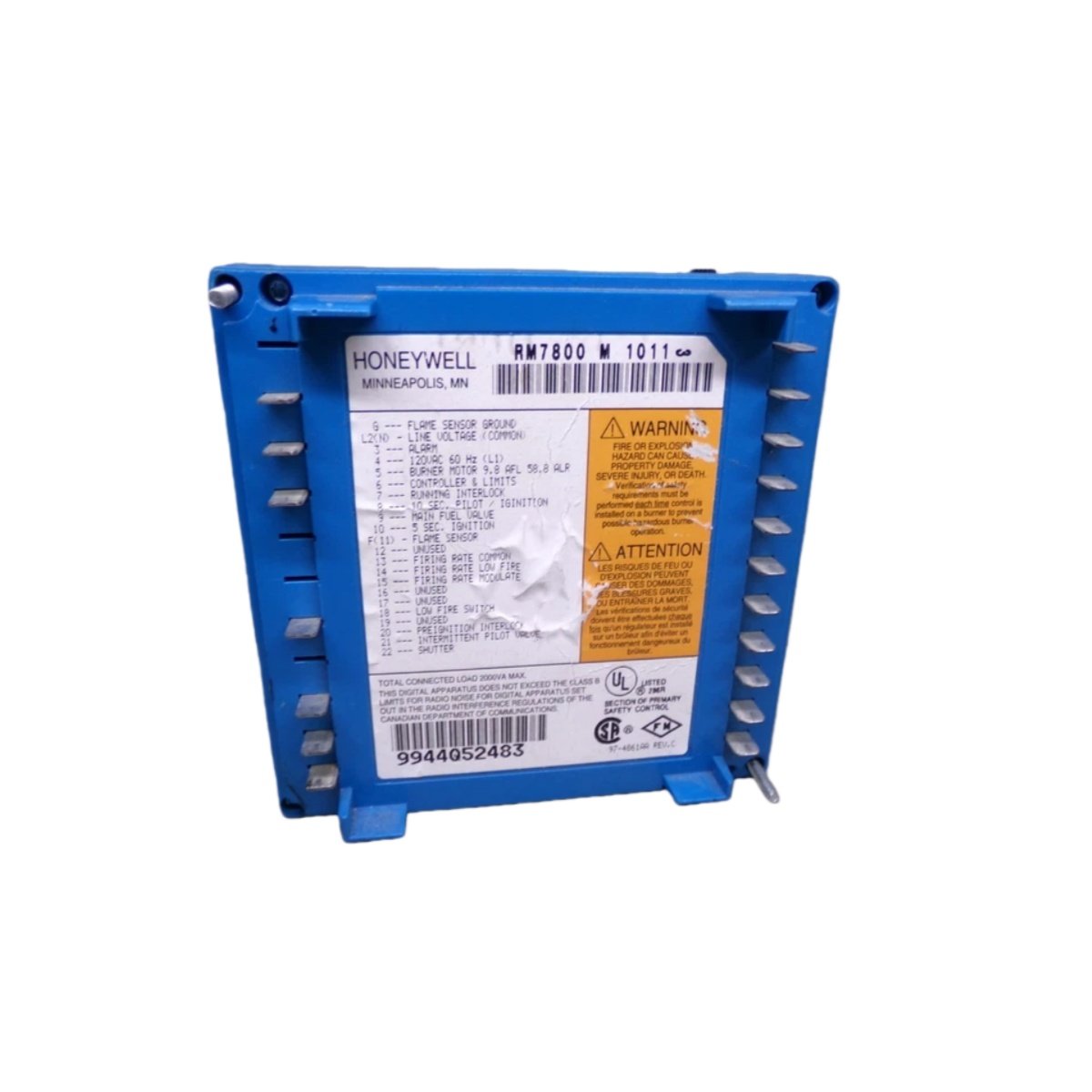

This module works with Q7800A or Q7800B universal wiring subbases and various flame amplifiers including R7847, R7848, R7849, R7851, R7852, R7861, and R7886 . It replaces older models such as the BC7000/PM720M seamlessly . Industrial boilers, commercial HVAC heating systems, and fuel-fired process equipment benefit from this control . The module’s robust safety features make it suitable for high-safety combustion environments requiring data logging and remote diagnostics .
