Overview

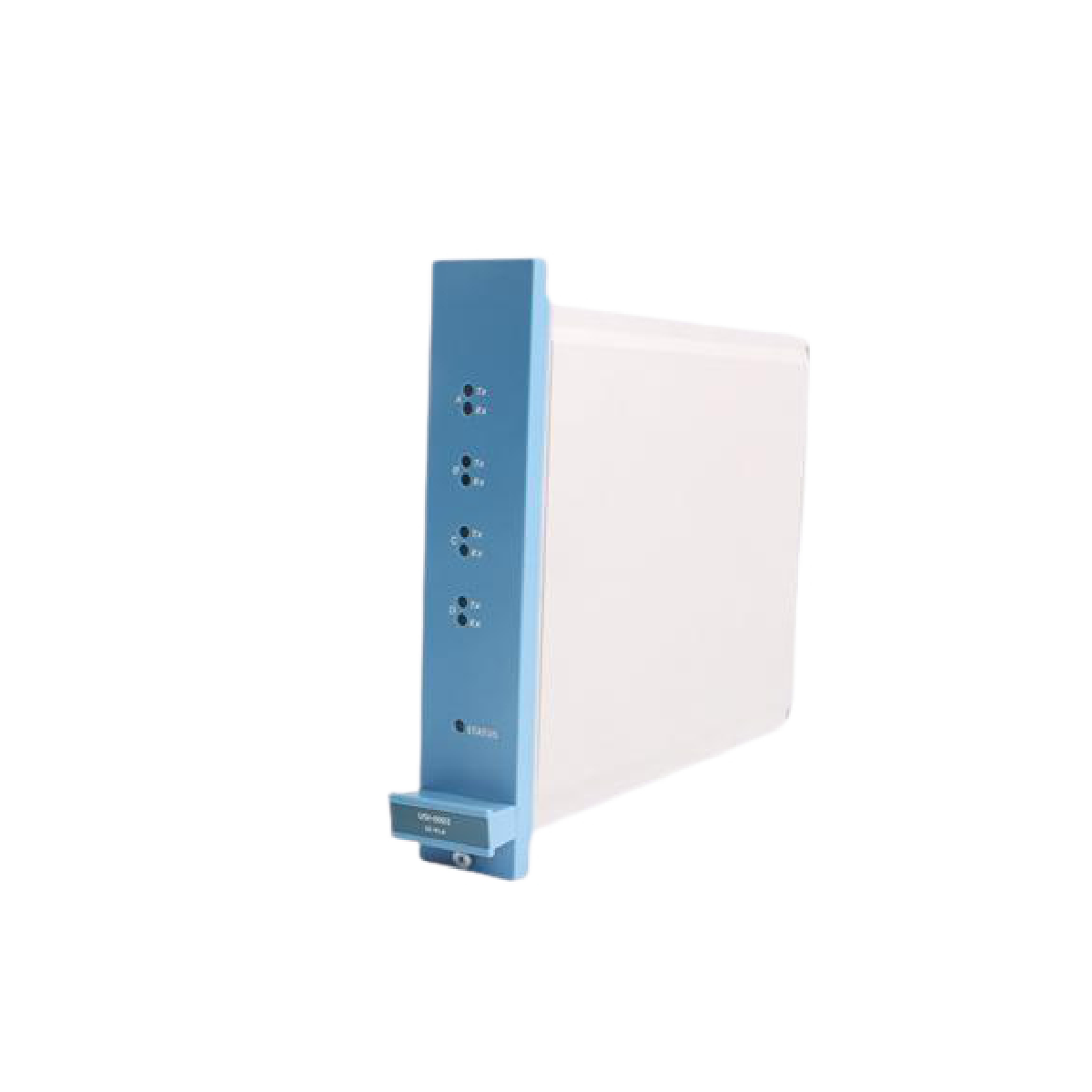

The Honeywell FC-USI-0002 V1.0 Universal Safety Interface is a high-performance module designed for critical safety applications, ensuring reliability in demanding industrial environments. It integrates galvanic isolation, self-diagnostics, and power-up tests to provide robust, fail-safe operation, making it ideal for use in high-risk safety systems.
Key Features
- Galvanic Isolation
- ≥ 2.5 kVDC between 5 VDC and Ethernet signal
- ≥ 1.5 kVDC between Ethernet signal and casing
- ≥ 1.5 kVDC between 5 VDC and casing
- Interrupt Handling
- Memory error triggers an interrupt to Quad Processor Pack for immediate response.
- Power-Up Self-Test
- Tests processor registers, RAM, exception handling, and software integrity to ensure the system is fully functional from power-up.
Technical Specifications
| Parameter | Specification |
|---|---|
| Type Number | FC-USI-0002 V1.0 |
| Approvals | CE, TUV, UL, CSA, FM (pending) |
| Operating Temperature | -5°C to +70°C (+23°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 10% to 95% (non-condensing) |
| 5 V Supply Voltage | 5 VDC ±5% |
| 5 V Supply Current | Max. 1.2 A |
| Dimensions (H × W × D) | 176 × 35.2 × 212 mm (6.93 × 1.4 × 8.35 in) |
| Weight | 0.7 kg |
Applications
This module is perfect for safety-critical systems where high reliability, robust isolation, and real-time diagnostics are paramount. It supports automated safety functions, safety system controllers, and industrial process safety monitoring, making it suitable for power generation, manufacturing, and chemical processing industries.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 4470 × 894 × 5385 mm |
