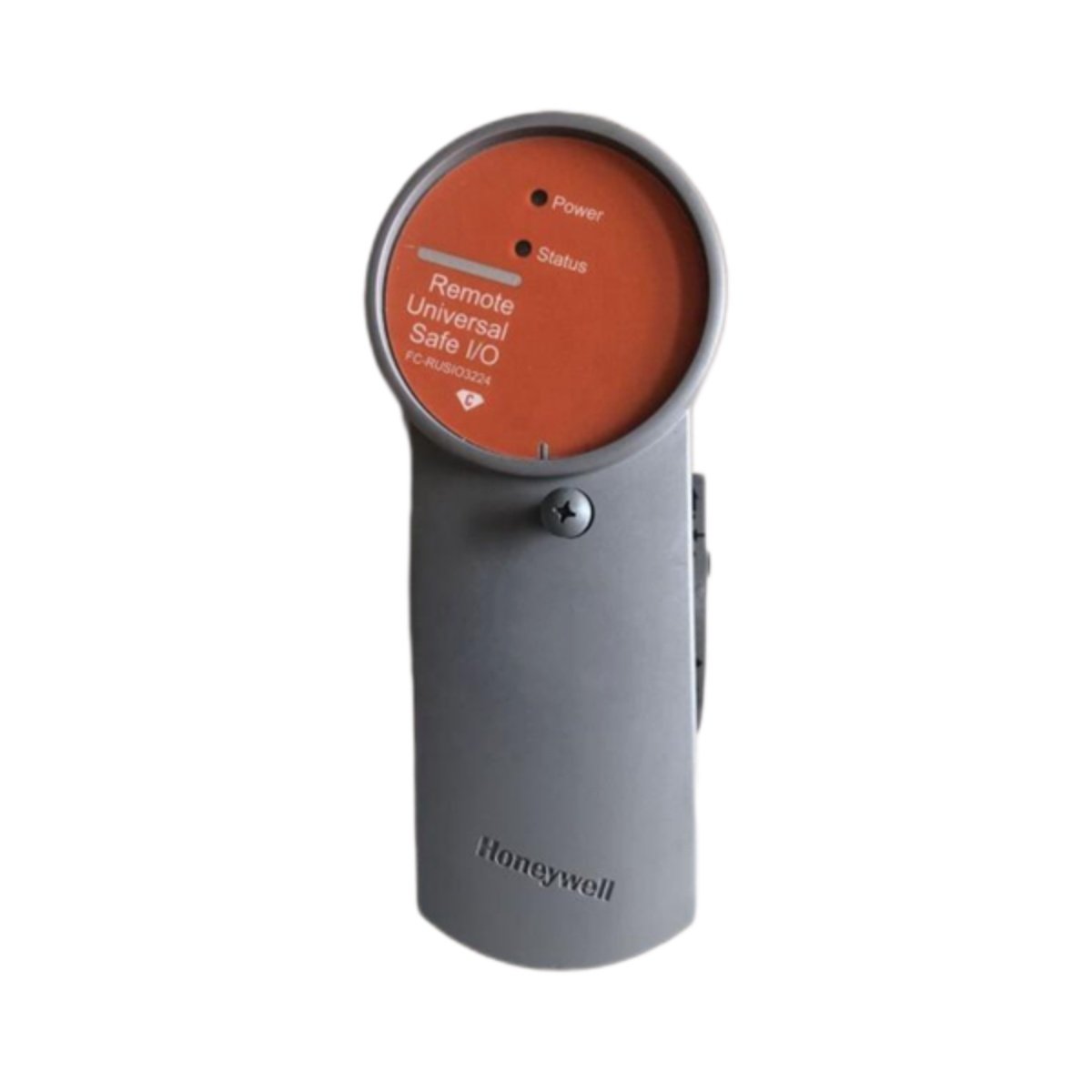

The Honeywell FC-RUSIO-3224 serves as a remote I/O interface for Experion systems. This module connects field devices to the main controller efficiently. It supports both digital and analog signals in one compact unit. You will find this RIO module in distributed control architectures.

Technical Specifications Overview

This SM RIO module offers thirty-two universal input/output channels. Each channel handles 0–20 mA, 4–20 mA, or 0–10 V signals. The Honeywell FC-RUSIO-3224 also reads thermocouple and RTD inputs directly. A built-in 24 V DC loop powers external two-wire transmitters. Consequently, you save space on additional power supplies.

Internal Layout and Components

The Honeywell FC-RUSIO-3224 contains one main PCB with 112 individual parts. Key components include thirty-two optocouplers for signal isolation. The module also features two large capacitors storing 2200 µF of energy. This energy storage handles brief brownouts up to 5 milliseconds. Furthermore, a built-in microcontroller manages all signal conversions locally.

Physical Interfaces and Mounting

You will find one front-facing 50-pin D-sub connector on this module. This connector accepts standard Honeywell termination cables. Additionally, a green LED indicates normal module operation. A red LED will flash if a channel fault occurs. Four mounting holes secure the Honeywell FC-RUSIO-3224 to a DIN rail backplate.

Installation and Reliability Tips

Install this SM RIO module inside a protected control cabinet. Maintain a 30 mm gap above and below for airflow. The module supports hot swapping without powering down the system. Therefore, you can replace a faulty unit without stopping production. This design reduces mean time to repair significantly.
