Key Technical Specifications

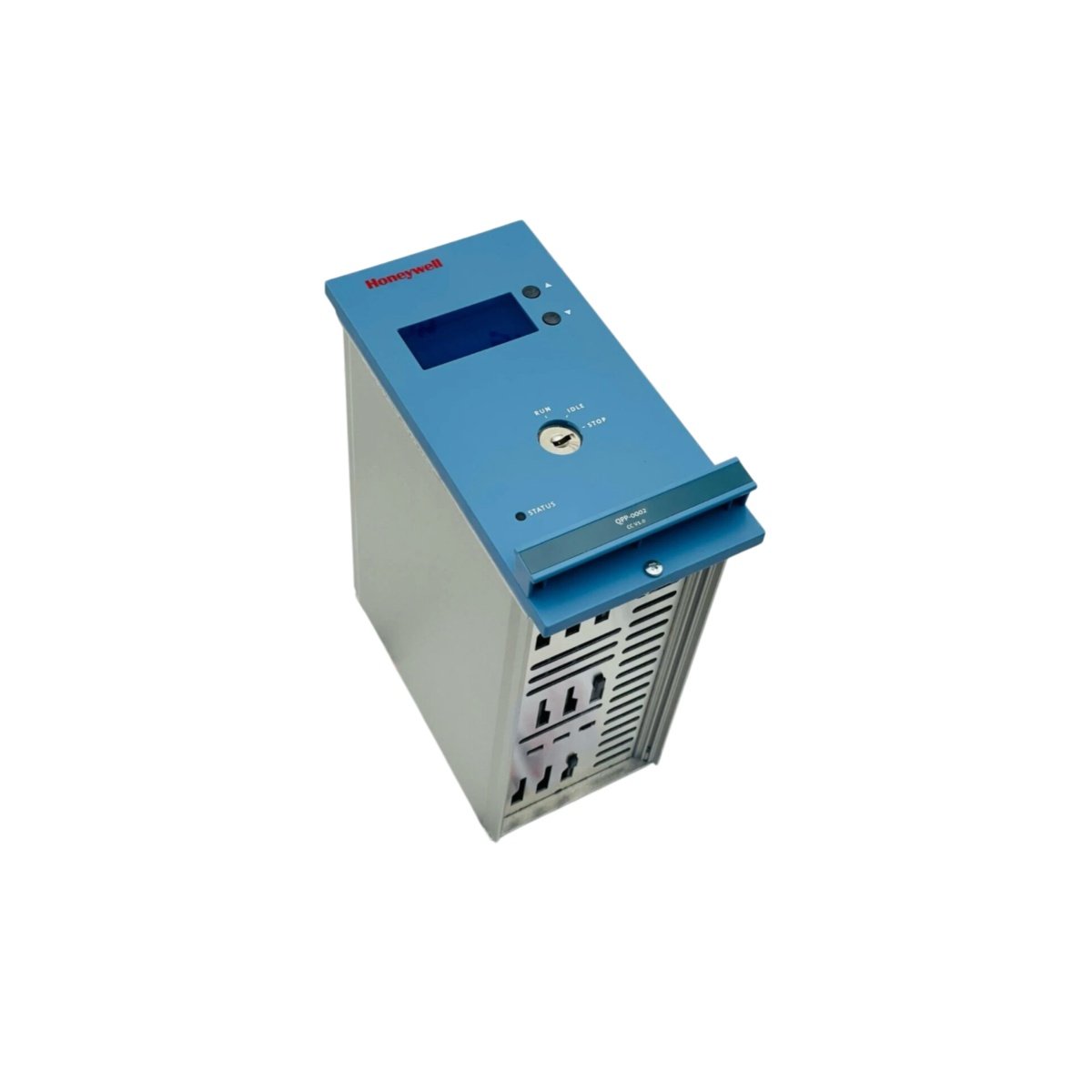

This Honeywell FC-QPP-0002 module operates from a 24V DC power supply. It runs four independent processor cores for high-performance control. The unit measures 25 cm in length, 18 cm in width, and 5 cm in height. Its total weight reaches 0.8 kg without any packaging materials.
The Honeywell FC-QPP-0002 includes 4 CPU cores with 1 GB of shared RAM. Additionally, it features one backplane connector for system integration. A single 4-pin terminal block connects the DC power input. The module contains 4 processors, 2 memory banks, 1 FPGA, 6 voltage regulators, 4 status LEDs, 1 battery, and 28 resistors.
| Parameter | Value |
|---|---|
| Power Supply | 24V DC ±10%, 500mA |
| Processor Cores | 4 (32-bit RISC) |
| Clock Frequency | 200 MHz per core |
| RAM | 1 GB SDRAM (shared) |
| Flash Memory | 128 MB (non-volatile) |
| Dimensions (L x W x H) | 25 cm x 18 cm x 5 cm |
| Weight | 0.8 kg |
| Backplane Interface | 50-pin DIN |
| Power Connector | 4-pin terminal block |
| Status LEDs | 4 units (Power, Run, Fault, Comm) |
| Real-Time Clock | 1 unit (battery-backed) |
| Processors | 4 units |
| Memory Banks | 2 units |
| FPGA | 1 unit (I/O mapping) |
| Voltage Regulators | 6 units |
| Battery | 1 unit (lithium, 3V) |
| Resistors | 28 units |
| Capacitors | 24 units |
| Energy Storage | 470 µF at 35V |
Honeywell FC-QPP-0002 stores energy using two electrolytic capacitors. Together, they provide 470 µF at 35V rating for processor hold-up. This energy storage maintains operation during 30 millisecond power interruptions. Therefore, the module prevents data corruption during brief voltage sags.
Design and Integration
This quad processor module uses eight-layer PCB construction with controlled impedance traces for high-speed signals. Consequently, the Honeywell FC-QPP-0002 operates reliably from 0°C to +55°C ambient temperature.
For installation, you need M3 screws for the four mounting holes. The module draws 400 mA typical current from the 24V DC supply. The backup battery retains CMOS settings for up to 5 years. We recommend using forced air cooling for high-temperature environments.
Practical Application
This quad processor module executes real-time control algorithms for safety-critical systems. It runs redundant calculations across multiple cores for fault tolerance. The Honeywell FC-QPP-0002 communicates with I/O modules via the backplane. Therefore, it serves as the central computing unit for Honeywell Safety Manager platforms.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
