Product Overview

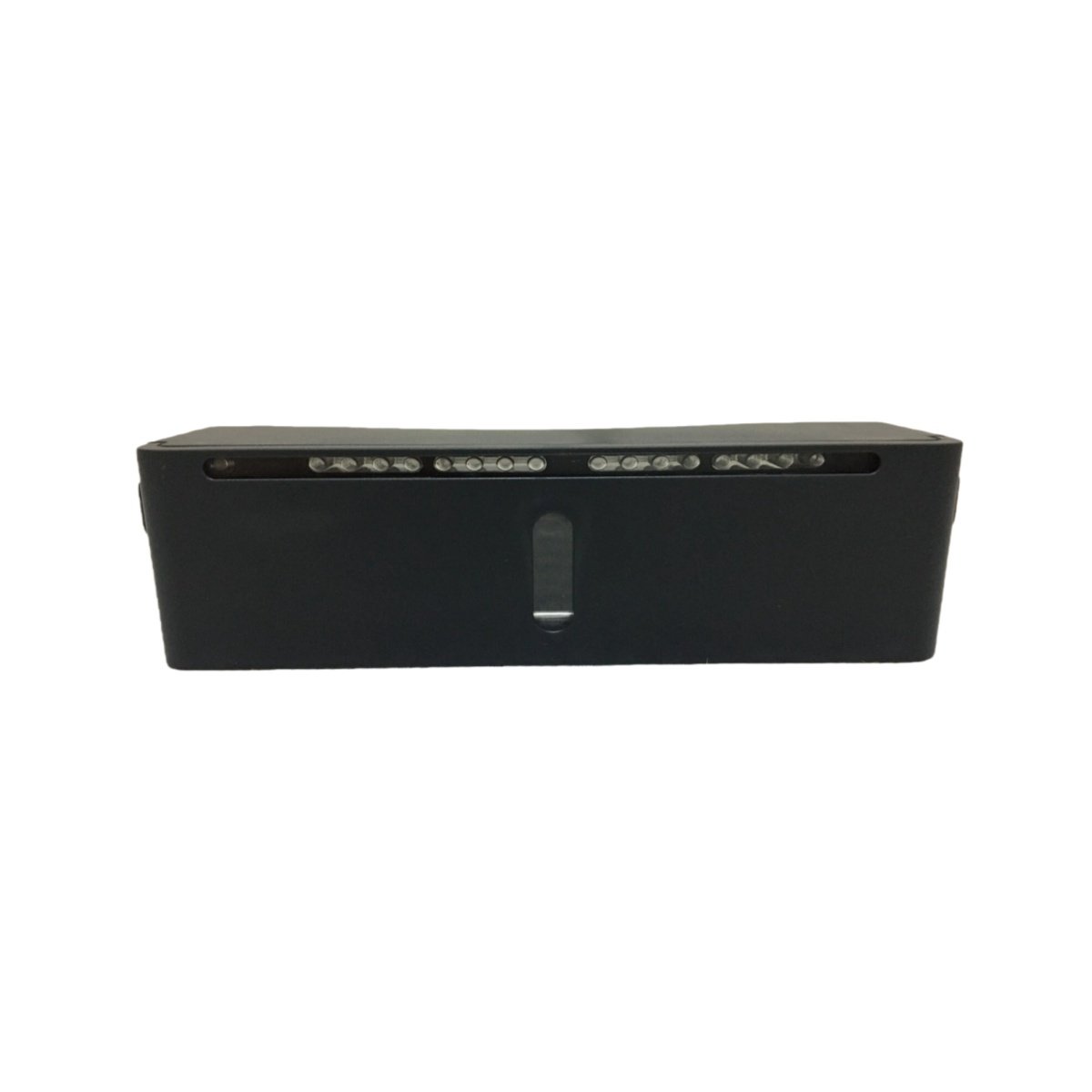

The 900TEK-0200 provides the essential field wiring interface for the ControlEdge HC900 automation platform . This 20-position Euro style terminal block housing facilitates secure, organized connections between field sensors, actuators, and HC900 I/O modules . It serves as a ruggedized termination point that ensures signal integrity and simplifies maintenance tasks .
Key Specifications
| Parameter | Specification |
|---|---|
| Model | 900TEK-0200 |
| Type | Low Voltage Terminal Block |
| Position Count | 20-Position |
| Terminal Style | Euro Style (Screw-down) |
| Housing Color | Black |
| Maximum Voltage | 24 V DC |
| Maximum Current | 10 A |
| Operating Temperature | -20°C to +60°C |
| Installation | DIN Rail or Panel Mount |
| Compatibility | Honeywell HC900 I/O Modules |
| Housing Material | Durable Plastic |
| Country of Origin | USA |
Hardware and Compatibility

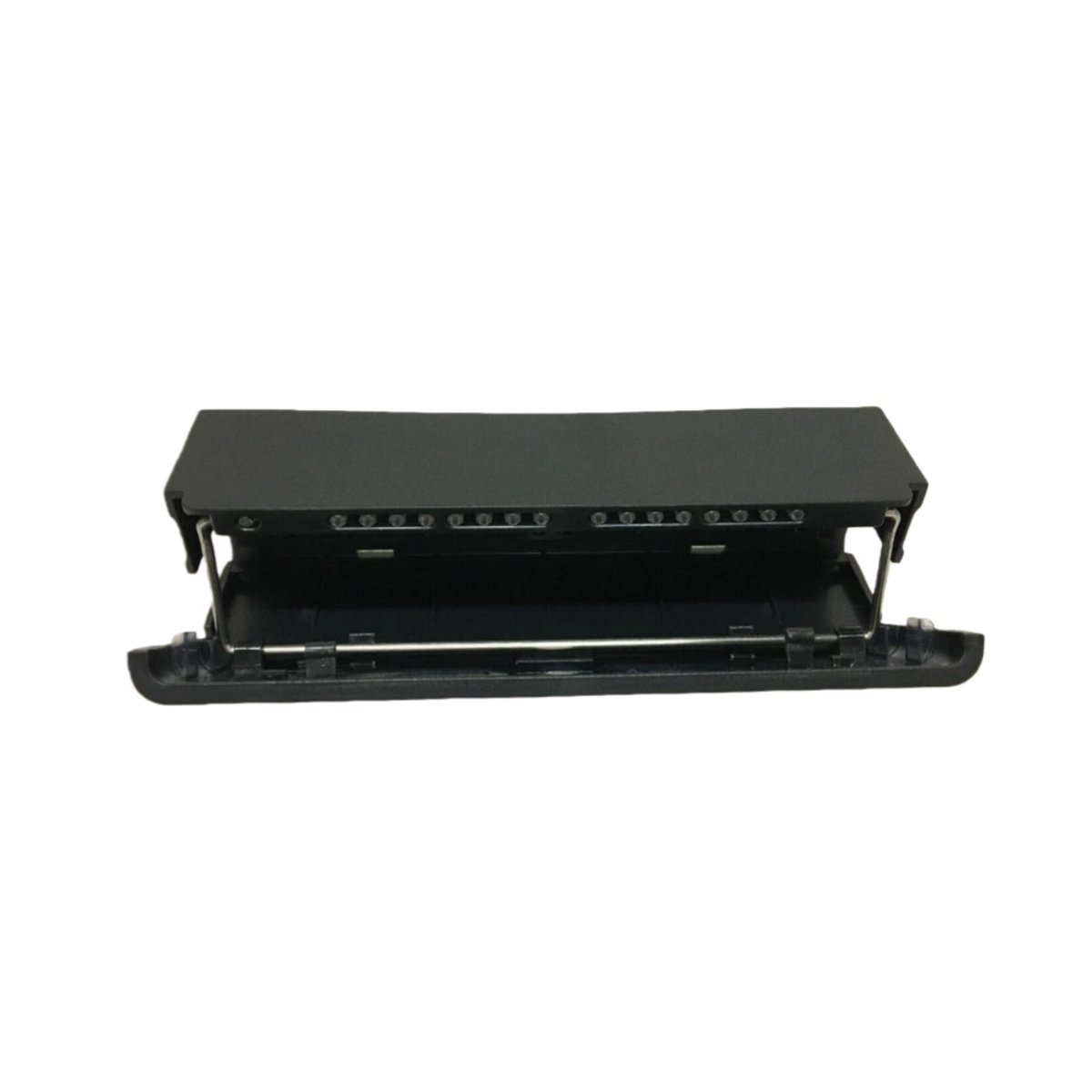

The 900TEK-0200 terminal block mounts easily to a standard DIN rail or panel . This design simplifies integration into new and existing control cabinets. The black housing contains twenty screw-type terminals that accept multiple conductors. This component requires ordering in multiples of six units .
Physical Characteristics
The unit measures approximately 150mm in length, 40mm in width, and 40mm in height . The shipping package weight comes to approximately 1.5 kg . The durable plastic housing resists mechanical damage and withstands demanding industrial environments .
Operational Guidelines
The terminal block operates reliably within a temperature range spanning -20°C to +60°C . High-quality insulation prevents short circuits and current leakage during normal operation . This component is not the I/O module itself. You must purchase the HC900 I/O module separately . Using genuine Honeywell parts ensures proper alignment and reliable electrical conductivity .
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
