Technical Overview

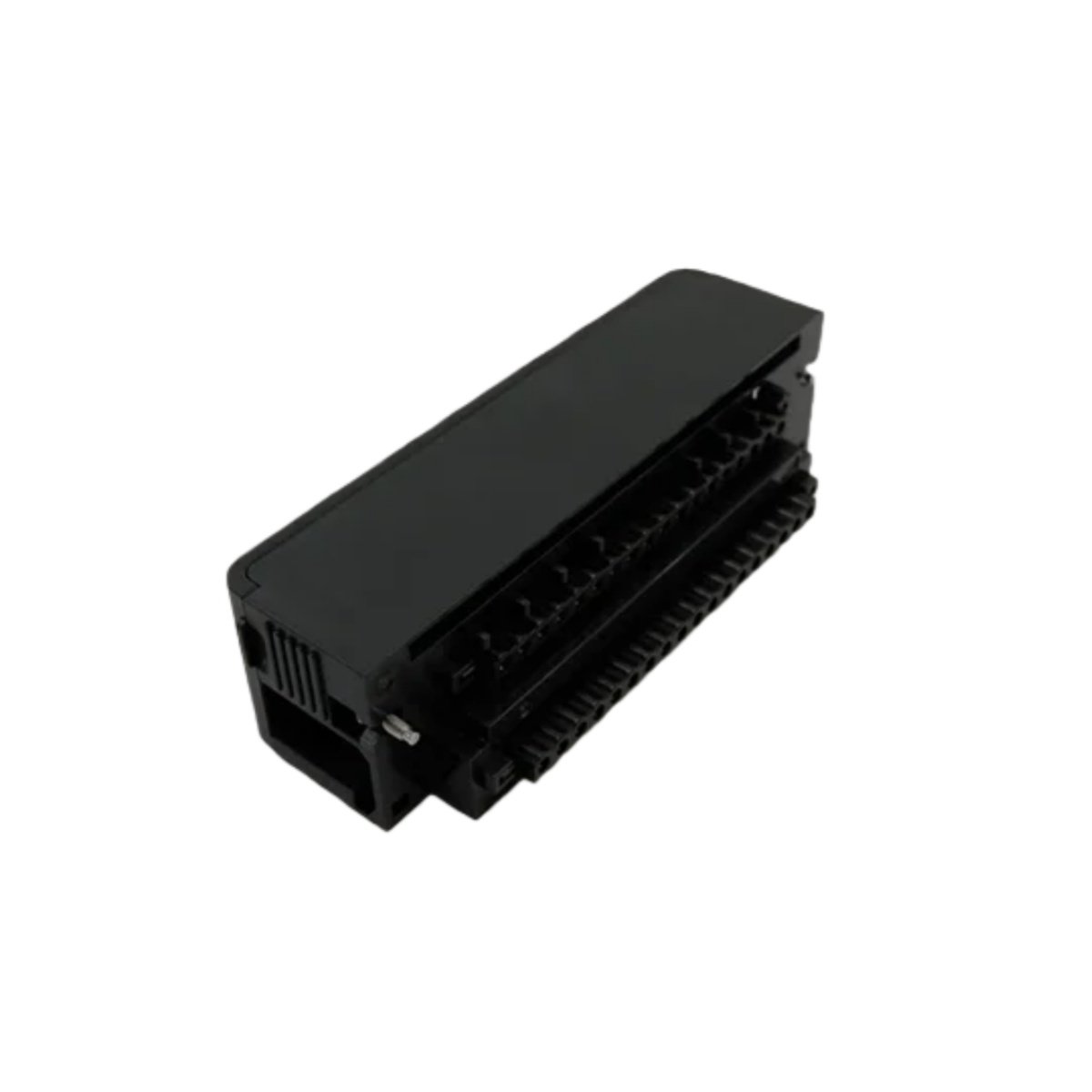

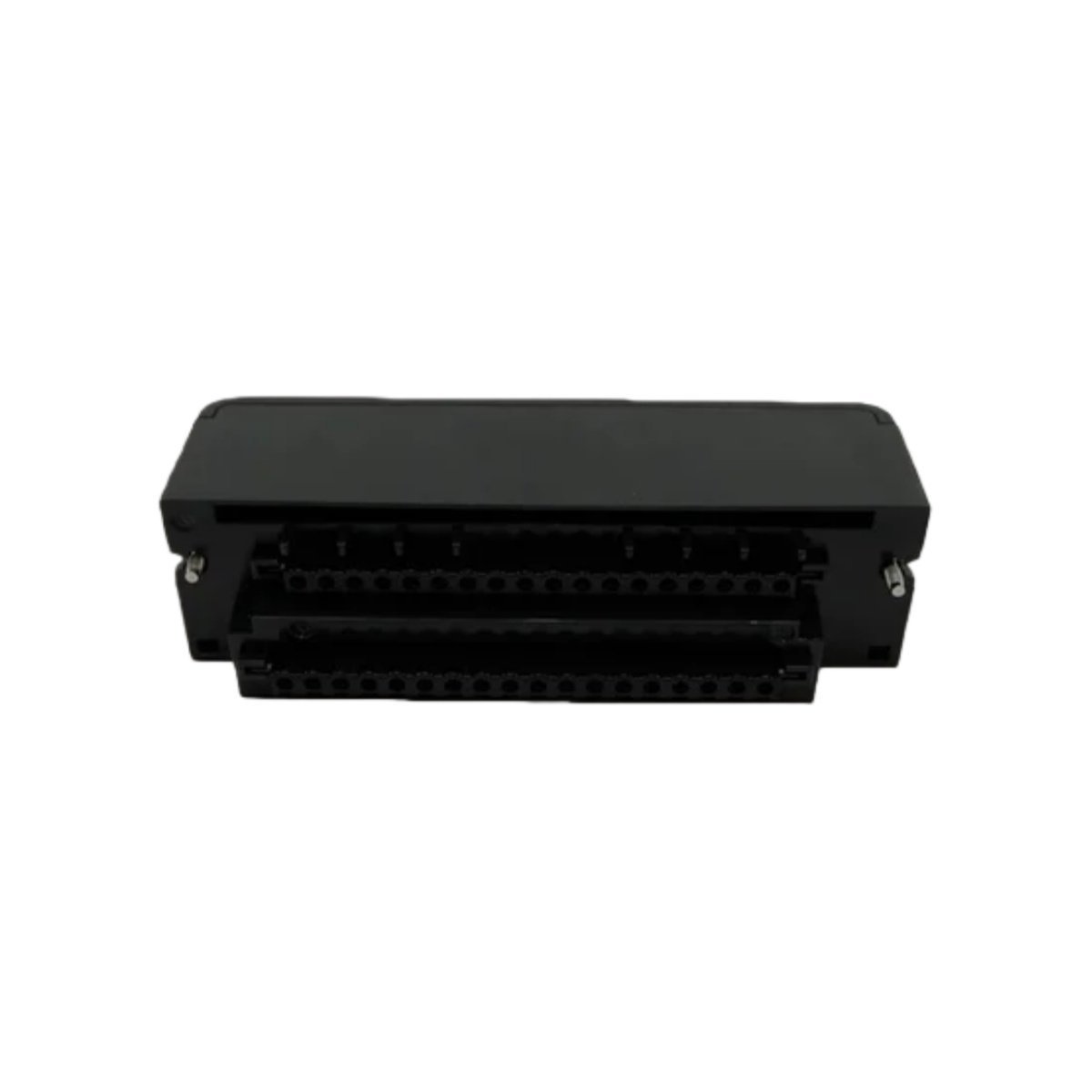

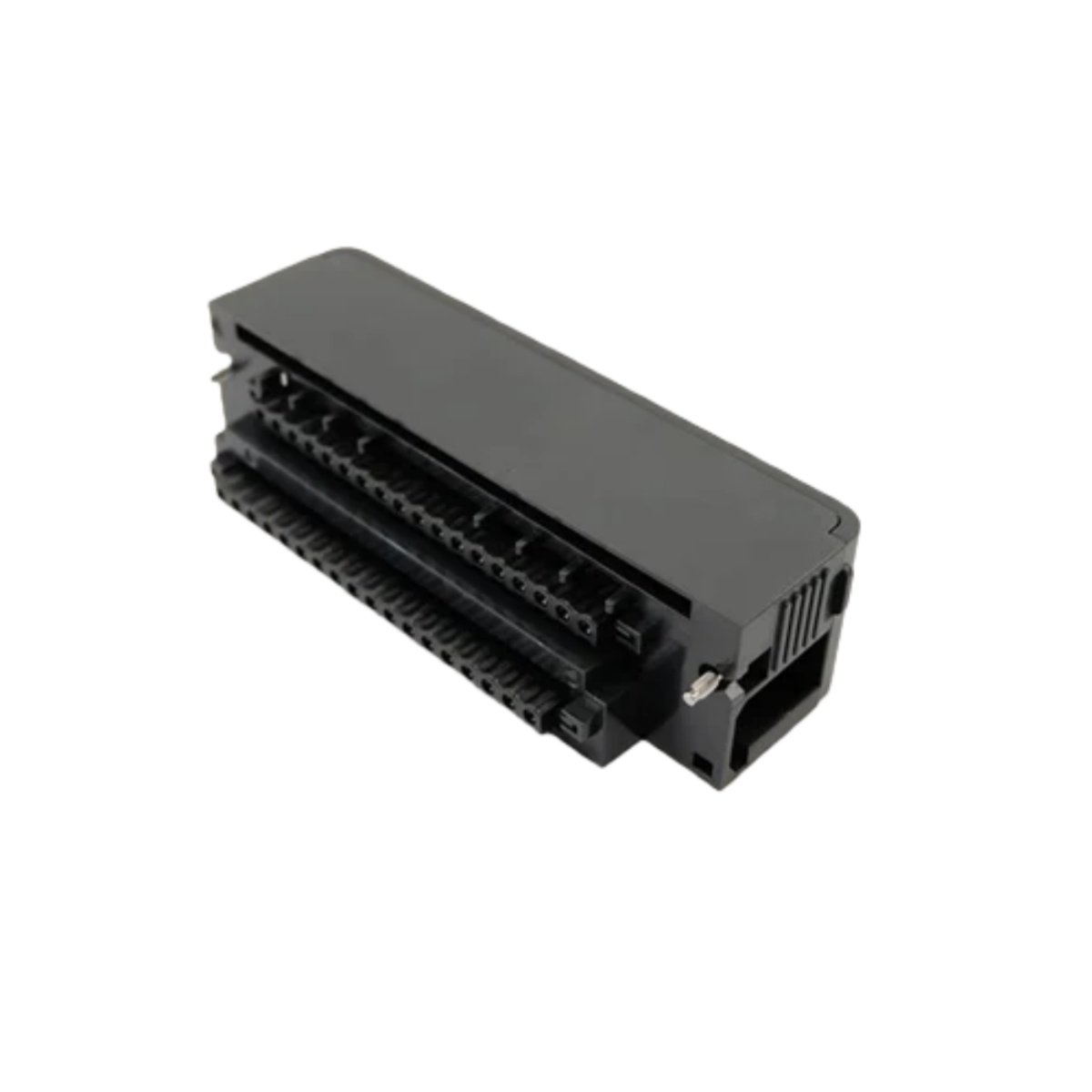

The Honeywell 900TCK-0200 is a high-density Euro-style terminal block designed for the ControlEdge HC900 I/O platform . It provides 36 screw-type connection points for organizing low-voltage control signals within industrial automation panels . This module provides clear voltage separation with color-coded terminals, thereby simplifying panel wiring and reducing installation errors . It requires ordering in multiples of five units per industry practice .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell Process Solution (PMC) |
| Model Number | 900TCK-0200 |
| Product Type | High-Density Euro-Style Terminal Block |
| Channel Count | 36 positions |
| Voltage Rating | 24 VDC nominal (supports up to 300V AC/DC) |
| Current Rating | 10A |
| Wire Size | AWG 20–14 (0.5 mm² to 2.5 mm²) |
| Mounting Type | DIN rail |
| Housing Material | Flame-retardant plastic with brass/copper alloy contacts |
| Color Coding | Red (high voltage), Black (low voltage) |
| Dimensions | 111 x 33 x 36 mm |
| Weight | Approximately 0.39 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Certifications | CE, UL508 |
| Country of Origin | USA |
Key Features
High-Density 36-Channel Design – This terminal block accommodates many field connections within a compact footprint .
DIN Rail Mounting – The simple and secure mounting method ensures fast installation and modular replacement .
Clear Voltage Separation – Color-coded terminals distinguish between high and low voltages, thereby reducing wiring errors .
Robust Industrial Construction – Flame-retardant material and gold-plated contacts deliver long-term durability and reliable signal transmission .
Seamless System Integration – This block is fully compatible with Honeywell ControlEdge HC900 I/O modules, ensuring a cohesive automation solution .
Applications
The Honeywell 900TCK-0200 is ideal for process control, manufacturing, and critical system monitoring where high-density wiring is essential . It also serves power distribution and signal transmission in distributed control architectures .
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
