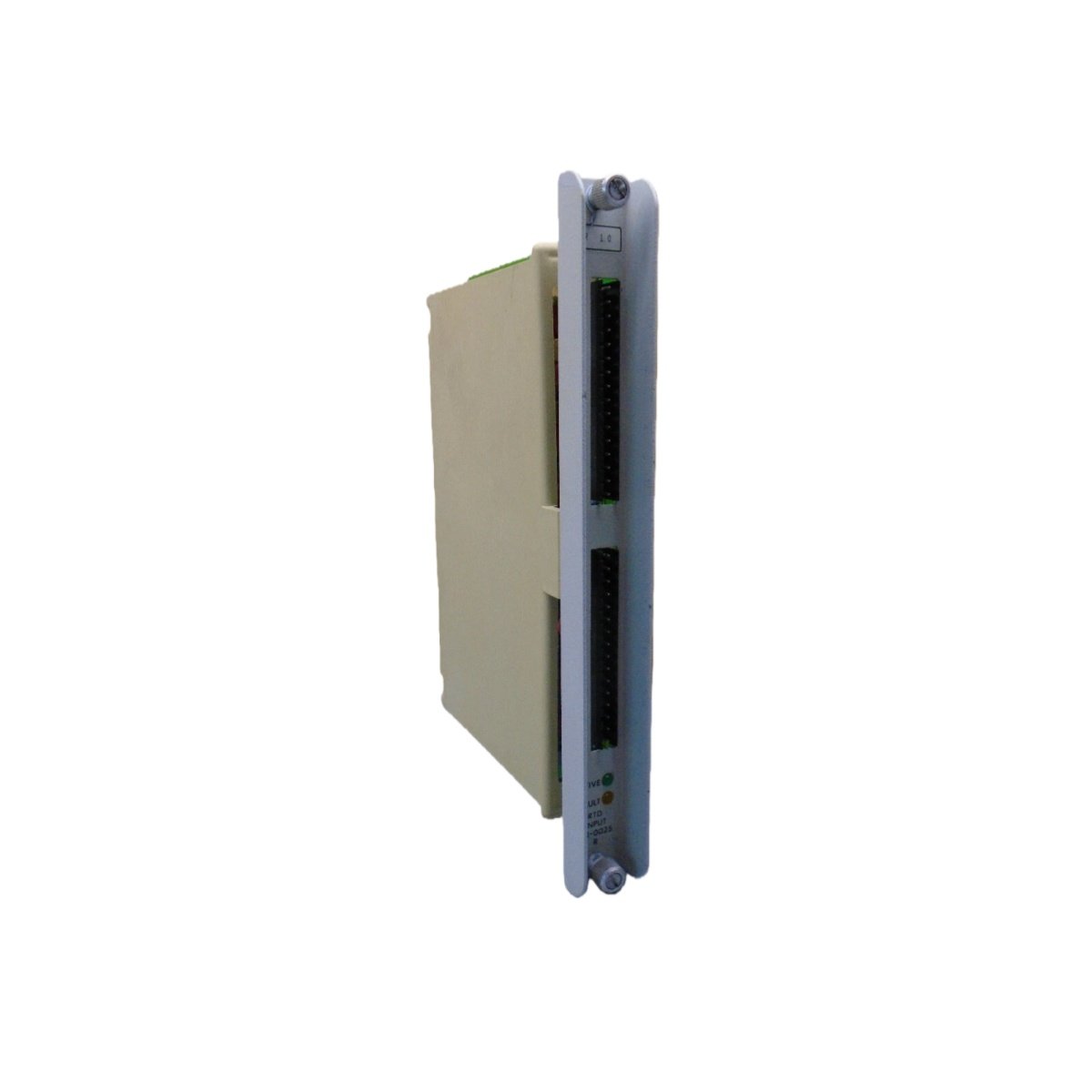

This RTD input module provides precise temperature measurement for Honeywell distributed control systems. It accepts platinum and nickel resistance temperature detectors across various industrial applications. The module converts resistance readings into digital temperature values for process monitoring and control.

Input Configuration and Measurement Capabilities

The Honeywell 621-0025 features 8 isolated RTD input channels for multi-point temperature sensing applications. It supports Pt100 (100Ω at 0°C) and Ni100 (100Ω at 0°C) sensor types with high accuracy. The module covers a temperature range from -200°C to +850°C for Pt100 sensors. For Ni100 sensors, the range spans from -60°C to +250°C for most applications. Three-wire and four-wire connection configurations compensate for lead resistance automatically.

Technical Specifications

Lead Compensation and Signal Processing

The module applies a constant current source of ≤1 mA through each RTD element. It measures the resulting voltage drop and calculates the resistance value precisely. Lead wire resistance up to 20Ω per lead does not affect measurement accuracy due to automatic compensation. Digital filtering reduces noise on input signals for stable readings. The module transmits processed data to the host controller via the parallel backplane bus.

Channel Protection, Diagnostics, and Application Use

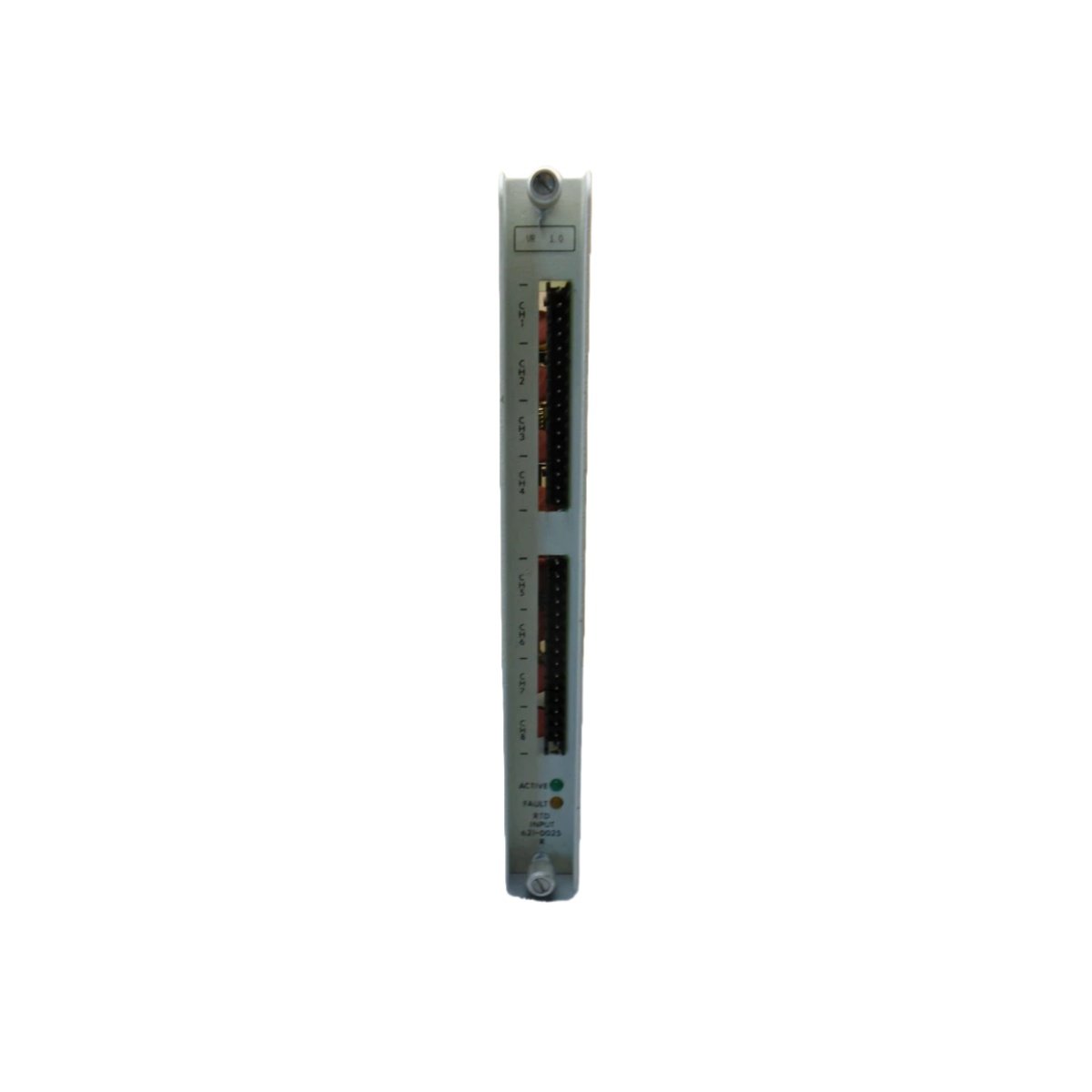

Status LEDs indicate channel activity, faults, and open-circuit detection for quick troubleshooting. The module detects sensor open-circuits, short-circuits, and out-of-range conditions automatically. Application areas include temperature monitoring in chemical reactors and distillation columns. Power generation facilities use this module for bearing temperature monitoring on turbines and generators. Food processing, pharmaceutical, and HVAC systems also benefit from its precise temperature measurement. The module’s compact design saves valuable rack space in dense control cabinets.
