Technical Overview

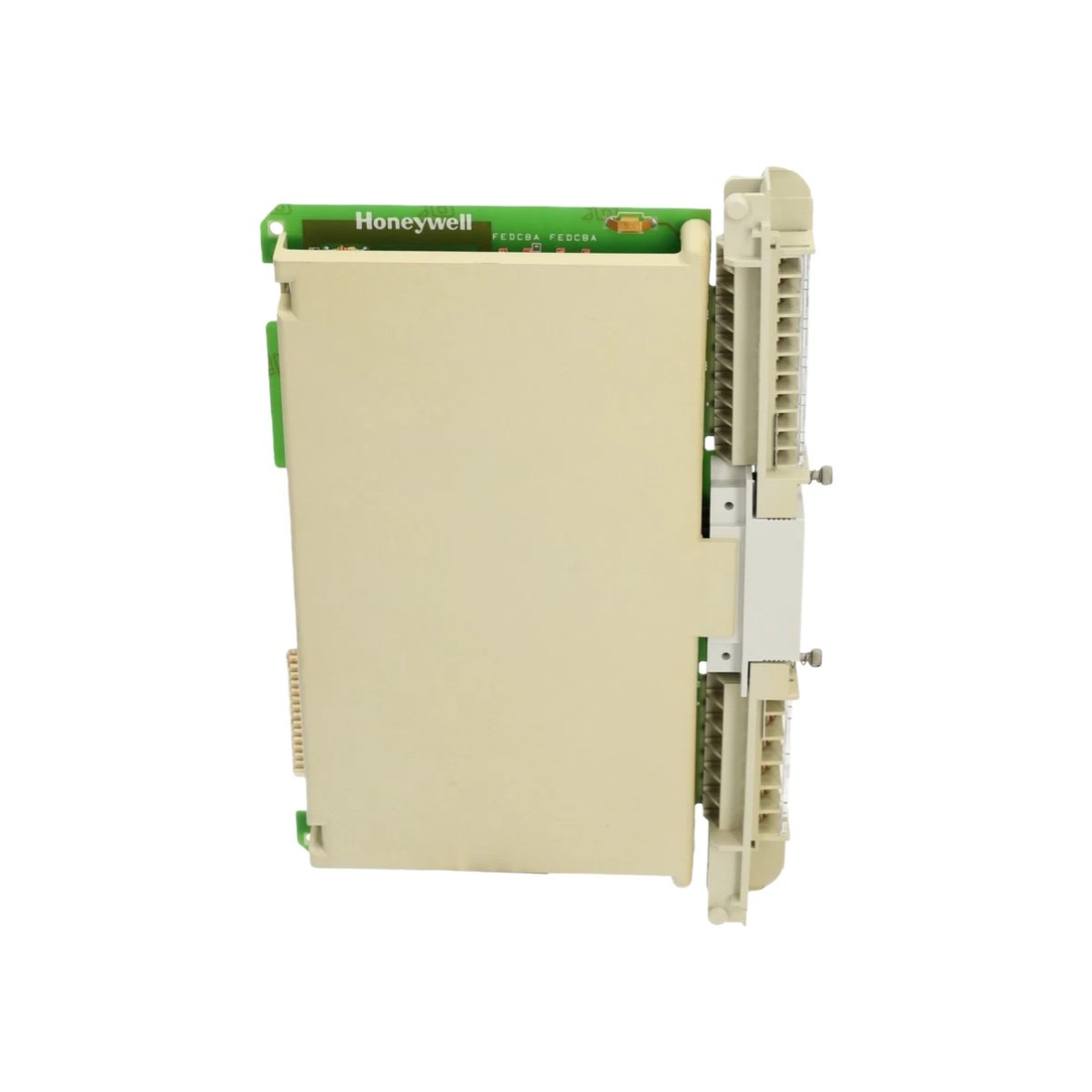

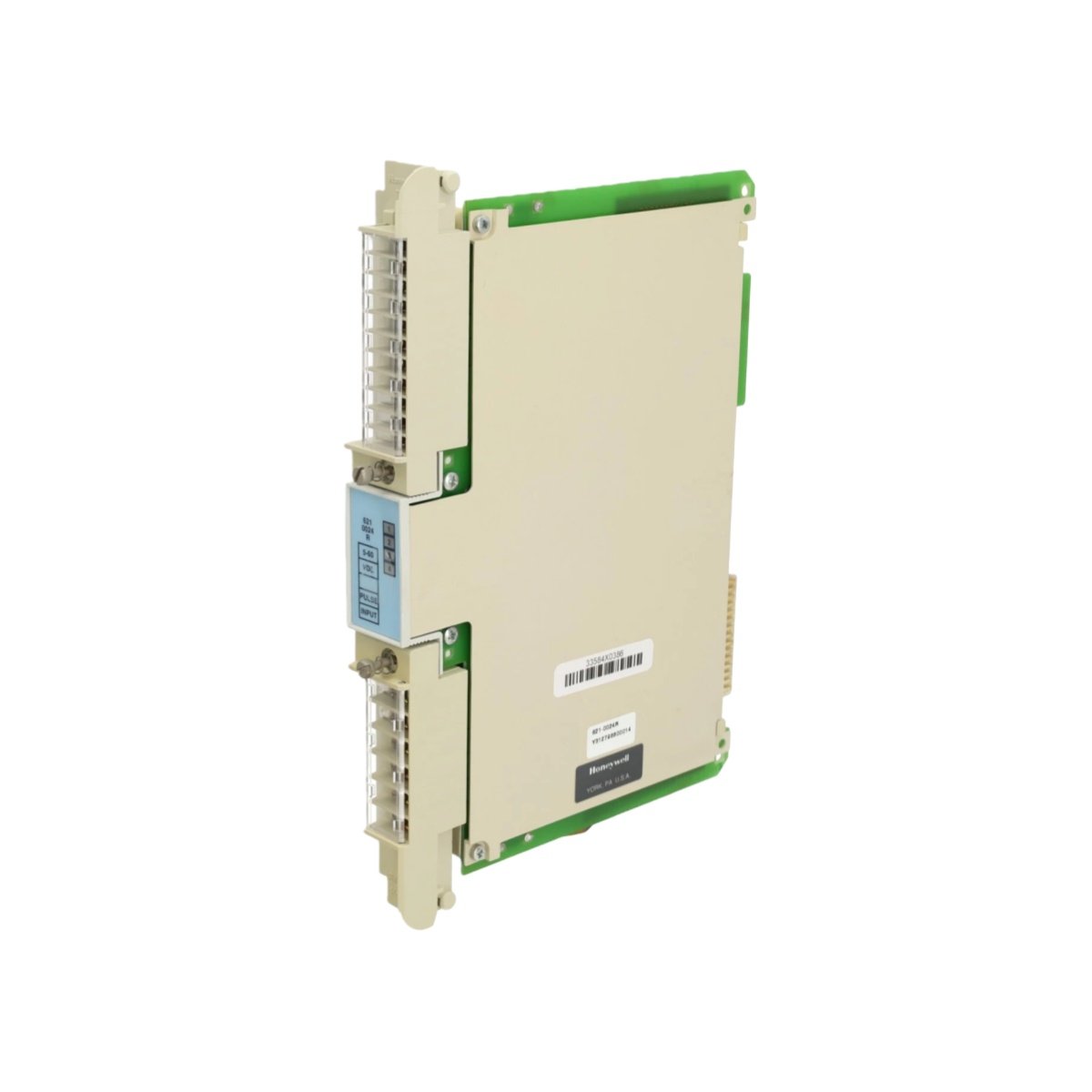

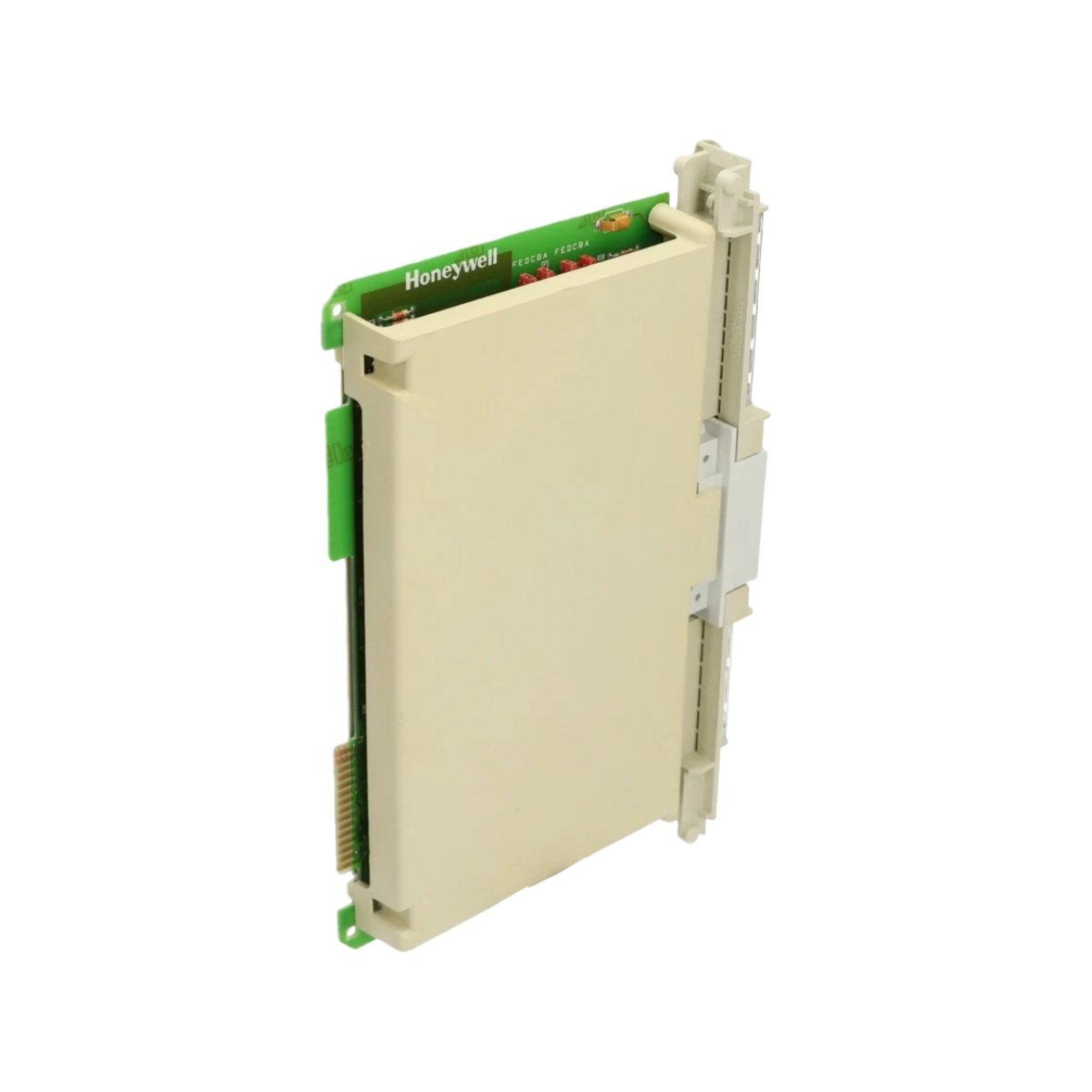

The Honeywell 621-0024 is a high-density analog input module engineered for the IPC 620 series programmable controller platform. This unit converts analog signals from field transmitters into digital values for the processor. It features 4 differential analog input channels with 14-bit resolution. Each channel accepts 4-20 mA current signals or 0-5 VDC voltage signals. The module provides optical isolation between field and logic circuits. A removable terminal strip simplifies field wiring and reduces downtime during replacement procedures. Each channel includes its own analog-to-digital converter for simultaneous sampling. This design ensures accurate and synchronized data acquisition across all inputs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 621-0024 |
| Product Type | Analog Input PLC Module |
| System Compatibility | Honeywell IPC 620 Series |
| Number of Channels | 4 (differential) |
| Resolution | 14 bits |
| Input Signal Types | 4-20 mA, 0-5 VDC |
| Input Impedance | 250 Ω (current), 100 kΩ (voltage) |
| Accuracy | ±0.1% of full scale |
| Update Rate | 10 ms per channel |
| Isolation | Optical isolation (field to logic) |
| Power Consumption | 5 W typical |
| Mounting Type | Rack-mounted |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Certifications | CE, UL508 |
| Country of Origin | USA |
Key Features
Simultaneous Sampling – Each channel uses its own ADC, providing synchronized data acquisition without scanning delays.
14-Bit Resolution – The high-resolution conversion delivers precise analog measurement and reliable data representation.
Flexible Input Configuration – Users can select 4-20 mA or 0-5 VDC inputs per channel, accommodating various transmitters.
Optical Isolation – This feature protects the control system from field-side electrical noise and voltage transients.
Differential Inputs – The differential design rejects common-mode noise, ensuring accurate readings in industrial environments.
Removable Terminal Strip – The detachable connector simplifies field wiring and speeds up module replacement.
Diagnostic LED Indicators – Individual channel status lights facilitate quick troubleshooting and fault identification.
Applications
The Honeywell 621-0024 performs reliably in process control, monitoring systems, and data acquisition applications. It suits industries such as chemical processing, power generation, and water treatment where precise analog measurement is essential.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
