Precision Signal Acquisition for IPC 620 Control Platforms

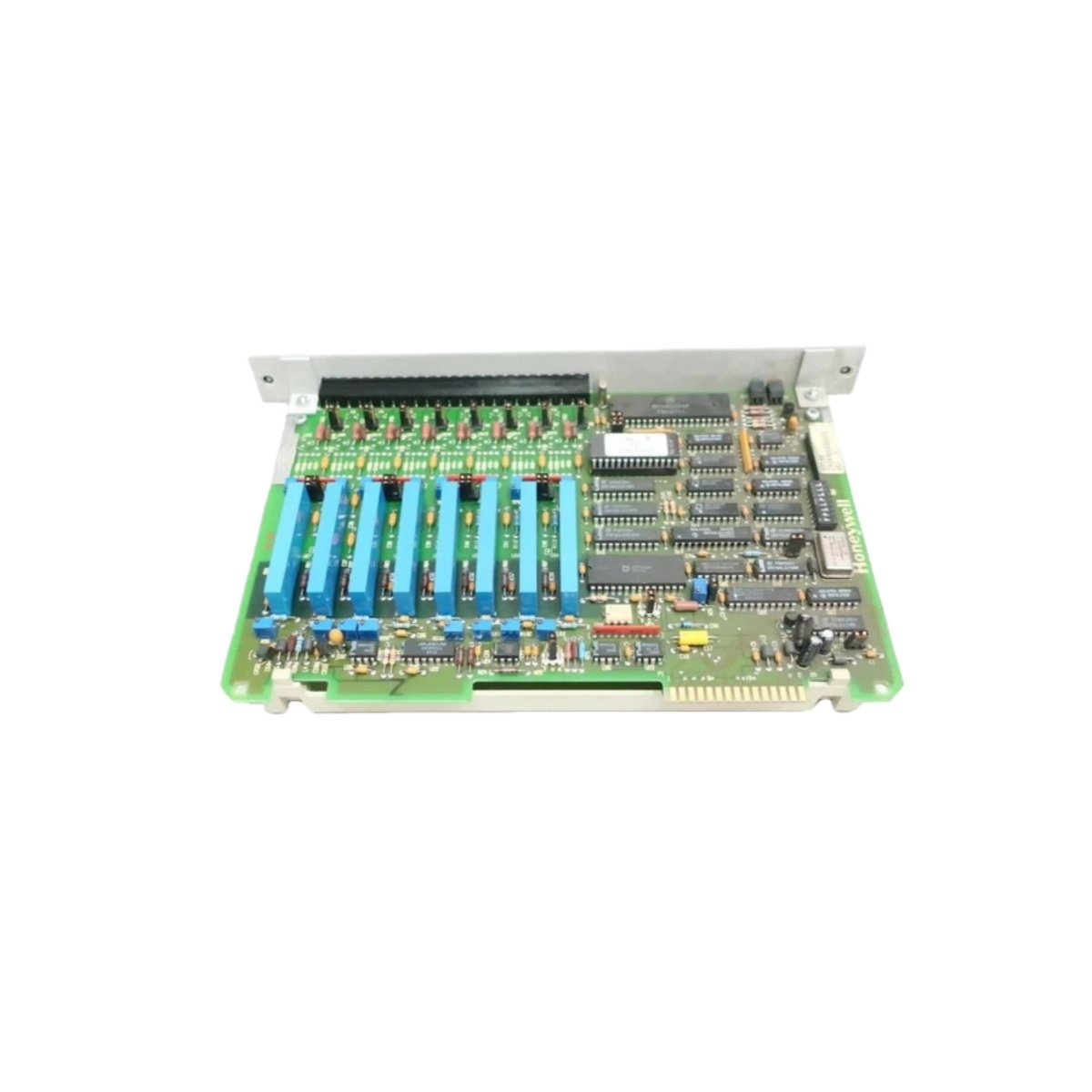

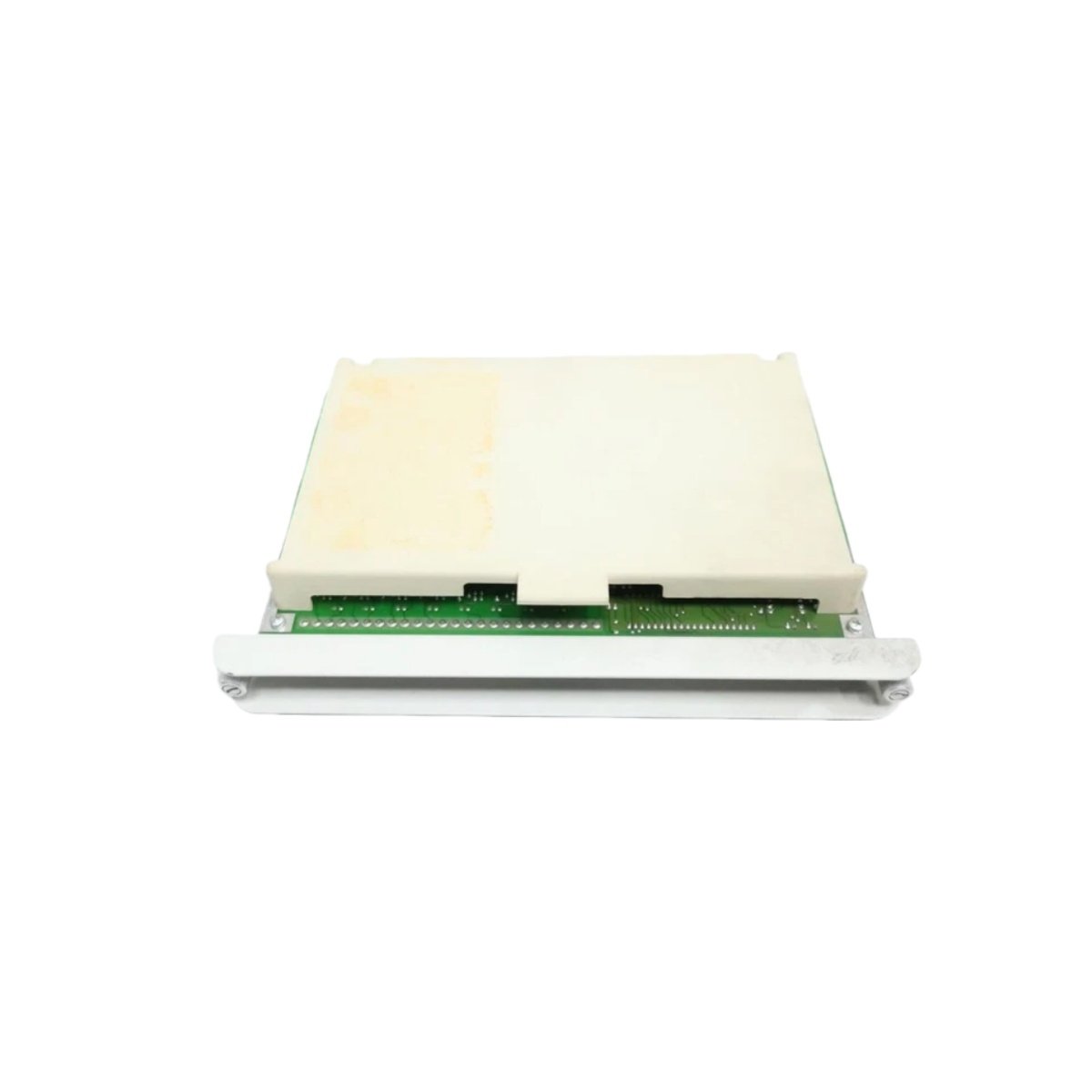

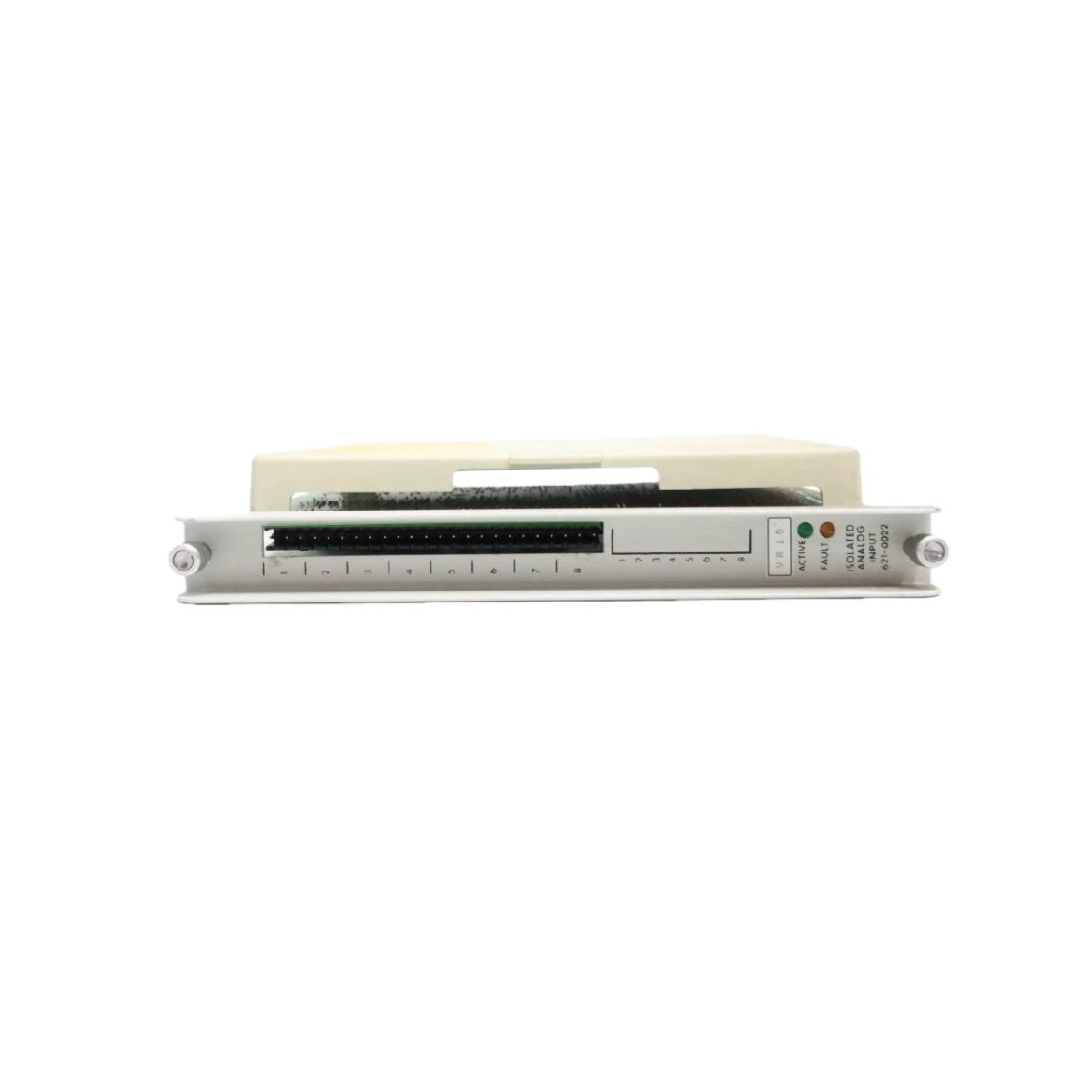

The Honeywell 621-0022 isolated analog input module provides reliable signal acquisition for the IPC 620 programmable controller system. This 8-channel module converts analog signals from field instruments into digital data for the processor. It supports both 4-20 mA current loops and 0-10 VDC voltage signals, offering flexibility for various sensor types . Its channel-to-channel isolation suppresses common-mode noise and prevents ground loops from affecting measurement accuracy .

This module features eight differential inputs with adjustable span and zero offset capabilities for each channel . Users can configure the module for ranges including 0-10 V, 0-5 V, 1-5 V, and 0-20 mA, or ranges such as ±10 V and ±5 V . Its high-resolution analog-to-digital conversion ensures precise data acquisition for demanding process applications . The module’s rugged construction supports reliable performance in harsh industrial environments .

Technical Specifications

The Honeywell 621-0022 offers selectable input signal filtering and module fault reporting capabilities . Different suffix options provide specific configurations: the “-A” suffix offers 4-20 mA input in a non-redundant configuration, the “-AR” provides 4-20 mA input with redundant capability, and the “-VR” delivers 1-10 VDC input in a redundant configuration . The “R” suffix indicates that users can remove or insert the module while the rack remains powered, a feature known as hot-swapping .
