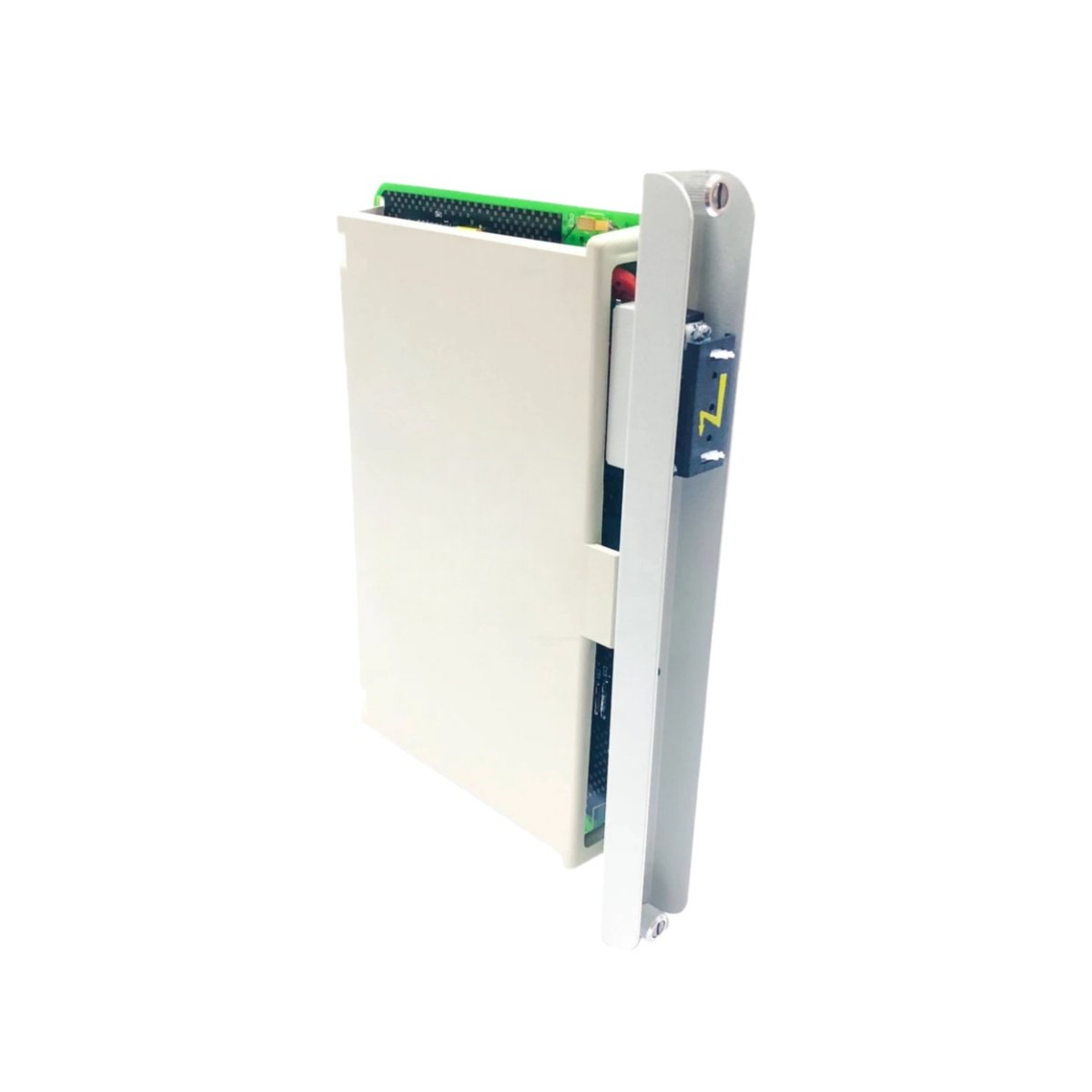

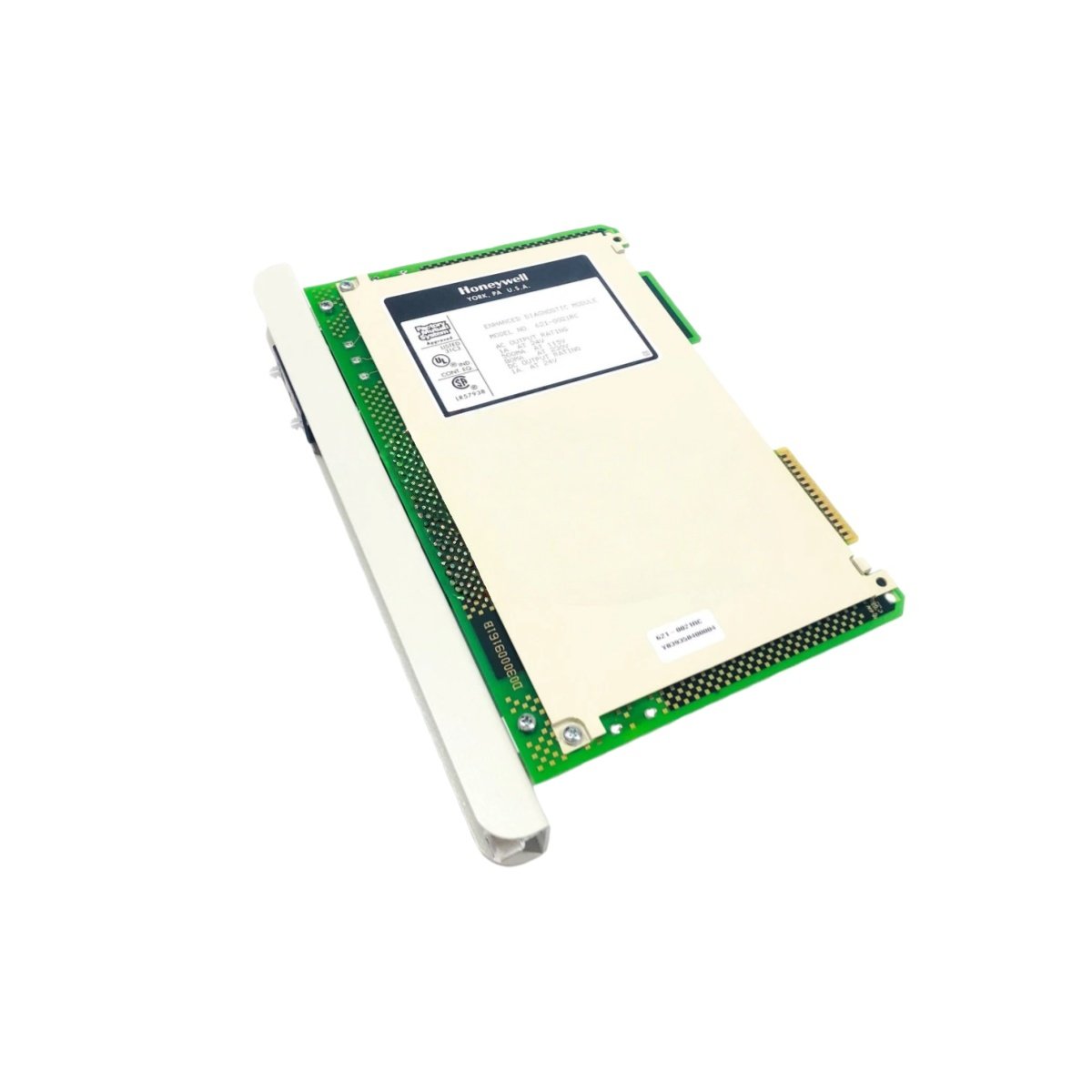

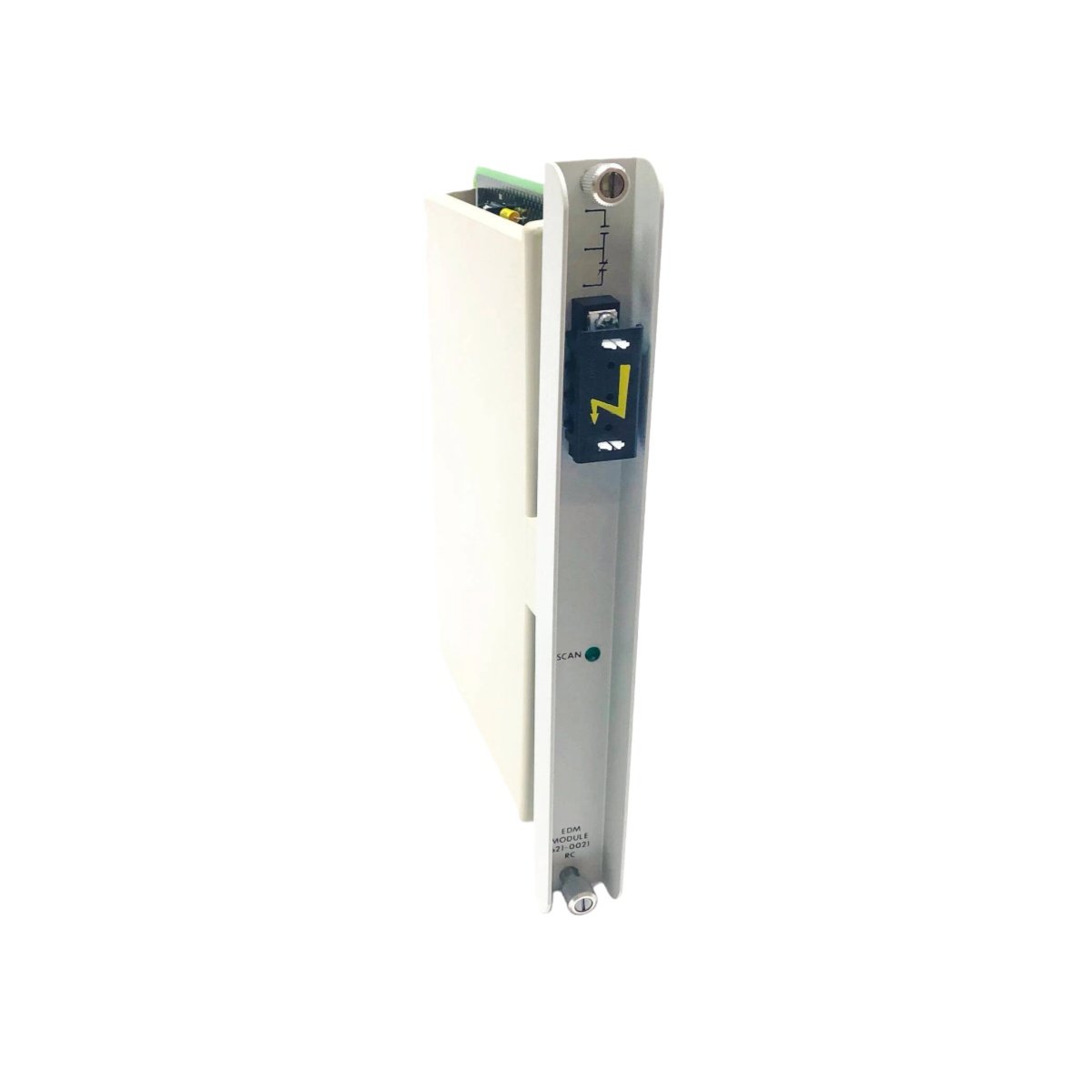

This diagnostic module monitors system health and reports fault conditions immediately. It captures time-stamped error data for troubleshooting and preventive maintenance. You can install this unit into any Series 620 rack slot. The module reduces downtime by identifying failing components before they stop working.
Technical Specifications & Key Parameters
| Parameter | Detail |
|---|---|
| Product Model | Honeywell 621-0021 |
| Category | Enhanced Diagnostic Module |
| Dimensions (H x W x D) | 230 mm x 160 mm x 25 mm |
| Weight | 0.36 kg (0.79 lbs) |
| Number of Monitored Points | 64 I/O channels (software selectable) |
| Diagnostic Types | Overcurrent, open circuit, short circuit, underrange, overrange |
| Fault Log Capacity | 50 events with time stamps (1 ms resolution) |
| Scan Rate for Diagnostics | 10 ms per channel |
| Component Count | 28 ICs, 36 capacitors, 44 resistors |
| Energy Storage | 470 µF capacitor (holds fault log for 10 seconds) |
| Operating Voltage | 5V DC from backplane |
| Current Draw | 220 mA at 5V DC |
| Communication Port | One RS-232 debug port (9-pin D-sub) |
| Status LEDs | Power, fault active, comm, log full, watch |
| Reporting Method | PLC register flags or serial printout |
| Battery Backup | None (uses capacitor retention only) |
Detailed Feature Overview
Honeywell 621-0021 monitors up to 64 I/O channels for abnormal conditions. It detects overcurrent, open circuit, short circuit, underrange, and overrange faults. The module captures each fault with a 1-millisecond time stamp. This precision helps you correlate electrical events with machine operations. Consequently, you can identify intermittent problems that traditional PLCs miss.
The unit stores up to 50 fault events in its onboard memory. A 470 µF capacitor retains this log for 10 seconds after power loss. You can retrieve fault data via PLC register reads or serial printout. The module scans each monitored channel every 10 milliseconds. Therefore, it catches brief faults that occur between normal PLC scans.
Diagnostic Reporting Methods
Two reporting methods give you flexibility in data collection. Register reporting places fault status directly into PLC memory locations. Serial reporting prints detailed messages to a connected terminal or printer. The watch LED illuminates when any monitored channel exceeds its normal range. A comm LED confirms active communication with the PLC processor.
Installation and Configuration
This module draws 220 mA from the 5V DC backplane supply. Use software configuration to select which channels to monitor. You can set individual thresholds for each channel type. The module fits any Series 620 rack slot without special wiring. Operating temperature ranges from 0°C to 60°C reliably. Keep humidity below 95% without condensation for long life. The RS-232 debug port connects to any standard PC serial terminal.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
