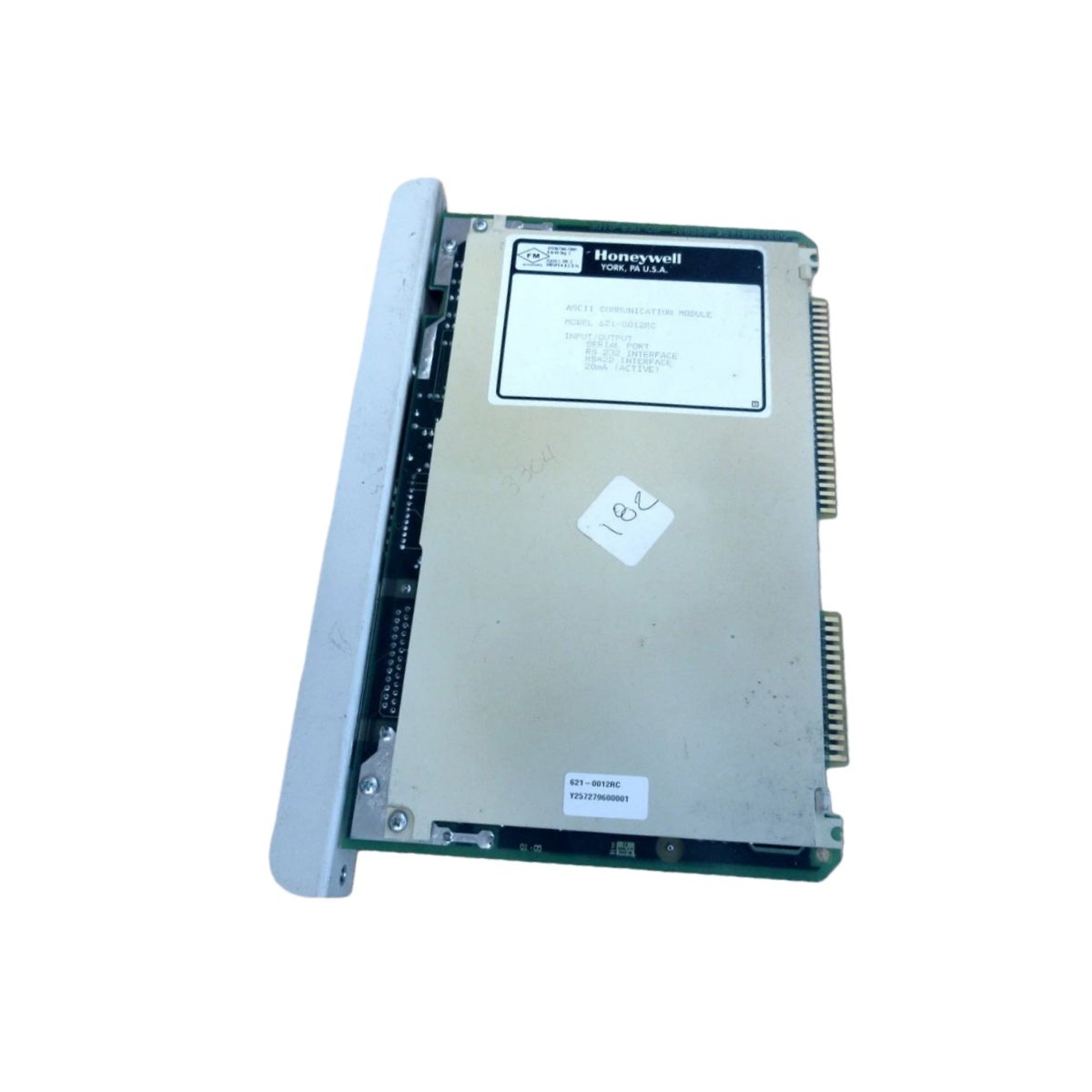

This communication module handles data exchange for Honeywell 620 series systems. It connects the controller to plant networks and field devices. Therefore, this component enables remote monitoring and distributed control architectures.

Physical Dimensions and Weight Specifications

The Honeywell 621-0012 occupies one standard slot in the 620 series rack. Its housing measures 220 mm in depth for backplane connectivity. The module weighs approximately 0.48 kg for straightforward handling. Consequently, technicians can install this unit without additional rack reinforcement.

Interface Types and Connection Layout

The Honeywell 621-0012 provides one RS-232 port for local programming access. A second RS-485 port supports multidrop communication with field devices. The front panel carries a 9-pin D-sub connector for diagnostic tools. Hence, operators can monitor communication status without opening the cabinet.

Component Count and Communication Protocol

This communication module contains one main board with a dedicated protocol processor. The board holds 32 KB of buffer memory for message queuing. You will also find galvanic isolation circuits for both serial ports. An onboard oscillator generates the baud rate clock signals.

Energy Storage and Power Consumption

The Honeywell 621-0012 draws 100 mA from the 5V backplane supply. A small electrolytic capacitor maintains buffer memory for 10 milliseconds. This short storage protects message data during brief power dips. The module does not require a backup battery for normal operation.

Communication Performance and Diagnostics

The interface handles full-duplex communication on both ports simultaneously. It includes built-in loopback testing for diagnostic verification. Users can read detailed diagnostic data via the controller software. This feature reduces troubleshooting time for communication faults.
