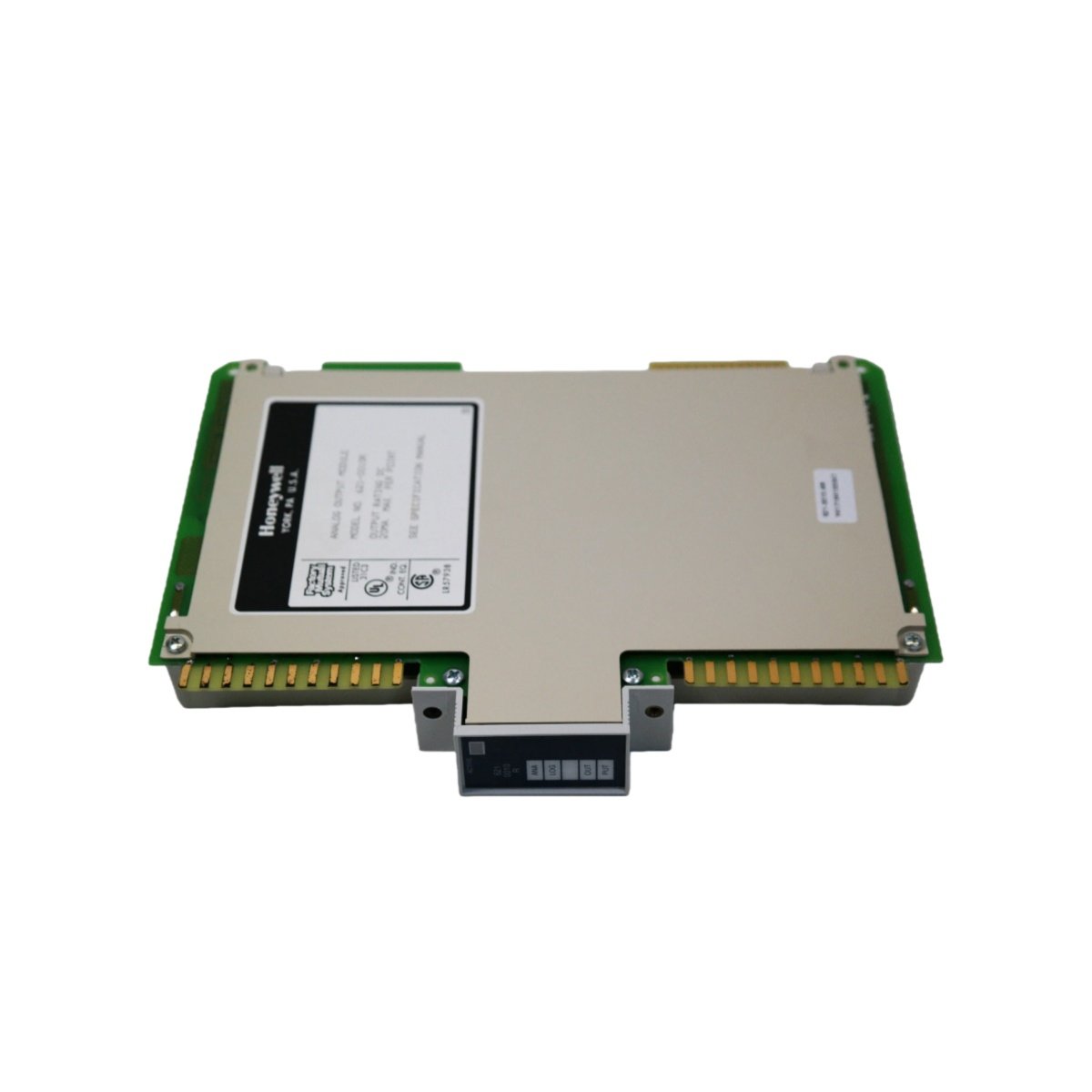

This analog output module converts digital signals to precision current outputs. It drives actuators and positioners in Honeywell 620 series control systems. Therefore, this component suits valve control, speed regulation, and process modulation applications.

Physical Dimensions and Weight Specifications

The Honeywell 621-0010 occupies one standard slot in the 620 series rack. Its housing measures 220 mm in depth for backplane connectivity. The module weighs approximately 0.46 kg for straightforward handling. Consequently, technicians can install this unit without additional rack reinforcement.

Interface Types and Connection Layout

The Honeywell 621-0010 provides a 48-pin front connector for field wiring. A 20-pin backplane connector supplies power and data from the CPU. The front panel carries LED indicators for each output channel status. Hence, operators can verify output activity at a quick glance.

Component Count and Channel Configuration

This analog output module contains one main board with 4 independent channels. Each channel uses a 12-bit digital-to-analog converter for precision. You will also find programmable gain amplifiers per output. An onboard voltage-to-current converter drives 4-20mA field loops.

Energy Storage and Power Consumption

The Honeywell 621-0010 draws 130 mA from the 5V backplane supply. It also requires 80 mA from an external 24V supply for field circuits. A small capacitor bank filters noise on the analog output rails. This storage ensures smooth, ripple-free signals for precise actuator control.

Output Performance and Diagnostic Features

The module updates all 4 outputs within a 3 ms cycle time. Each channel includes short-circuit protection for field wiring faults. Users can configure output fallback states for safety during CPU errors. This feature prevents uncontrolled actuator movements during system faults.
