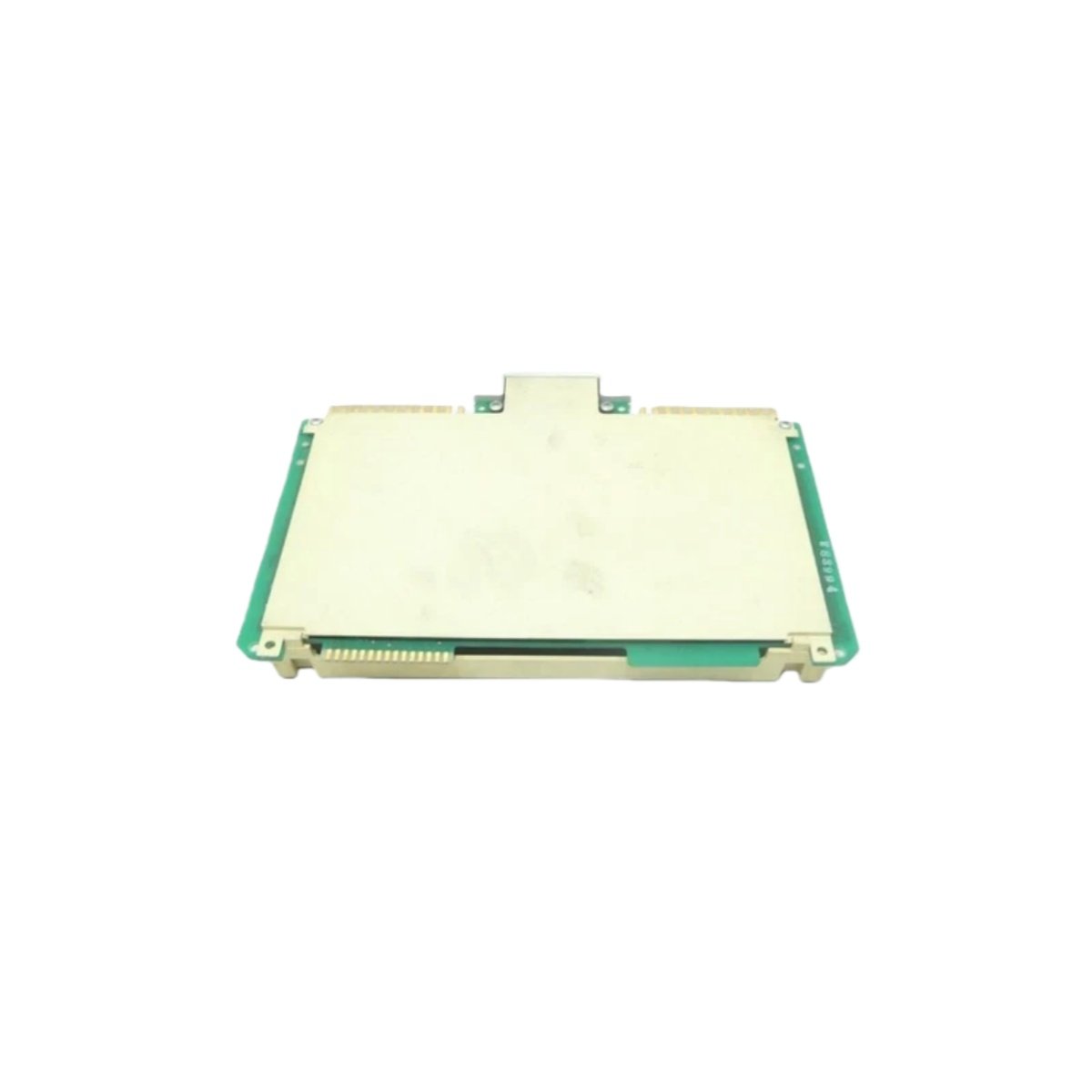

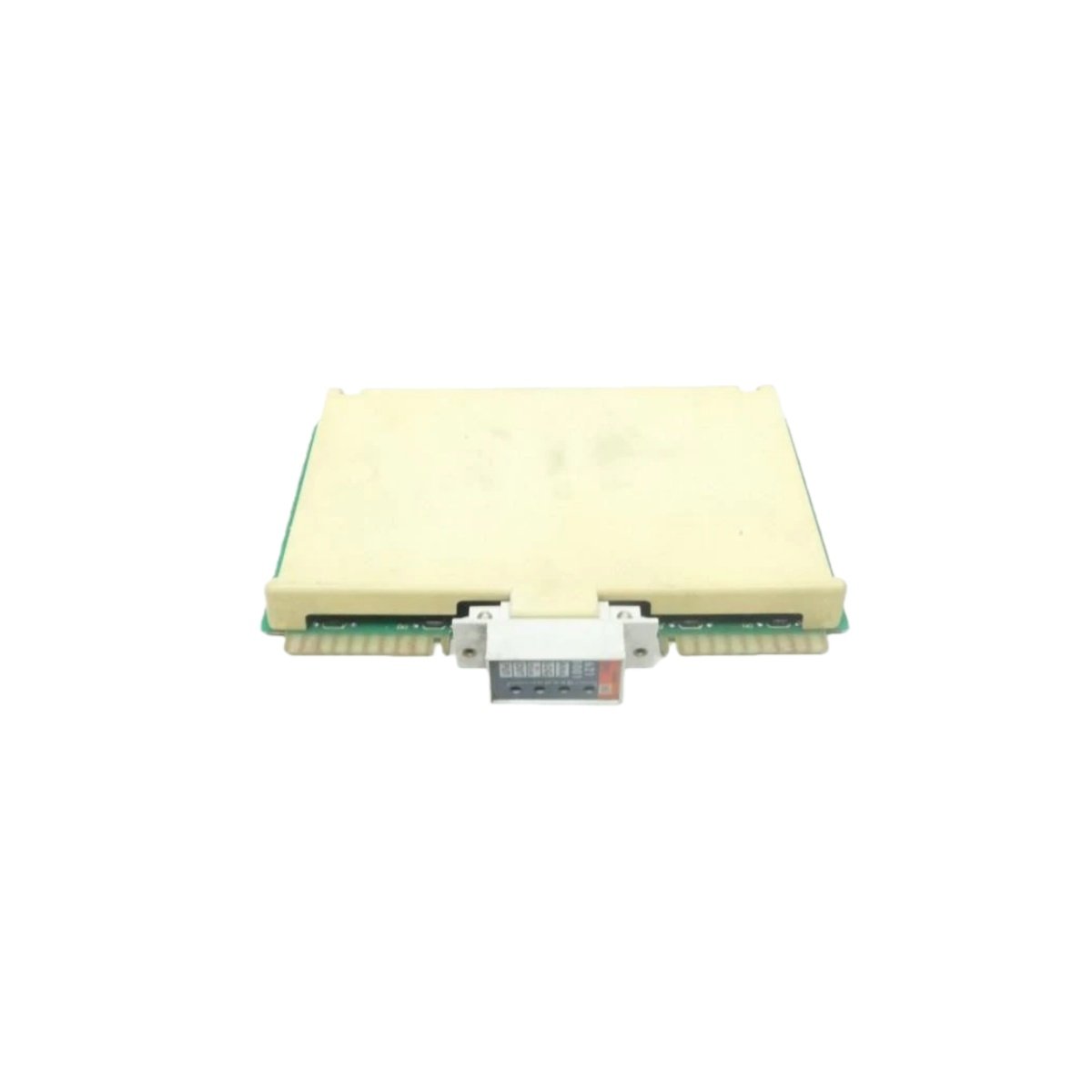

The Honeywell 621-0001 isolated breakout board provides a versatile output interface for the ISSC 600 and IPC 620 programmable controller systems. This module converts digital signals from the controller into reliable outputs for field devices. It offers eight independent channels for controlling actuators, valves, and motors in industrial automation applications.
Technical Specifications of Honeywell 621-0001
The Honeywell 621-0001 breakout board features eight output channels with a voltage output range of 0–10 V DC. It operates with a 24 V DC power supply and delivers high accuracy for precise analog control. The module supports both relay and digital outputs, making it adaptable to various control requirements. Its response time is less than 10 milliseconds, ensuring fast and responsive signal processing.
| Parameter | Specification |
|---|---|
| Model Number | Honeywell 621-0001 |
| Product Type | Output Module / Isolated Breakout Board |
| System Compatibility | ISSC 600, IPC 620 Programmable Controllers |
| Number of Channels | 8 output channels |
| Output Type | Relay / Digital (selectable), 0–10 V DC analog |
| Power Supply | 24 V DC |
| Current per Channel | 2 A maximum |
| Response Time | <10 ms |
| Dimensions (L x W x H) | 241 mm x 178 mm x 38 mm |
| Weight | Approx. 0.387 kg |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Mounting | DIN rail or panel mount |
| Certification | CE, UL listed |
Integration and Application
The Honeywell 621-0001 breakout board provides a critical interface between the controller and field devices. It transmits precise analog signals from the PLC to actuators and other final control elements. This module ensures seamless integration into existing ISSC 600 and IPC 620 systems. You can deploy this breakout board for process automation, distributed control systems, and industrial machinery monitoring tasks.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
