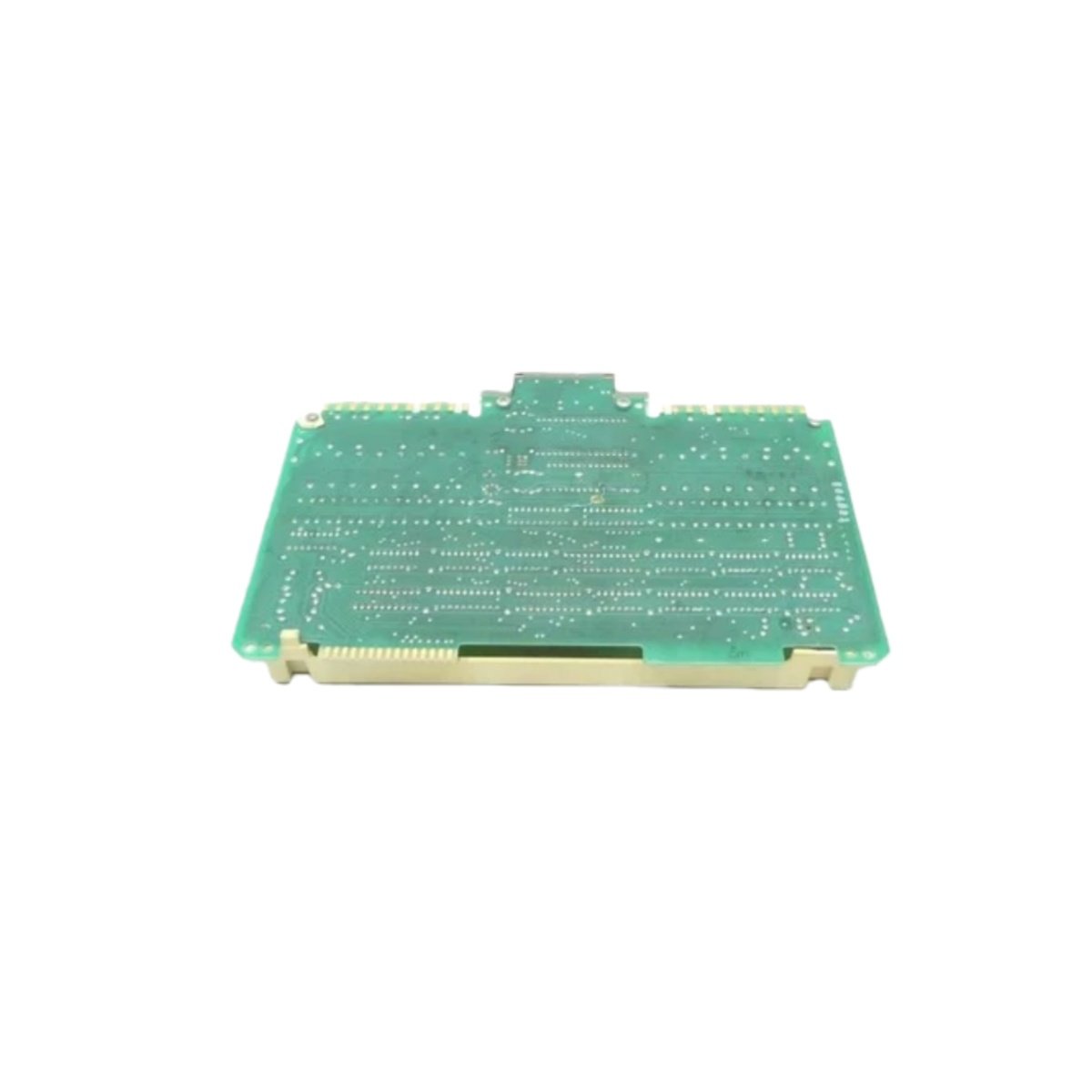

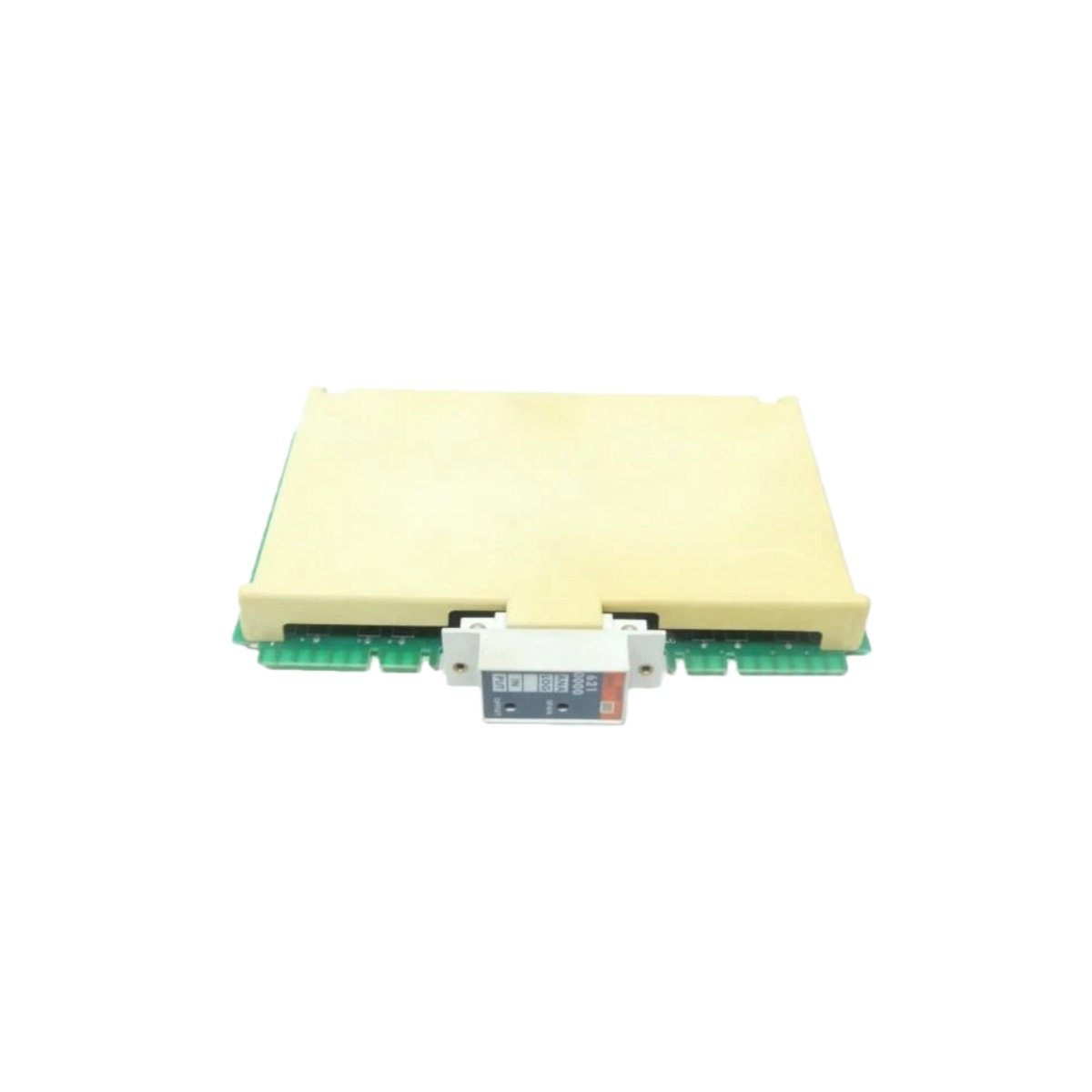

The Honeywell 621-0000 analog input module provides a reliable interface for field sensors within the ISSC 620 and IPC 620 programmable controller systems. This module converts analog signals from sensors into digital values for processing. It offers eight independent input channels for versatile signal acquisition. This module suits demanding process control applications requiring accurate analog measurement.
Technical Specifications of Honeywell 621-0000
The Honeywell 621-0000 module features eight analog input channels with a current range of 4–20 mA. It operates on a 24 V DC power supply and provides high accuracy for reliable data acquisition. The module includes filtering to reduce noise and ensure signal integrity. It supports both single-ended and differential input configurations for flexible installation. The module interfaces with the controller via the backplane bus.
| Parameter | Specification |
|---|---|
| Model Number | Honeywell 621-0000 |
| Product Type | Analog Input Module |
| System Compatibility | ISSC 620, IPC 620 Programmable Controllers |
| Number of Channels | 8 analog inputs |
| Input Signal | 4–20 mA |
| Power Supply | 24 V DC |
| Resolution | 12 bits |
| Input Impedance | 250 Ω |
| Accuracy | ±0.1% of full scale |
| Dimensions (L x W x H) | 241 mm x 178 mm x 38 mm |
| Weight | Approx. 0.387 kg |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Mounting | Rack or panel mount |
Integration and Application
The Honeywell 621-0000 analog input module connects to the controller via a cable assembly (part number 621-0100) for communication . This module provides the interface between the 24 V DC field sensors and the IPC 620 controller . It includes filtering and high noise immunity for reliable signal acquisition . You can deploy this analog input module for monitoring temperature, pressure, flow, and other process variables in industrial applications .
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
