Core System Functionality

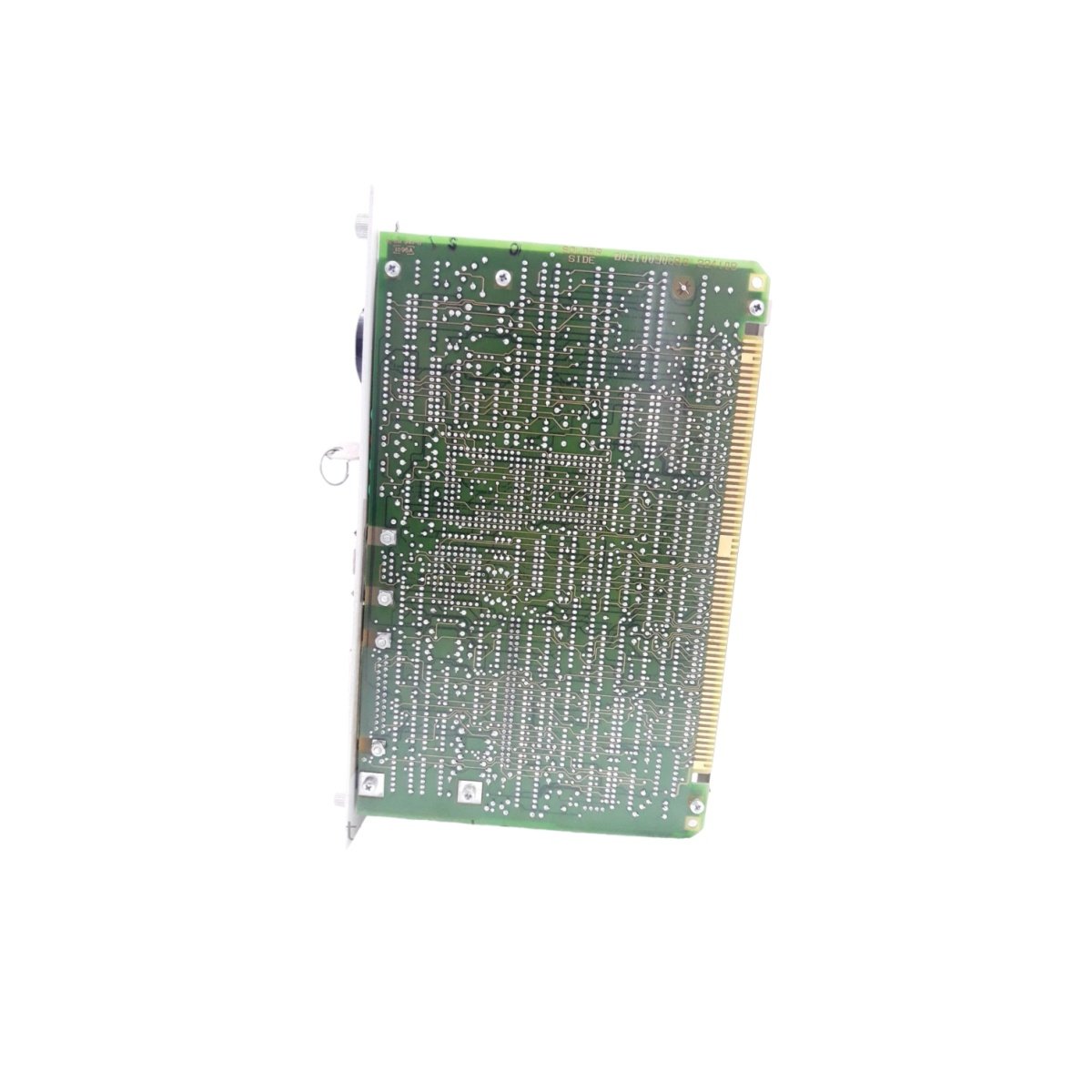

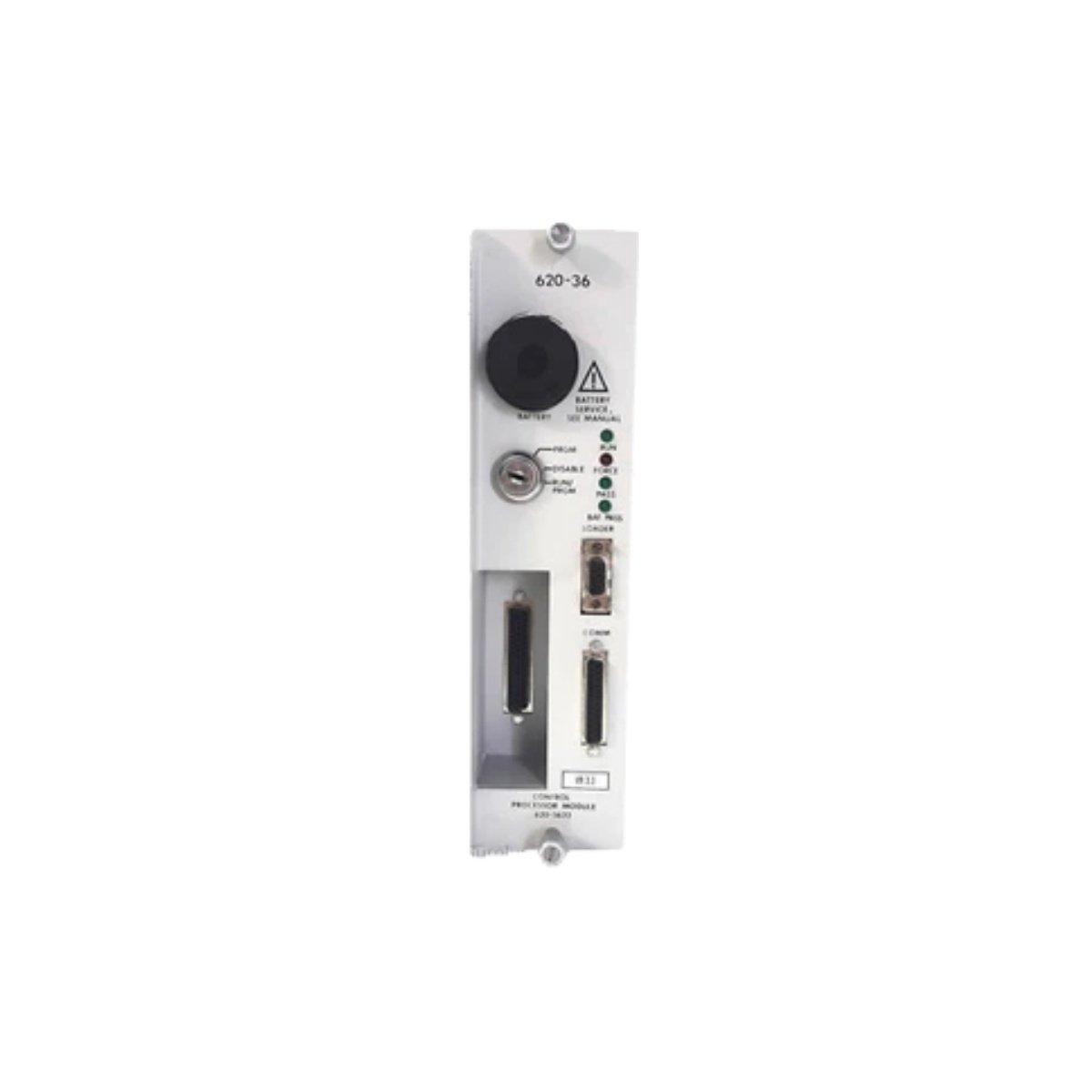

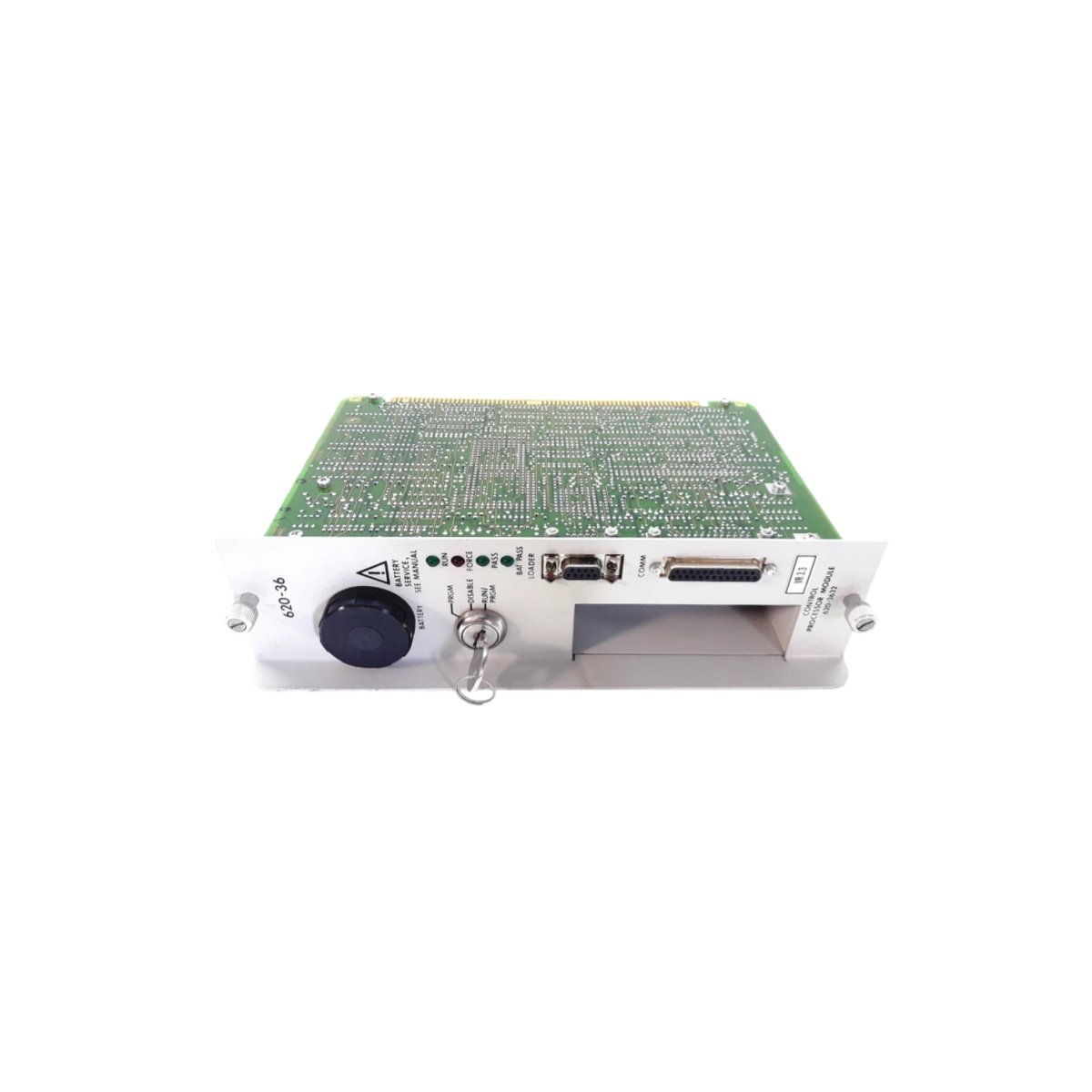

The Honeywell 620-3632 control processor module serves as the central processing unit for Honeywell 620 Series distributed control systems. This module executes real-time control logic, manages data acquisition, and coordinates communication across system components. It handles complex mathematical operations and system task scheduling with high reliability. Furthermore, the module supports sophisticated PID regulation and high-speed counting functions for demanding industrial applications .
Technical Specifications
The following table details the core technical parameters for the Honeywell 620-3632:
| Parameter | Specification |
|---|---|
| Model Number | 620-3632 |
| Product Type | Control Processor Module (IPC) |
| Memory Capacity | 32K bytes (IPC Advanced Processor version) |
| Dimensions (L × W × H) | 27.0 × 17.5 × 7.0 cm (10.63 × 6.89 × 2.76 in) |
| Weight | 0.80 kg (1.76 lbs) |
| Processor | Motorola 68000 microprocessor |
| Operating Temperature | 0°C to 60°C |
| Country of Origin | United States |
Design and Integration Features
The Honeywell 620-3632 features a compact modular design that simplifies installation in control cabinets. Its lightweight construction reduces physical strain on the backplane during mounting. The module offers multiple I/O configurations including digital inputs, digital outputs, and serial communication ports. It integrates seamlessly with other 620 Series components, which facilitates straightforward system expansion and maintenance .
Industrial Applications
The Honeywell 620-3632 excels in process control environments such as chemical manufacturing and oil refining. It provides robust control for power generation facilities and discrete manufacturing operations. Building automation systems and infrastructure projects also rely on this module for consistent performance. Its advanced processing capabilities contribute directly to enhanced system stability and operational efficiency .
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
