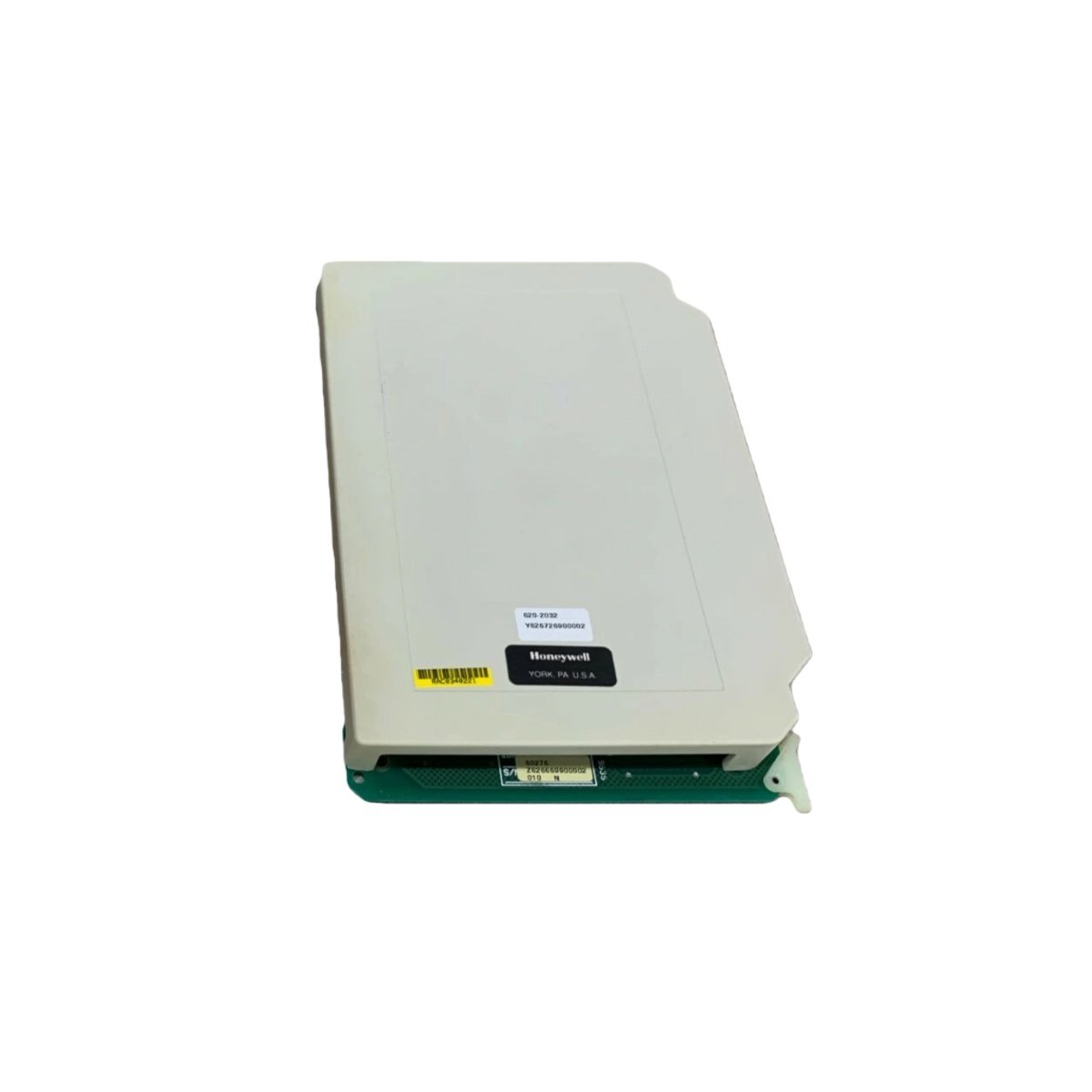

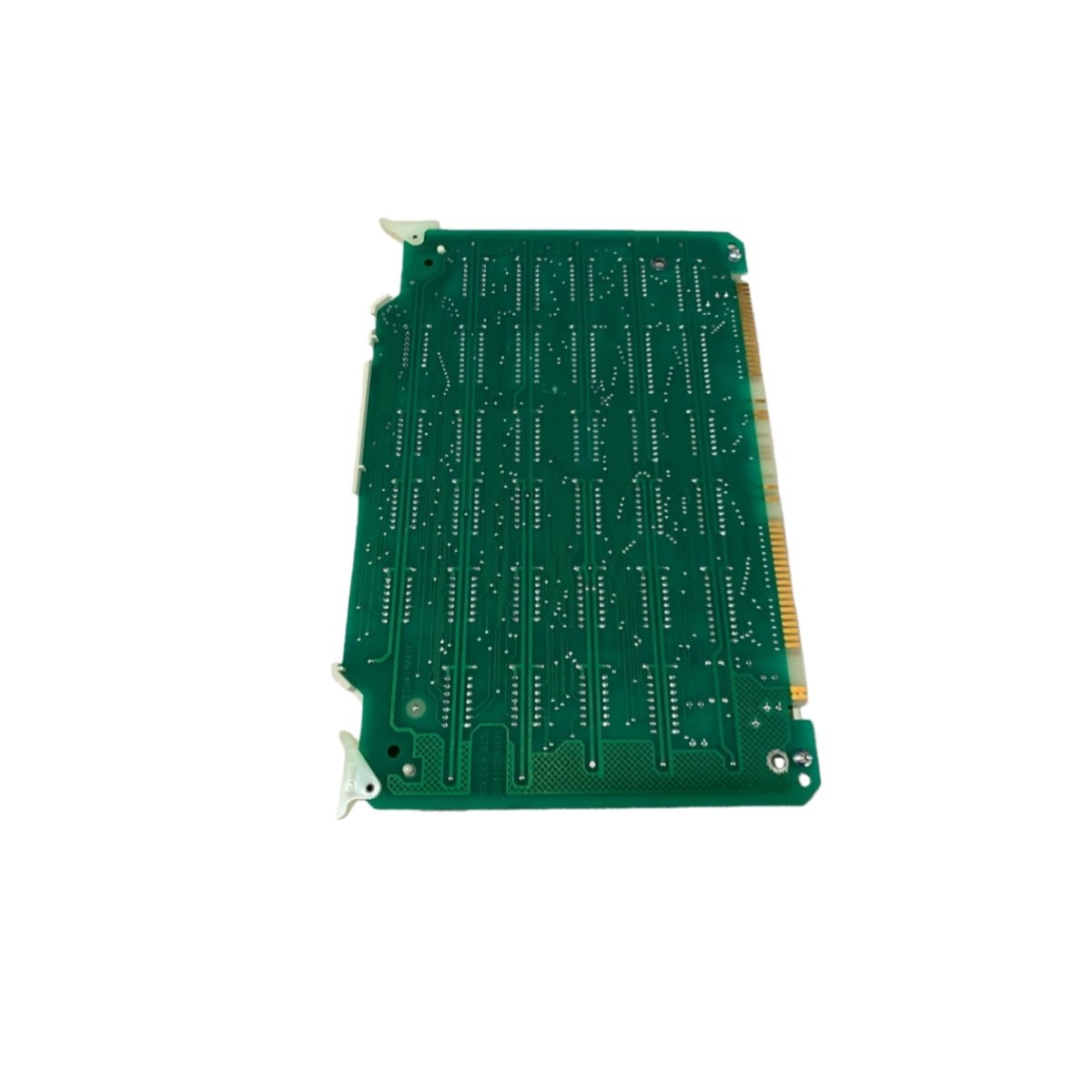

This logic controller module serves as the core processing unit for Honeywell IPC 620 series systems. It handles logic operations, signal processing, and equipment coordination across various industrial applications. The module integrates seamlessly with Honeywell’s Universal Control Network (UCN) for reliable system communication .
I/O Configuration and Processing Capabilities
The Honeywell 620-2032 supports 16 digital inputs, 16 digital outputs, 4 analog inputs, and 2 analog outputs for comprehensive signal management . The module processes both discrete and continuous signals, making it suitable for diverse automation tasks. It delivers high-precision logic运算 and features strong anti-interference capabilities for reliable operation . The module supports redundant configuration with hot backup, enabling undisturbed switching during system maintenance .
Technical Specifications
| Specification | Detail |
|---|---|
| Model | 620-2032 |
| Product Type | Logic Controller / I/O Control Module |
| System Compatibility | Honeywell IPC 620 Series, TDC 2000, TDC 3000 |
| Digital Inputs | 16 channels |
| Digital Outputs | 16 channels |
| Analog Inputs | 4 channels |
| Analog Outputs | 2 channels |
| Input Voltage | 5 VDC (via system bus) |
| Communication | UCN bus, 2 serial ports, 1 Ethernet port |
| Mounting | Rack-mounted, 620 series compatible |
| Dimensions (W×H×D) | 165 × 280 × 51 mm |
| Weight | 0.4 kg to 0.68 kg |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Protection | Overvoltage, overcurrent, short circuit, ESD |
| Certifications | CE, UL, CSA, TUV |
Communication and Diagnostic Features
The module integrates with Honeywell’s UCN bus, and it also works with 620-0080 CPU and 620-0086 link modules for expanded functionality . The unit features running, fault, and channel status indicator lights for online diagnostics and fault location. It includes two serial ports and one Ethernet port, supporting Modbus and UCN protocols for flexible connectivity . The modular plug-in design allows online replacement without system downtime.
Protection and Environmental Tolerance
This module incorporates multiple protection mechanisms, including overvoltage, overcurrent, short circuit, and electrostatic discharge safeguards . It operates reliably in temperatures from -20°C to +60°C and stores safely from -40°C to +85°C. The module meets CE, UL, TUV, and CSA certifications, complying with industrial safety and EMC standards . Its rugged construction withstands harsh industrial environments in oil and gas, power generation, chemical processing, and manufacturing facilities .
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
