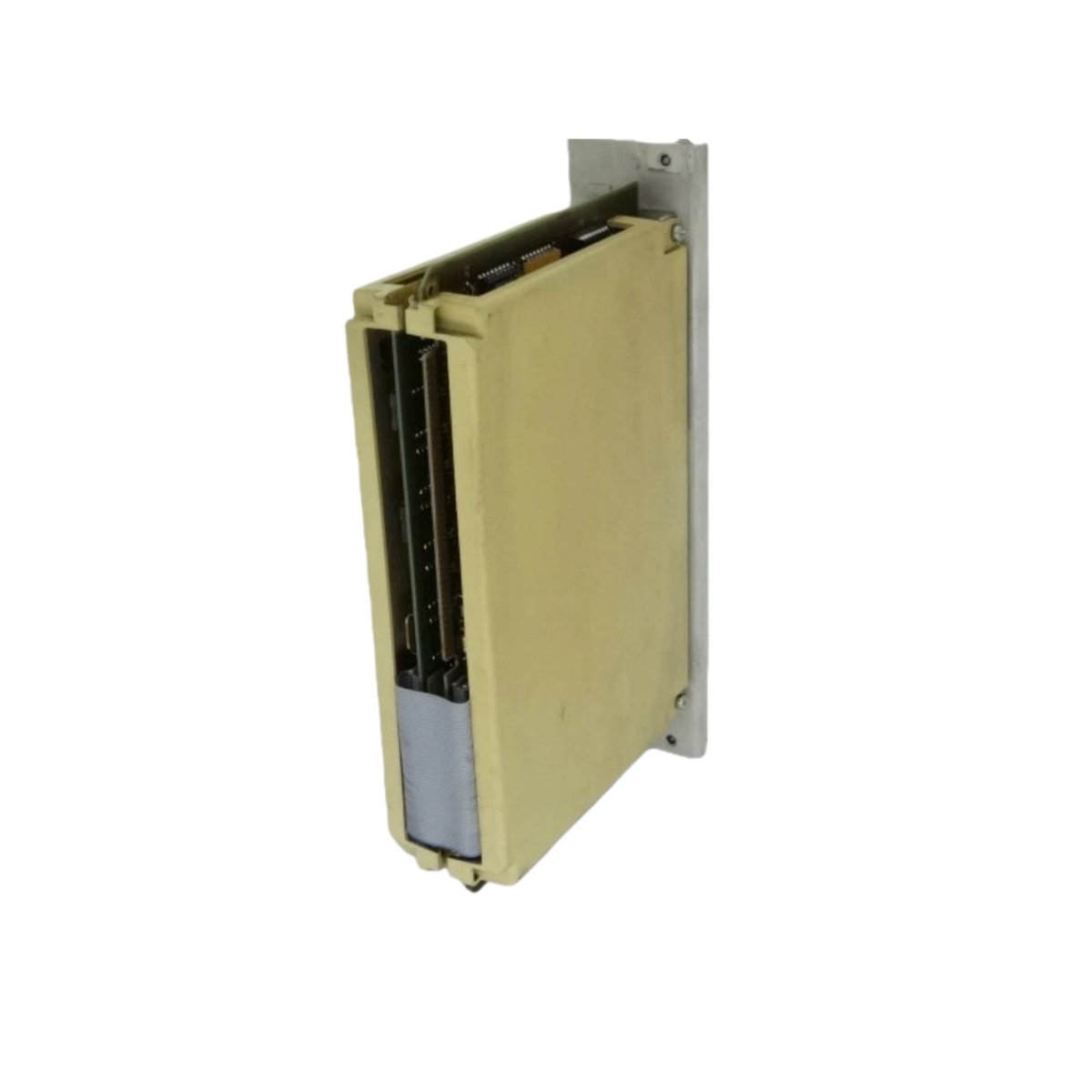

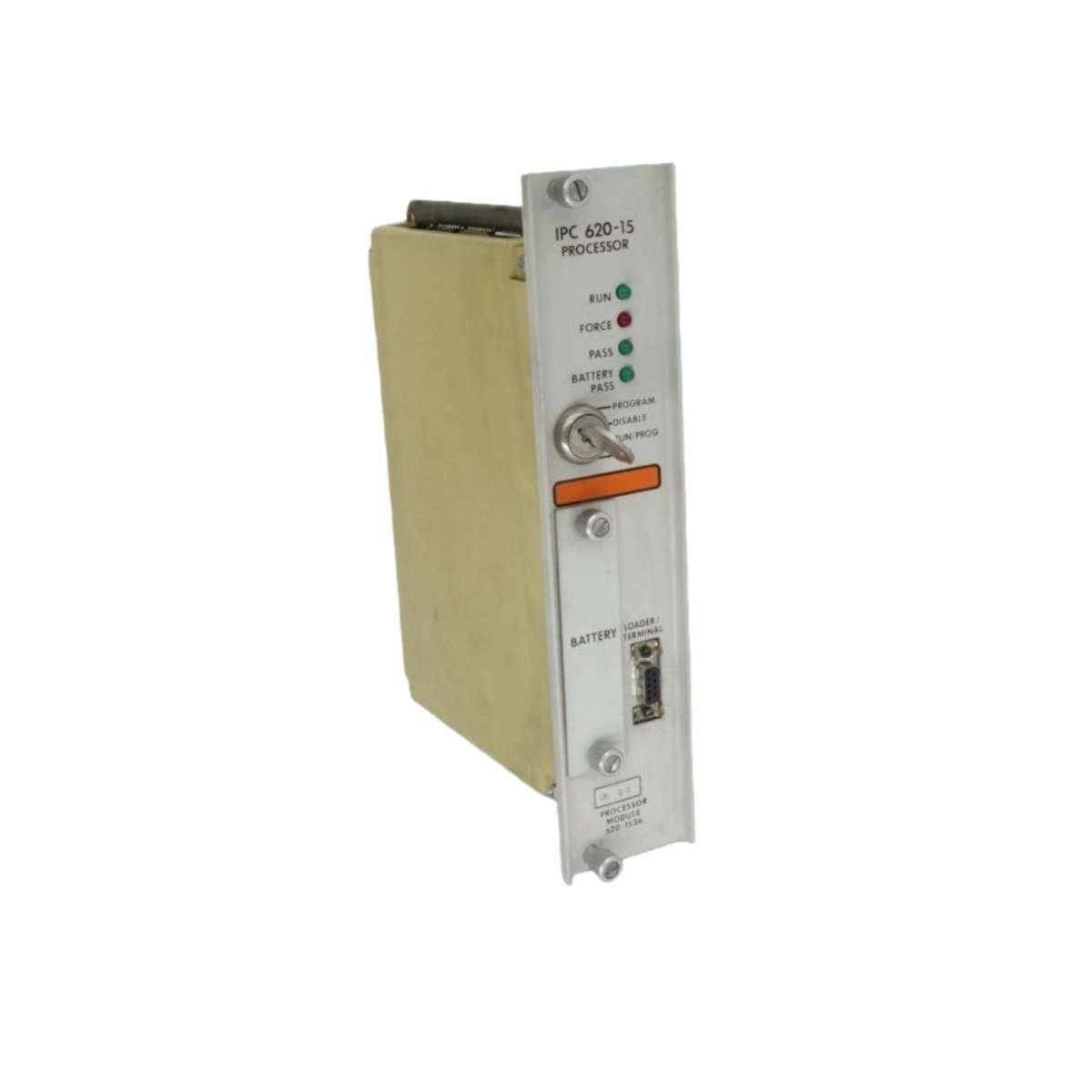

The Honeywell 620-1536 processor module serves as the central processing unit for the IPC 620-15 programmable controller series . This module executes user control programs and manages input/output data within the IPC 620 rack . It provides reliable processing power for diverse industrial automation applications . This processor module integrates seamlessly with Honeywell’s Universal Control Network (UCN) architecture .
Technical Specifications of Honeywell 620-1536
The Honeywell 620-1536 features a program memory capacity of 2K (2,048) words . It includes a 9-pin Sub-D connector for serial communication and diagnostics . The module provides status LEDs for power, communication, and fault indication . It operates on a 24 VDC power supply and fits a compact form factor of 241 x 178 x 38 mm . The processor module weighs approximately 1.18 kg .
| Parameter | Specification |
|---|---|
| Model Number | Honeywell 620-1536 |
| Product Type | Processor Module / CPU |
| System Compatibility | IPC 620-15, IPC 620 Series |
| Memory | 2K words user program (RAM) |
| Communication Interface | 9-pin Sub-D connector |
| Indicators | Power, Communication, Fault LEDs |
| Power Supply | 24 VDC |
| Dimensions (L x W x H) | 241 x 178 x 38 mm (9.5 x 7 x 1.5 in) |
| Weight | Approx. 1.18 kg |
| Mounting | IPC 620 rack / DIN rail |
Integration and Application
The Honeywell 620-1536 processor module handles control logic execution and coordinates communication with connected I/O modules. Its front-panel LEDs provide real-time diagnostic and operational status feedback . The module integrates with Honeywell IPC 620 I/O modules and UCN network devices . You can deploy this processor in chemical processing, oil refining, manufacturing, and power generation applications .
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
