Product Overview

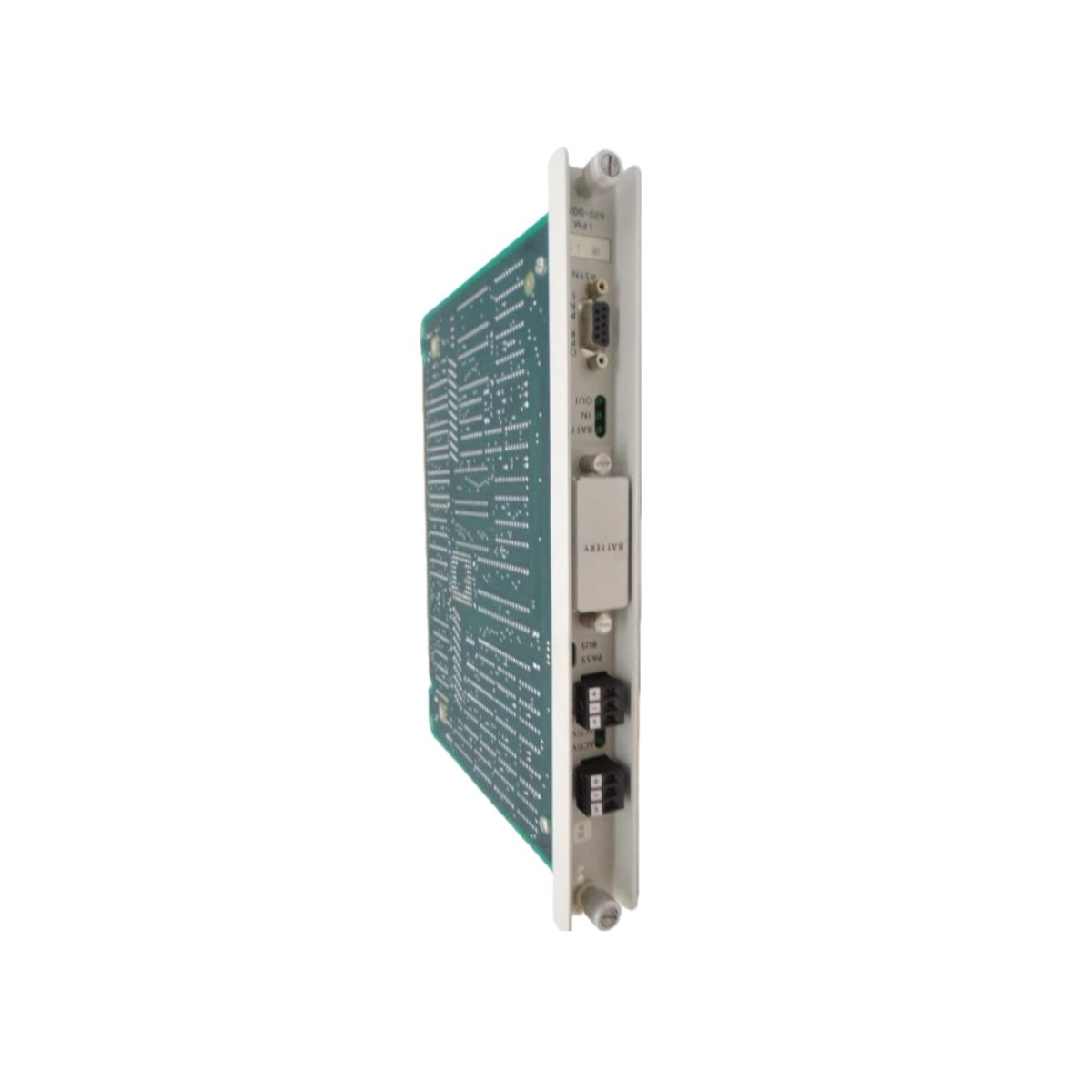

The 620-0072 is a full-featured loop processor module for the ISSC 600 system . It specifically handles analog control, performing PID loop calculations, sequence-of-events recording, and logic solving . The module effectively replaces multiple stand-alone controllers in complex process applications . This component integrates seamlessly into the 12-slot IPC rack .
Key Specifications
| Parameter | Specification |
|---|---|
| Model | 620-0072 |
| Product Type | Loop Processor Module |
| PID Loops | 16 |
| Analog Inputs | 32 |
| Analog Outputs | 16 |
| Digital Inputs | 64 |
| Digital Outputs | 64 |
| Processor | 32-bit microprocessor |
| Ports | 2 serial ports |
| Power Consumption | 24V DC, 1.2A |
| Dimensions (L x W x H) | 19.0 x 3.0 x 9.0 inches |
| Weight | 0.9 kg |
| Operating Temperature | 0–50°C |
Advanced Loop Control
The 620-0072 provides up to 16 PID loops for precise process regulation . It also supports cascade, ratio, and feedforward control strategies . The module updates each loop at a rate of 20 milliseconds . This speed ensures responsive control for fast-changing process variables .
I/O Capacity and Connectivity
The module handles 32 analog inputs and 16 analog outputs for comprehensive signal processing . It also manages 64 digital inputs and 64 digital outputs . Two serial ports enable communication with external devices and higher-level systems . The unit uses a 32-bit microprocessor for efficient processing and algorithm execution .
Applications and Environment
This loop processor excels in oil and gas, chemical, and power generation facilities . It also serves pulp and paper, wastewater treatment, and food processing plants . The module operates reliably within a 0–50°C temperature range. It mounts in a 12-slot IPC rack alongside other ISSC 600 modules .
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
