Technical Overview

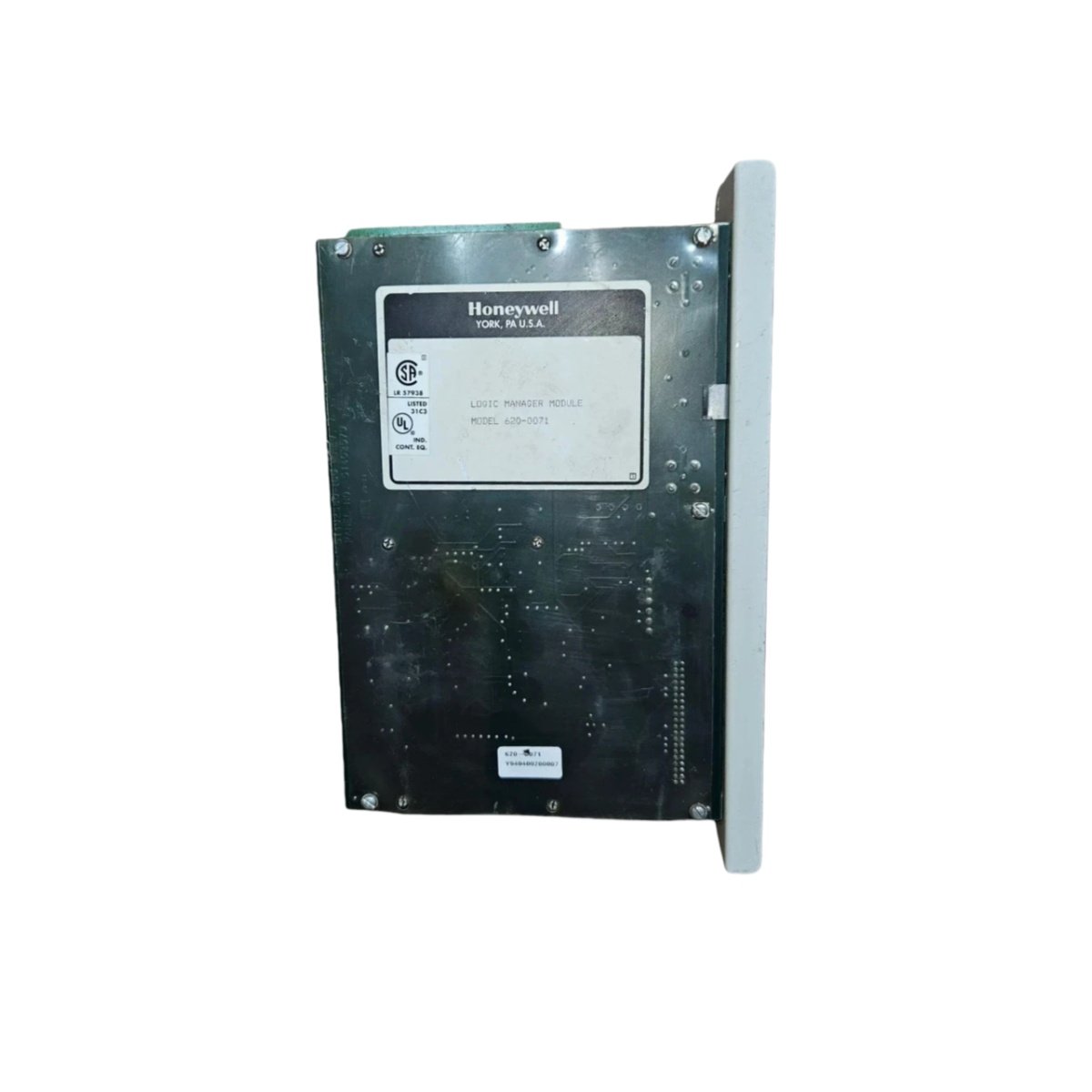

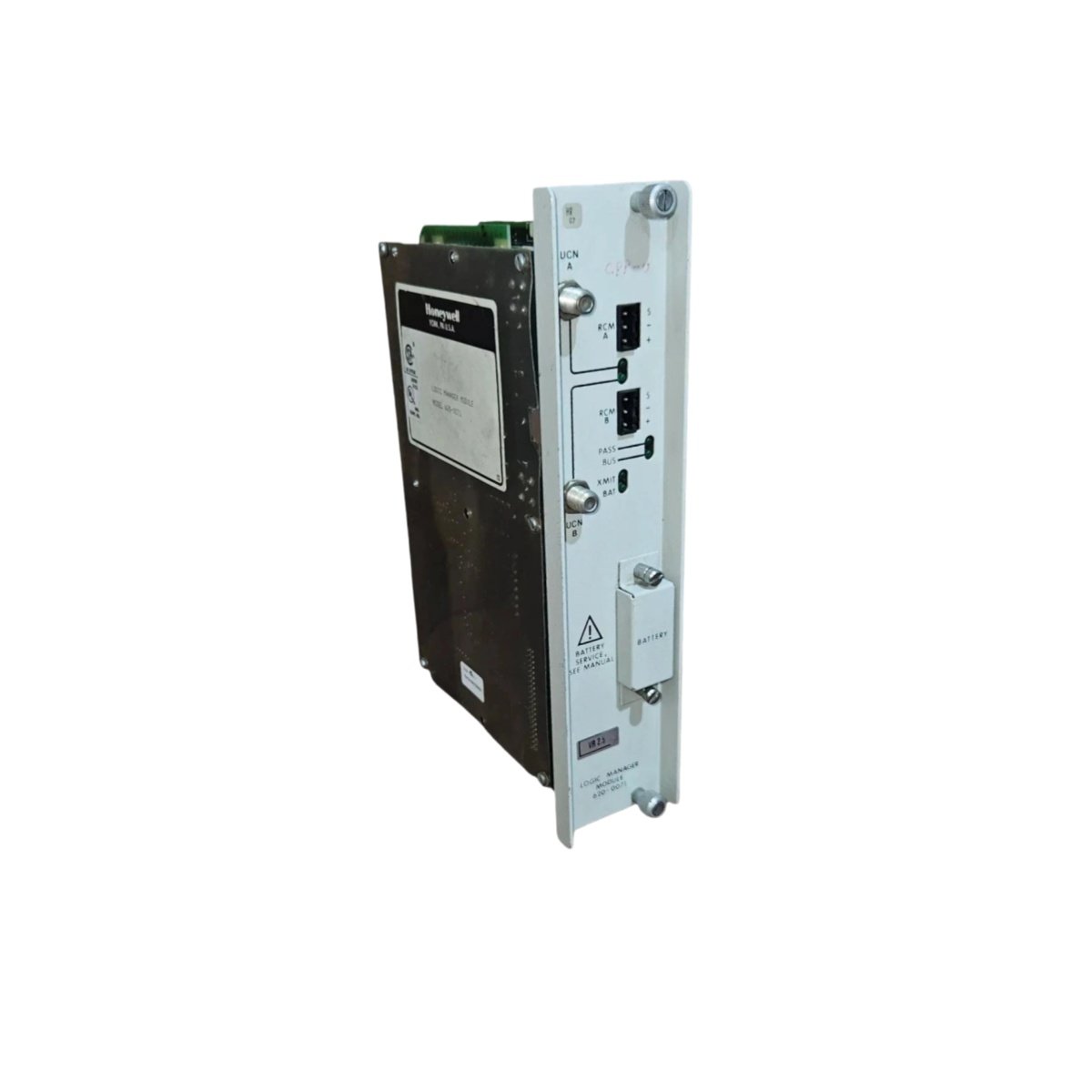

The Honeywell 620-0071 is a Logic Manager Module engineered for the IPC 620 programmable controller series and TDC 3000 distributed control systems . This module executes complex logic operations and control strategies for demanding industrial automation environments. It supports dual-redundant processing architectures and utilizes the UCN (Universal Control Network) protocol for system-wide communication . The module provides scalable memory configurations and supports advanced control functions including cascade loops, ratio control, feedforward compensation, and batch sequencing . It offers deterministic control execution for critical process applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 620-0071 |
| Product Type | Logic Manager Module |
| System Compatibility | IPC 620 Series, TDC 3000 |
| Communication Protocol | UCN (Universal Control Network) |
| Processing Architecture | Dual-redundant capable |
| Memory Capacity | Expandable configuration |
| Power Requirements | 24V DC nominal |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 265 x 60 x 170 mm (approx.) |
| Weight | 1.0 – 1.2 kg |
| Mounting | Standard IPC 620 rack-mount |
| Firmware Revision | V.R 2.5 HR06/07 |
| Compliance | CE, UL, CSA certified |
| Country of Origin | USA |
Key Features
Dual-Redundant Architecture – The module supports hot-standby redundancy configurations with automatic failover capabilities, ensuring uninterrupted operation .
UCN Communication Protocol – This interface enables high-speed data exchange across the Universal Control Network, facilitating seamless integration with TDC 3000 systems .
Advanced Logic Execution – The module executes complex control strategies including cascade loops, ratio control, and feedforward compensation for precise process management .
Expandable Memory Configuration – Users can scale the memory capacity to meet specific application requirements, providing flexibility for various control tasks .

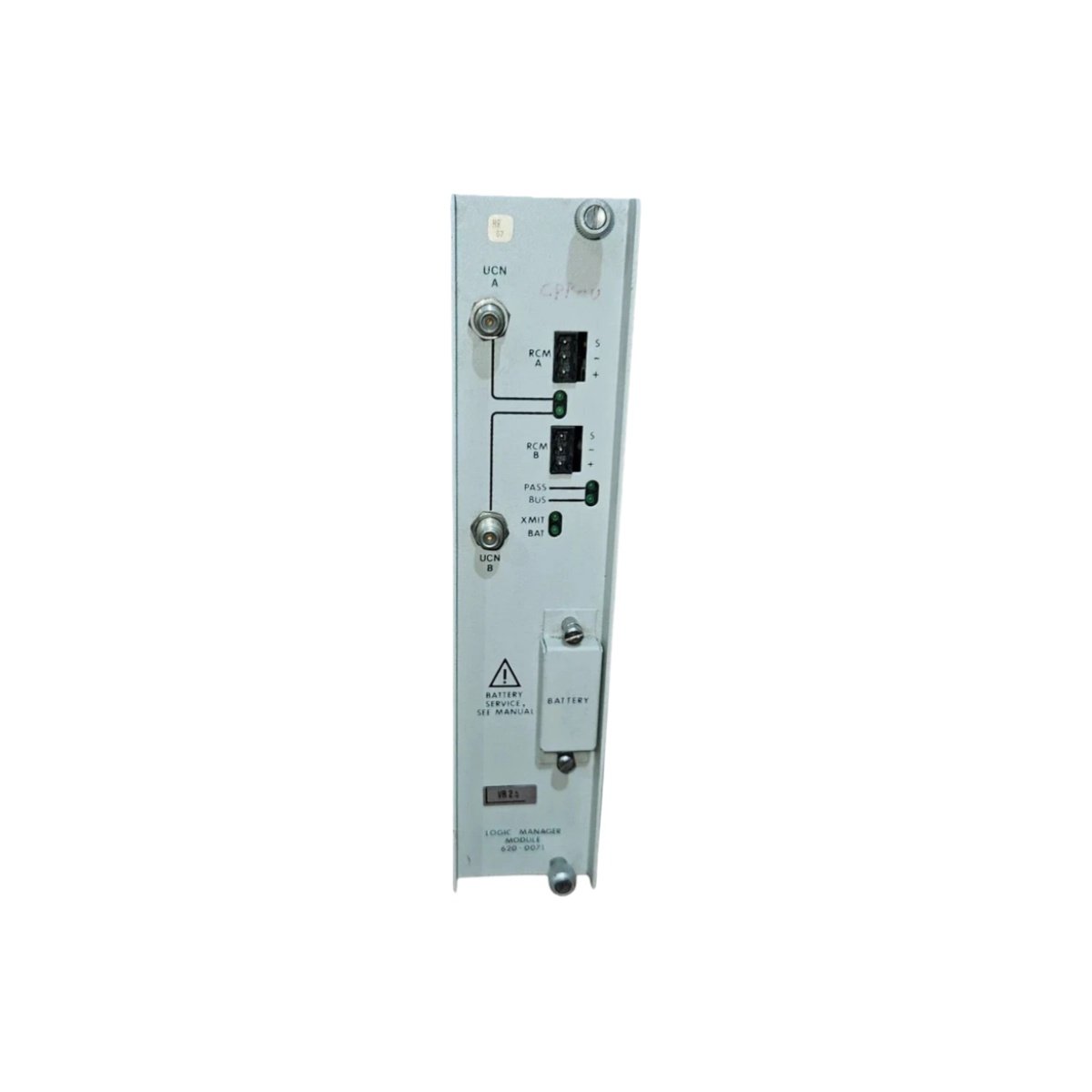

Diagnostic LED Indicators – Status displays provide immediate visual feedback on communication activity and fault detection .
Tool-Less Installation – Keyed connectors and rack-mounting design enable rapid module replacement within IPC 620 chassis .
Applications
The Honeywell 620-0071 excels in demanding industrial environments requiring precise sequential control and regulatory compliance . It performs reliably in oil and gas refineries, chemical processing plants, power generation facilities, pharmaceutical manufacturing, and pulp and paper operations .
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
