Technical Overview

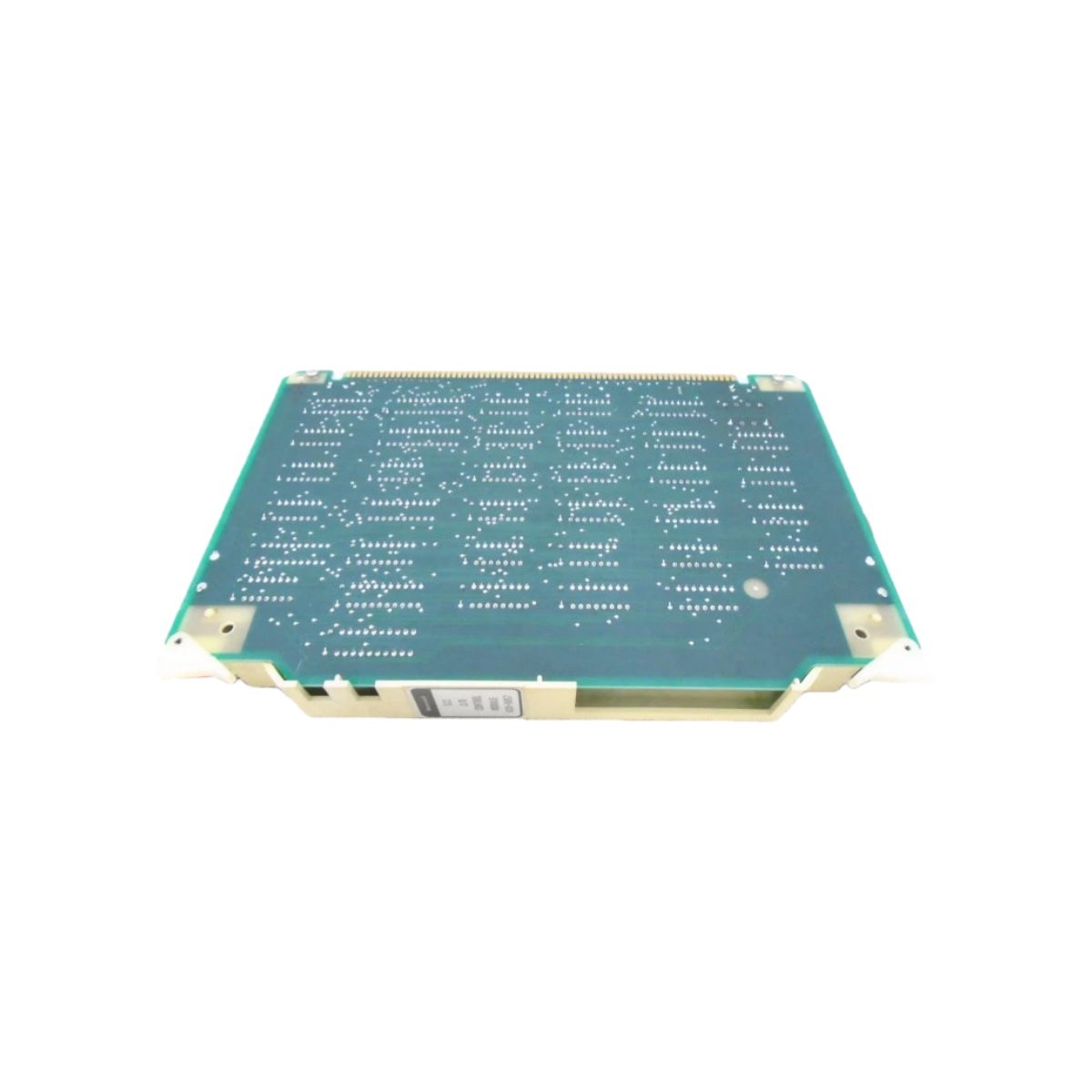

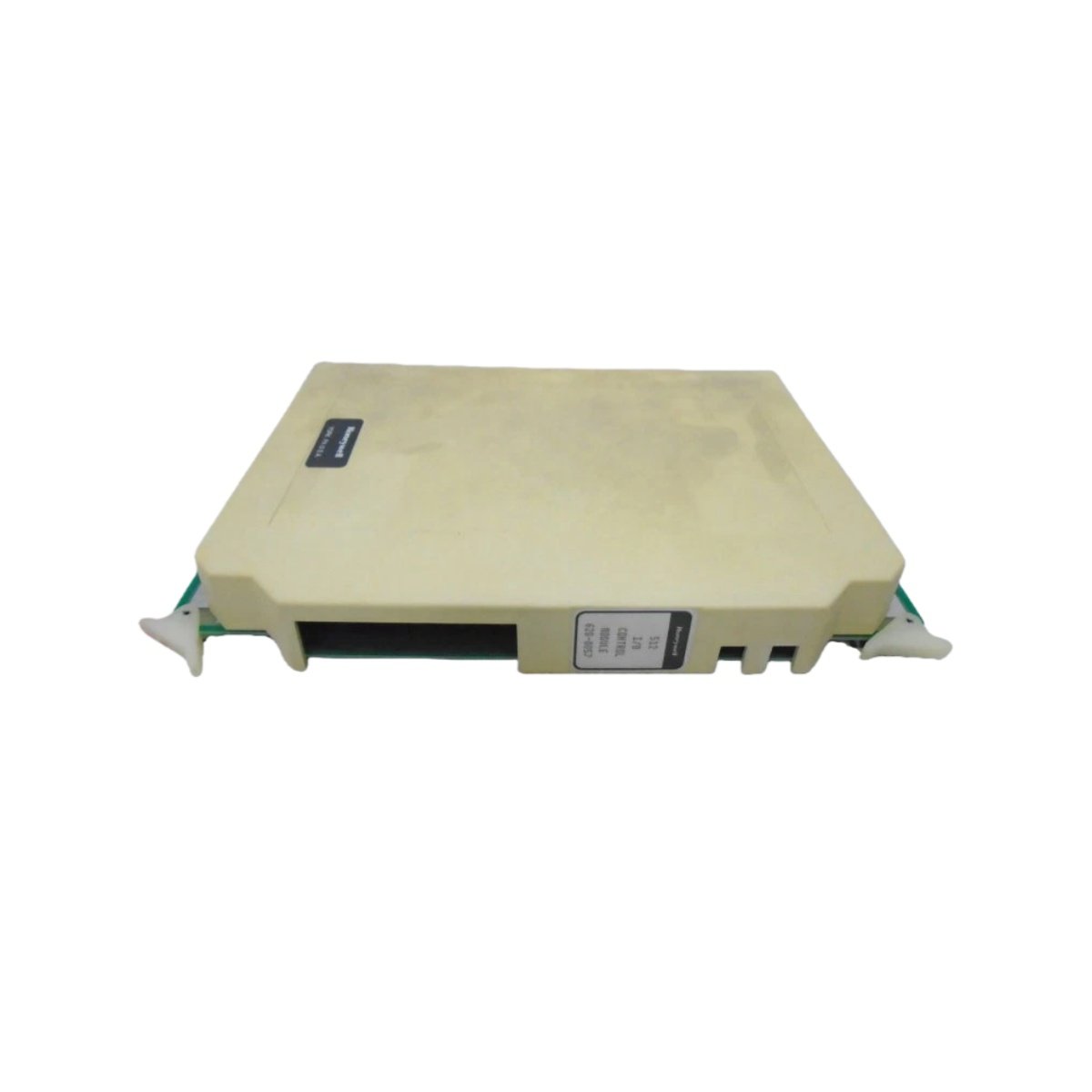

The Honeywell 620-0057 is a high-density I/O control module designed for the IPC 620 programmable controller series . This unit manages digital signal exchange between the main processor and field devices, handling up to 128 I/O points . It uses the 620-0057 to communicate with remote I/O racks via a twisted-pair cable . A removable terminal strip simplifies field wiring, thereby reducing installation time and maintenance effort . This module also supports hot-swapping for minimal process interruption.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 620-0057 |
| Product Type | I/O Control Module |
| System Compatibility | Honeywell IPC 620 Series |
| I/O Points | 128 maximum |
| Input Channels | 32 (digital) |
| Output Channels | 32 (digital) |
| Input Voltage | 24 VDC ±10% |
| Output Voltage | 24 VDC ±10% |
| Output Current | 0.5A per channel (continuous) |
| Communication Interface | RS-485, Modbus RTU |
| Power Consumption | 5 W typical |
| Mounting Type | Rack-mounted |
| Dimensions | 33 × 274 × 171 mm |
| Weight | 0.4–0.6 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Certifications | CE, UL508 |
| Country of Origin | USA |
Key Features
High-Density I/O Capacity – This module supports up to 128 I/O points, therefore efficiently managing large field device populations.
Hot-Swap Capability – Users can replace the module without powering down the system, thereby maintaining continuous operation.
Flexible Communication – The RS-485 interface with Modbus RTU enables straightforward integration with host systems.
Removable Terminal Strip – The detachable wiring connector simplifies field installation and accelerates maintenance procedures.
Industrial-Grade Construction – The rugged design withstands harsh environments with wide temperature tolerance.
Diagnostic LEDs – Status indicators provide real-time feedback for power, communication, and I/O health.
Applications
The Honeywell 620-0057 performs reliably in manufacturing automation, process control, and material handling systems. It suits applications requiring high-density digital I/O management in distributed control architectures.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
