Technical Overview

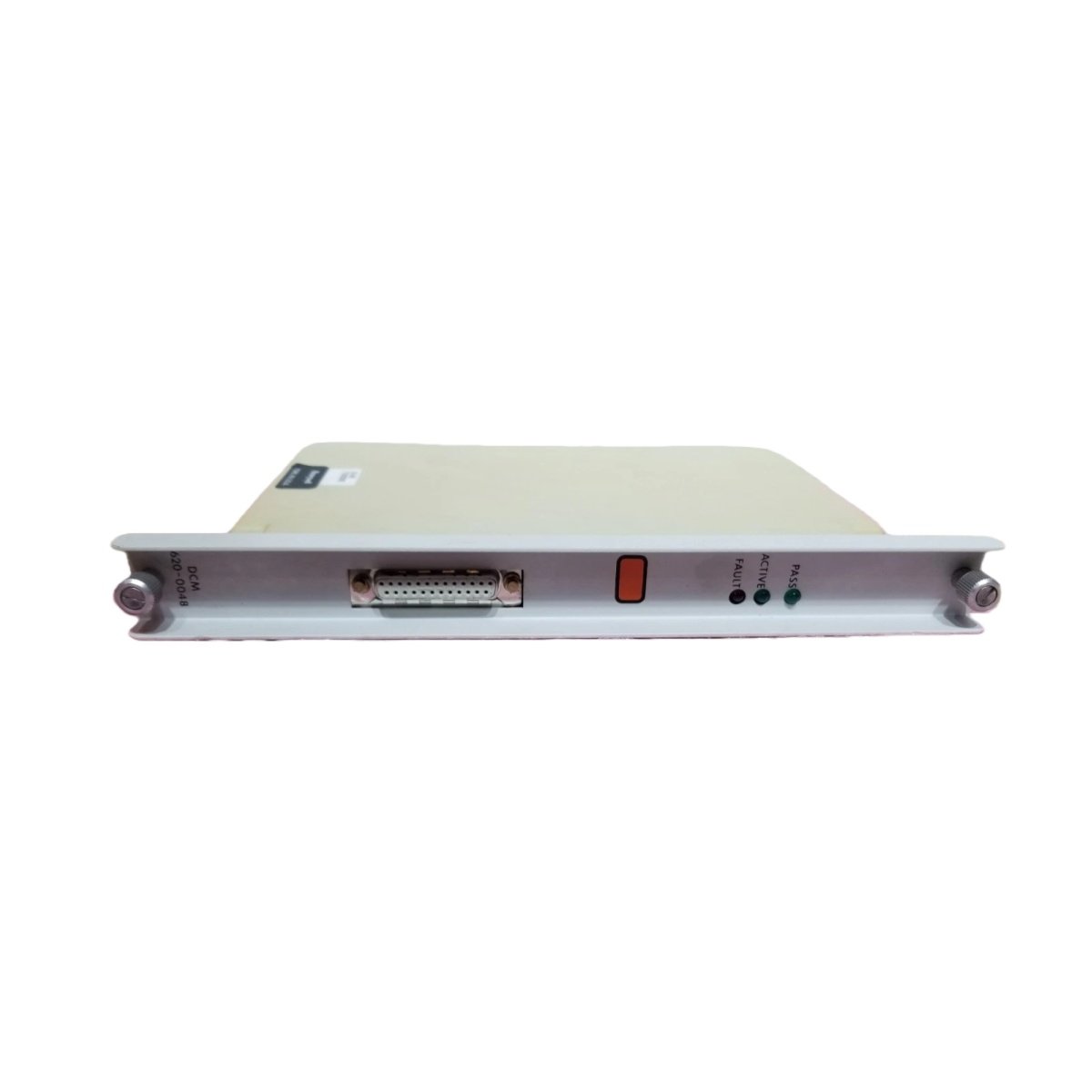

The Honeywell 620-0048 is a Data Control Module (DCM) designed for the IPC 620 programmable controller series. This unit manages communication between the main processor and remote I/O racks over a twisted-pair cable. It supports up to 128 I/O points and provides a scanner interface for data exchange. The module includes a removable terminal strip for simplified field wiring. A 4-position DIP switch on the module allows users to configure the address and communication parameters. The Honeywell 620-0048 mounts directly into the IPC 620 chassis and connects via the backplane for seamless integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 620-0048 |
| Product Type | DCM (Data Control Module) |
| System Compatibility | Honeywell IPC 620 Series |
| I/O Points Supported | 128 maximum |
| Communication Interface | RS-485 |
| Communication Protocol | Modbus RTU |
| Transmission Distance | Up to 1,200 meters |
| Power Consumption | 5 W typical |
| Configuration | 4-position DIP switch |
| Mounting Type | Rack-mounted |
| Dimensions | 33 × 274 × 171 mm |
| Weight | 0.4–0.6 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Certifications | CE, UL508 |
| Country of Origin | USA |
Key Features
Remote I/O Communication – The DCM facilitates data exchange between the processor and distributed I/O racks.
RS-485 Interface – This standard communication port ensures reliable data transmission in industrial environments.
Extended Transmission Distance – The module supports cable runs up to 1,200 meters, enabling flexible system layouts.
DIP Switch Configuration – Users can set module addresses and parameters easily without special software.
Removable Terminal Strip – The detachable connector simplifies field wiring and accelerates maintenance.
Diagnostic LEDs – Status indicators provide real-time feedback for power, communication, and network health.
Applications
The Honeywell 620-0048 performs reliably in distributed control systems, remote I/O management, and process automation. It suits industries such as manufacturing, chemical processing, and material handling where reliable data communication is essential.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
