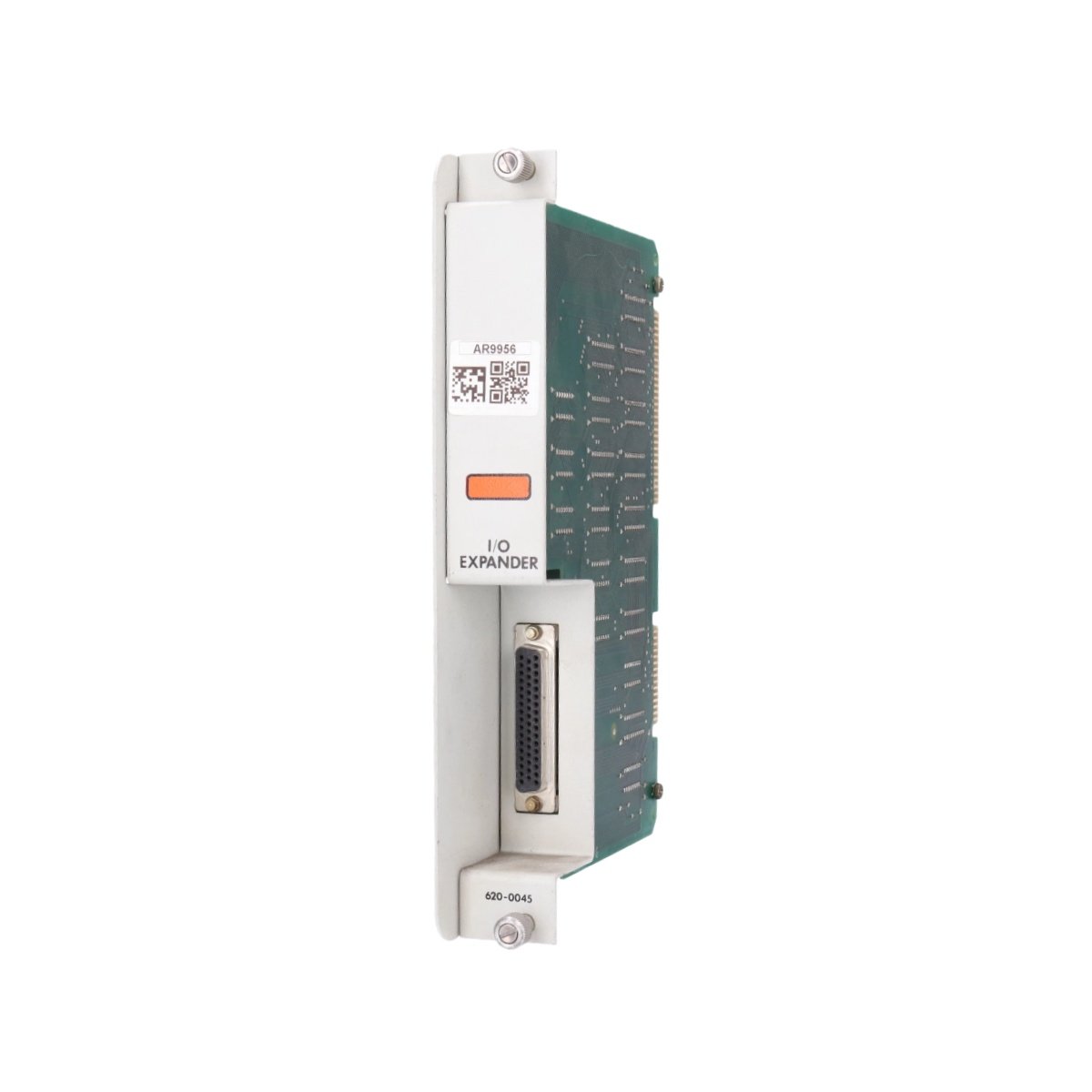

This system I/O expander module adds additional input channels to Honeywell 620 series controllers. It connects to the main CPU via the backplane bus for data exchange. Therefore, this component increases I/O capacity without replacing existing hardware.

Physical Dimensions and Weight Specifications

The Honeywell 620-0045 occupies one standard slot in the 620 series rack. Its housing measures 220 mm in depth for backplane connectivity. The module weighs approximately 0.45 kg for straightforward handling. Consequently, technicians can install this unit without additional rack reinforcement.

Interface Types and Connection Layout

The Honeywell 620-0045 provides a 48-pin front connector for sensor wiring. A 20-pin backplane connector supplies power and data from the CPU. The front panel carries LED indicators for each active input channel. Hence, operators can monitor signal states at a quick glance.

Component Count and Channel Configuration

This I/O expander module contains one main board with 16 digital input channels. Each channel uses an optocoupler for electrical isolation from the field. You will also find a built-in RC filter for noise rejection. An onboard LED driver illuminates the front panel indicators for active channels.

Energy Storage and Power Consumption

The Honeywell 620-0045 draws 80 mA from the 5V backplane supply. It also requires 10 mA per active channel from the 24V field supply. A small capacitor bank absorbs voltage spikes from long sensor cables. This storage protects the optocouplers from damage during switching events.

Signal Processing and System Integration

The module scans all 16 inputs within a 6 ms cycle time. It updates the CPU with fresh data after each scan completes. Users can connect this unit directly to 2-wire proximity sensors. This direct connection reduces cabinet space and terminal block requirements.
