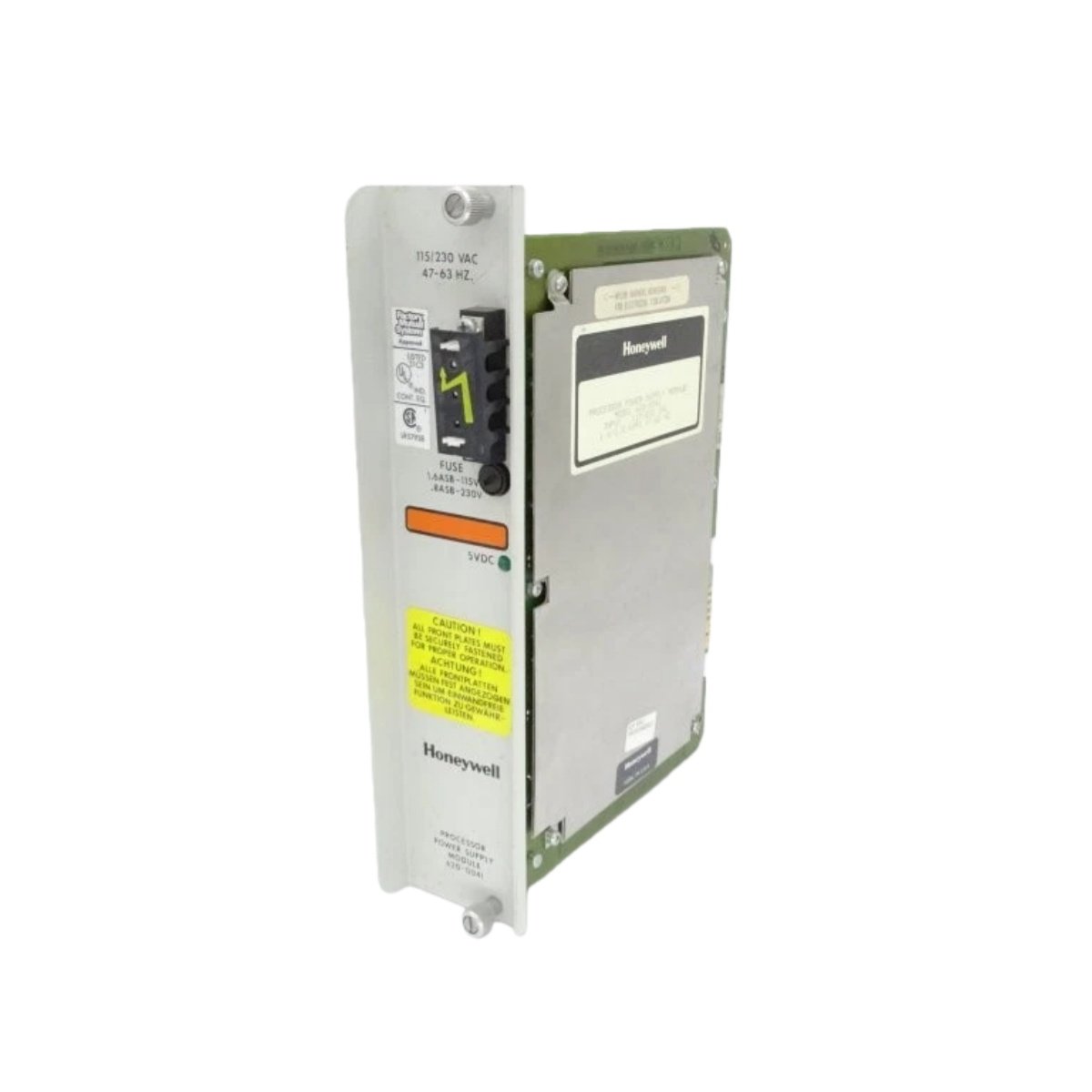

This power supply module provides regulated DC power for Honeywell 620 series processor and I/O modules. It converts incoming AC line voltage to stable DC power for system operation. Engineers choose this unit for its wide input range and reliable power delivery.
Technical Specifications & Mechanical Data
The Honeywell 620-0041 accepts either 115V or 230V AC input with automatic selection capabilities. It delivers sufficient current capacity to support the processor along with multiple I/O modules. The module mounts directly into the 620 series rack for seamless system integration.
| Parameter | Specification |
|---|---|
| Model | Honeywell 620-0041 |
| Category | Power Supply Module / Processor Power Supply |
| Input Voltage | 115 VAC or 230 VAC (selectable) |
| Input Frequency | 47 – 63 Hz |
| Output Current (115V) | 1.6 A |
| Output Current (230V) | 0.9 A |
| Output Voltage | 5 VDC (regulated) |
| Power Rating | Approximately 8 W (115V) / 4.5 W (230V) |
| Efficiency | 70% typical |
| Dimensions (W x H x D) | 120 mm x 250 mm x 150 mm |
| Weight | Approximately 1.1 kg |
| Operating Temperature | 0°C to 60°C |
| Mounting Type | Rack-mounted (620 series chassis) |
Design and Integration
This power supply occupies a dedicated slot within the 620 series rack configuration. It features a voltage selector switch for easy adaptation to regional power standards. Consequently, engineers can deploy the same module across different geographical locations without modification.
Furthermore, the 620-0041 includes built-in overcurrent protection for safeguarding connected components. Field technicians can replace the module without disturbing the existing wiring or backplane connections. This design simplifies maintenance and reduces system downtime during power supply failures.
Performance and Reliability
The module delivers clean DC power with minimal ripple for stable processor operation. It stores no user data independently, functioning solely as a power conversion unit. For industrial automation applications, Honeywell engineers designed this power supply to provide consistent performance across varying line conditions.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
