Product Overview

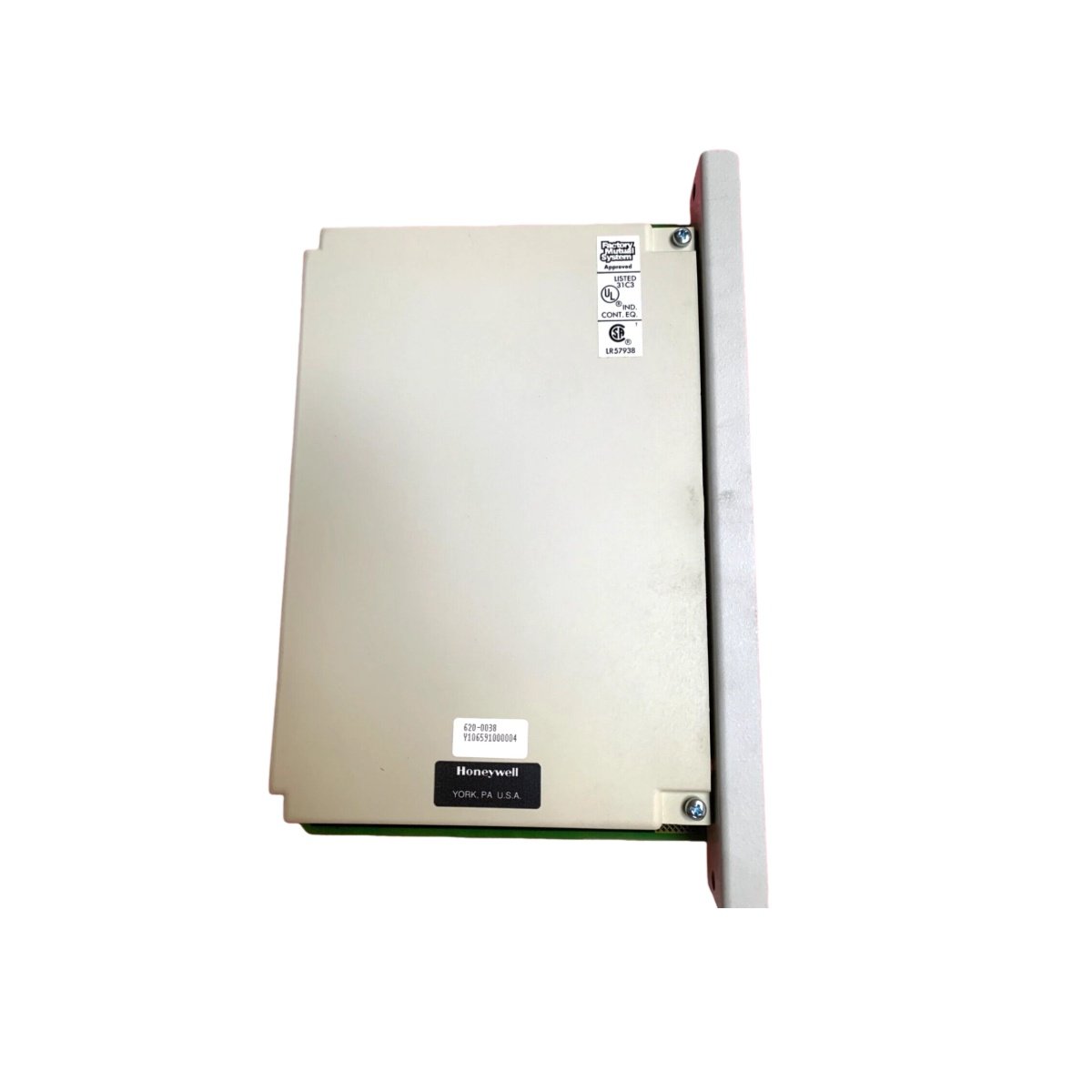

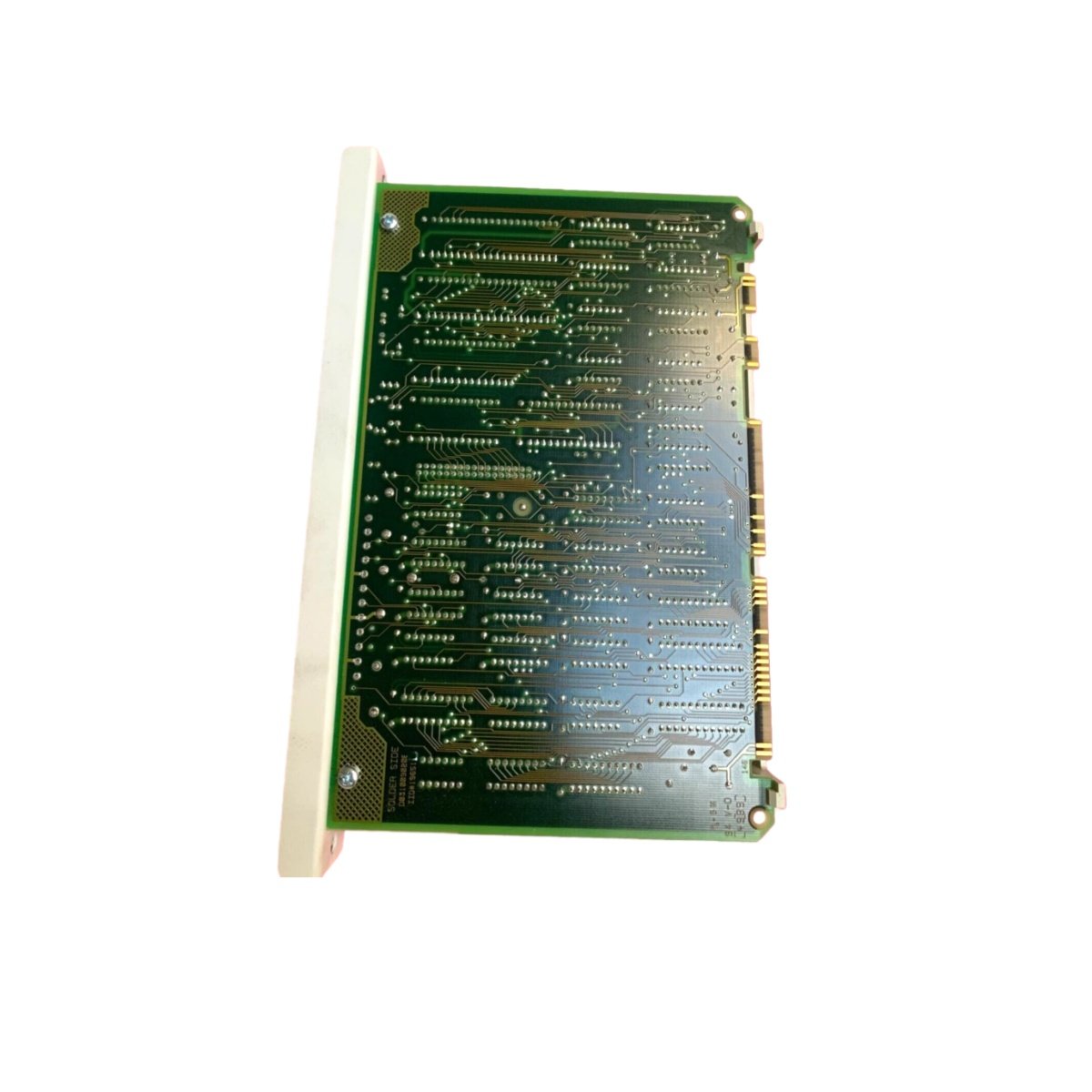

The 620-0038 serves as a control network module within Honeywell’s UCN (Universal Control Network) system . This module enables high-speed data exchange between controllers, I/O modules, and operator interfaces . It supports deterministic communication and redundant network configurations for mission-critical environments . The unit provides robust error detection to maintain system integrity and minimize downtime.
Key Specifications
| Parameter | Specification |
|---|---|
| Model | 620-0038 |
| Product Type | UCN Control Network Module |
| Power Supply | 18-30 VDC typical, 24V DC |
| Current Draw | 127mA maximum at terminal block |
| Fiber Optic Ports | 2 ports (SC connector) |
| Fiber Type | Single Mode, 9/125μm core/cladding |
| Weight | 0.4–1.5 kg (varies by configuration) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% RH, non-condensing |
Communication & Connectivity
The 620-0038 supports multiple protocols including Honeywell proprietary, Ethernet/IP, and Modbus TCP/IP . It provides 4–8 network ports with electrical isolation from the system backplane . Two fiber optic ports with SC connectors enable long-distance communication up to 10 kilometers . Users can mount the module on a DIN rail with an external power supply.
Hardware Options
The module offers flexible mounting choices including IOTA and DIN rail configurations . The optical budget typically reaches 15dB, supporting standard cables over 10km distances . This product originates from the United States with a typical shipping weight of 0.7kg . Rack-mounted or panel-mounted options suit various installation requirements .
Environmental Compliance
The unit operates reliably from -40°C to +85°C across demanding industrial environments . It carries CE, UL, and CSA certifications for international use . The module meets IEC 61508 standards for functional safety applications.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
