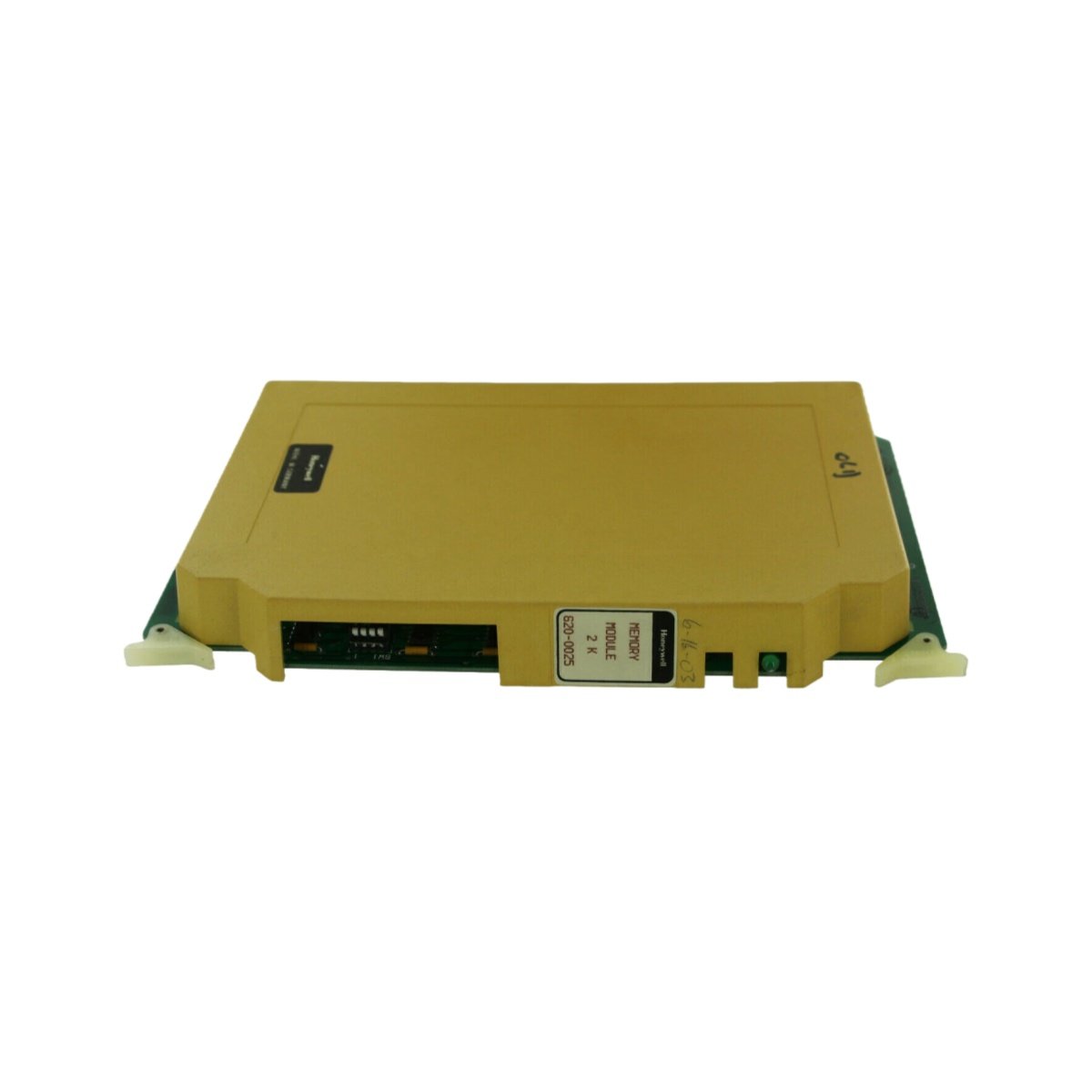

The Honeywell 620-0025 memory module provides 2k of non-volatile CMOS RAM storage for the IPC 620 programmable controller series . This module expands the system memory capacity to accommodate more complex user programs and process data. It ensures program and data retention during power outages, maintaining system integrity.
Technical Specifications of Honeywell 620-0025
The Honeywell 620-0025 memory module uses CMOS RAM technology for low power consumption and reliable data storage . It provides a storage capacity of 2k words . This memory module interfaces with the IPC 620 processor through the backplane bus . It works with the IPC 620-20 CPU and other compatible controllers . The battery in the CPU power module maintains memory content when the main power is off . A dead battery will result in memory loss and require program reloading .
| Parameter | Specification |
|---|---|
| Model Number | Honeywell 620-0025 |
| Product Type | Memory Module |
| Product Family | IPC 620 |
| Memory Type | CMOS RAM (Non-volatile) |
| Storage Capacity | 2k words |
| Compatible Systems | IPC 620-20, IPC 620-25, IPC 620-35 |
| Data Retention | Requires CPU battery backup |
| Bus Interface | IPC 620 backplane |
| Application | Industrial Control Systems |
| Product Lifecycle | Discontinued / Legacy Spare Part |
Integration and Application
The Honeywell 620-0025 memory module installs in the designated memory slot within the IPC 620 processor rack . It stores user programs, configuration data, and process parameters for the controller. The module retains the program in case of power failure, provided the CPU battery is functional . This memory module serves as a critical spare part for legacy Honeywell IPC 620 systems in the field.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
