Active Thermal Management for High-Density Control Systems

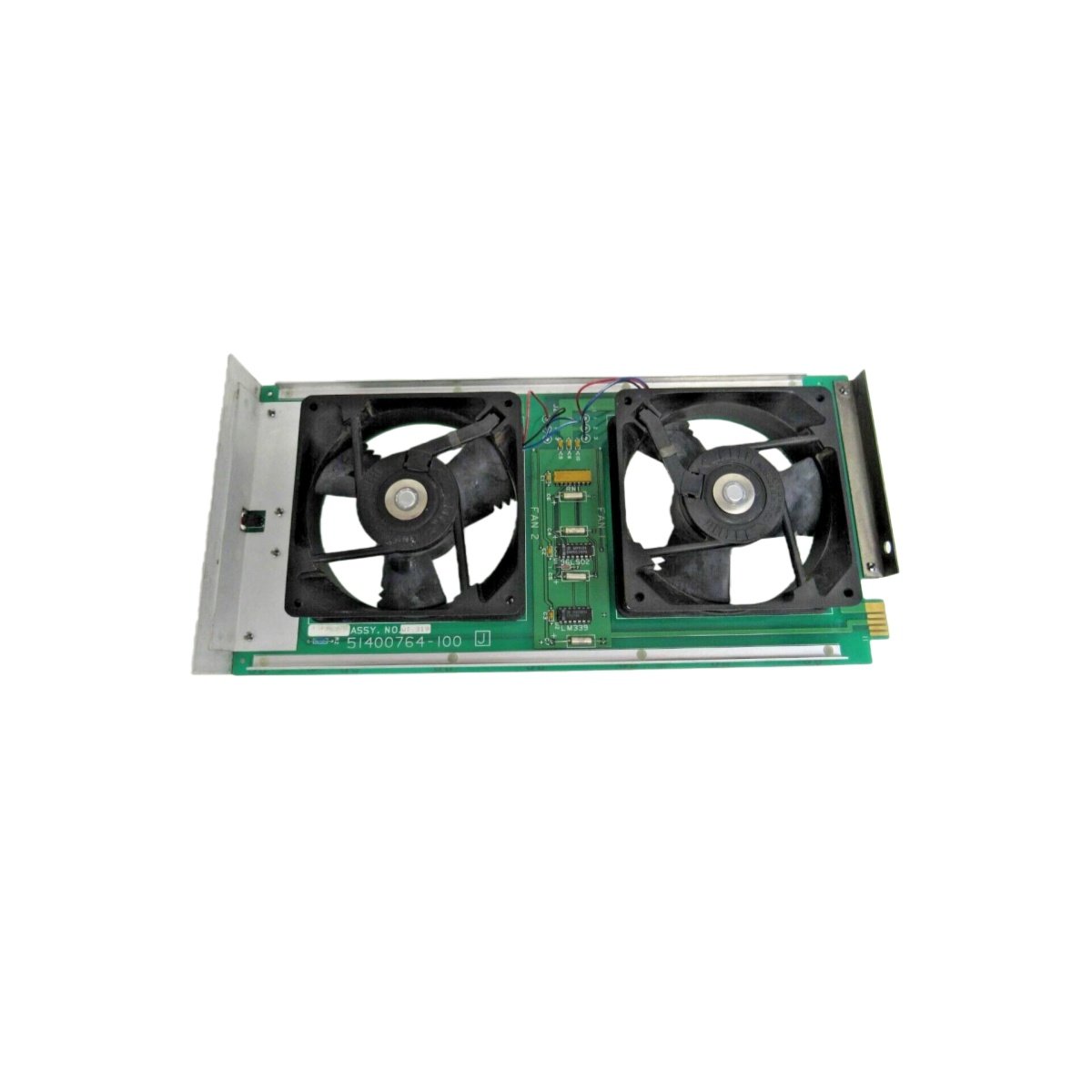

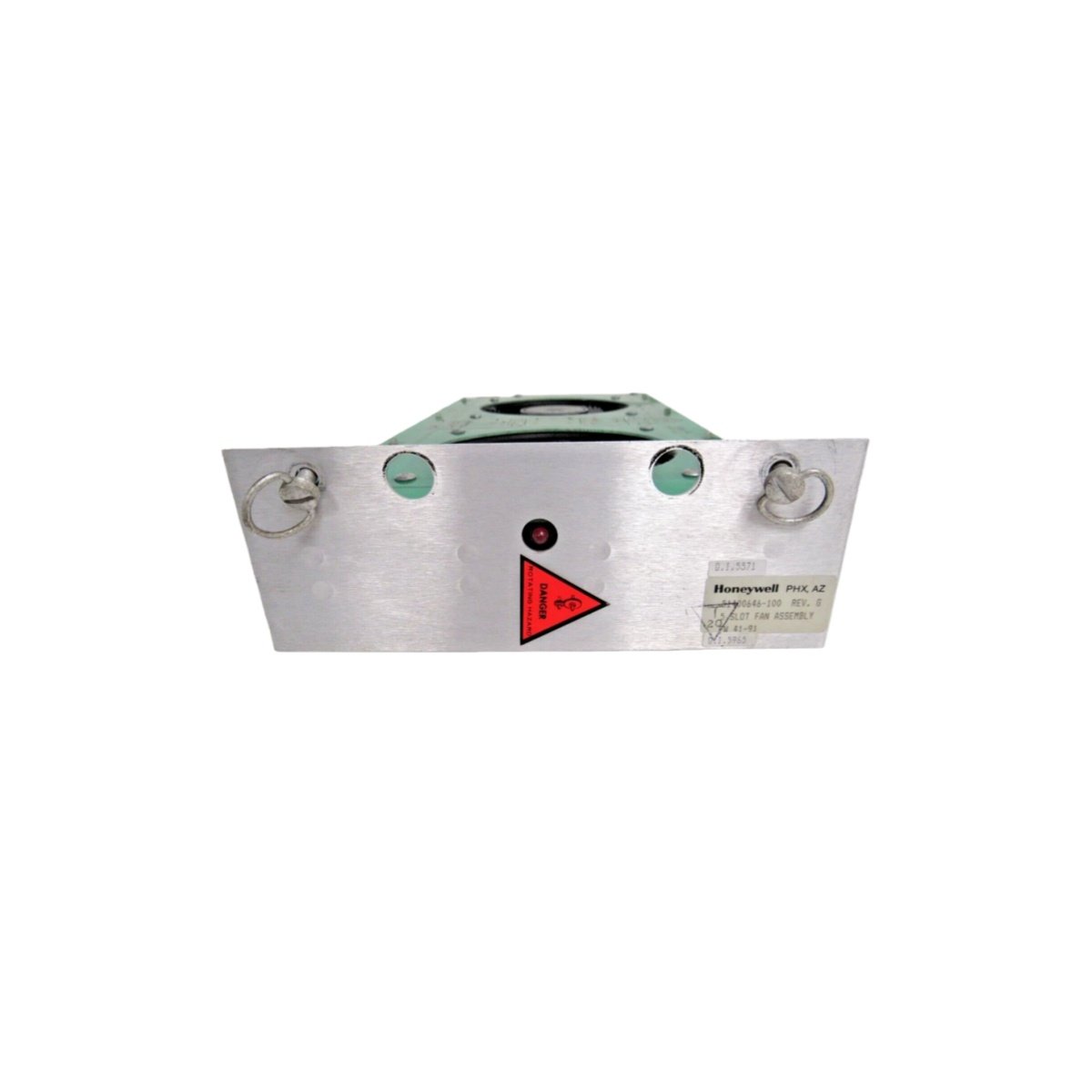

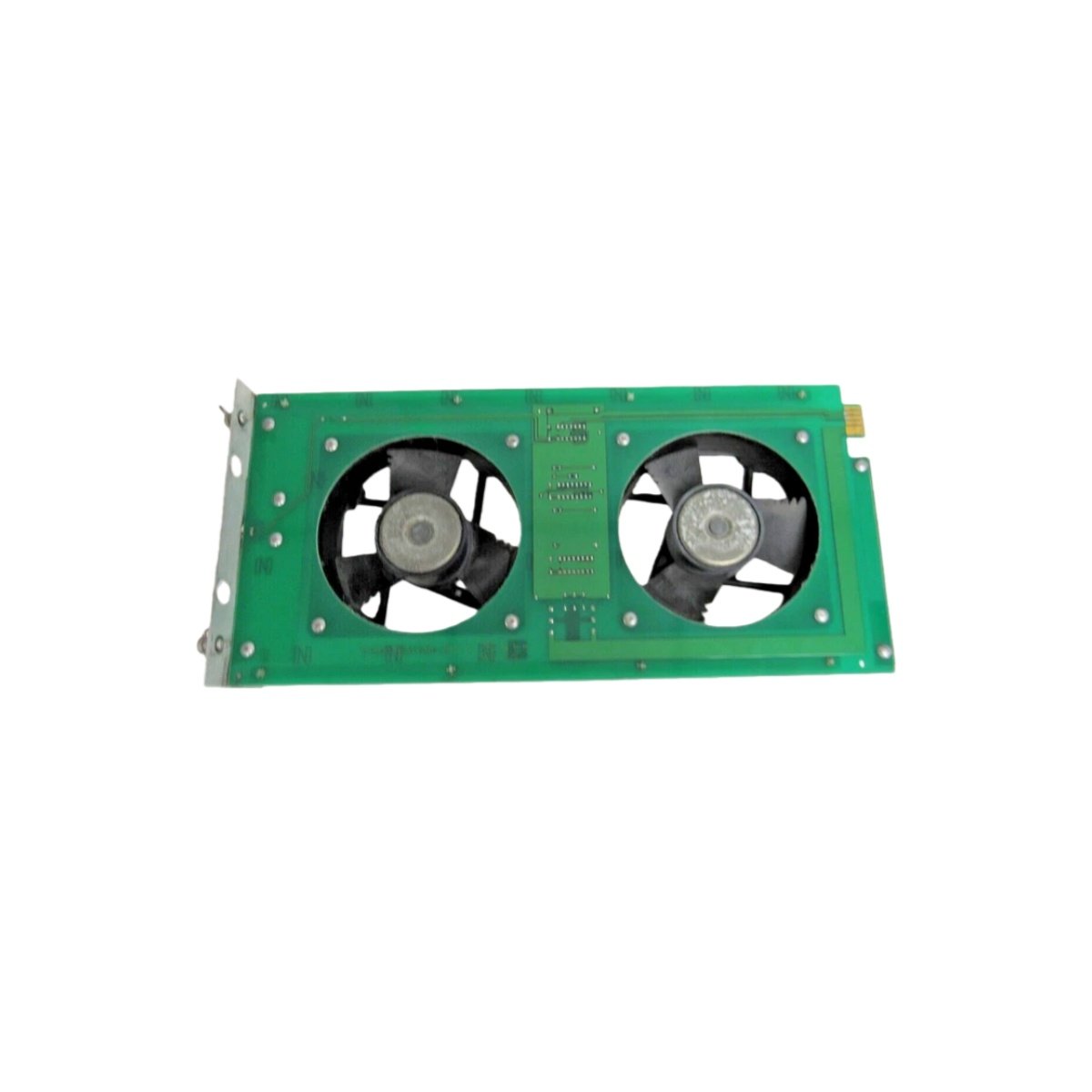

The Honeywell 51400764-100 dual fan assembly circuit board provides active cooling for industrial control cabinets and chassis. This board integrates two high-performance fans into a single PCB assembly for efficient heat dissipation. The unit maintains optimal operating temperatures for critical system components. It mounts directly into Honeywell control system enclosures with standard mounting hardware. The board operates continuously to prevent thermal derating and component failure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Product Type | Dual Fan Assembly Circuit Board |
| Number of Fans | 2 |
| Power Supply | 24 VDC nominal |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Weight | Approximately 0.5 kg (1.1 lb) |
| Dimensions (approx.) | 8.5 × 7.0 × 1.5 inches |
| Connector Type | Standard PCB header connectors |
| Compatibility | Honeywell control system enclosures |
| Certification | UL, CE |
Cooling Performance and System Integration
The Honeywell 51400764-100 delivers consistent airflow to maintain component temperatures within specifications. This board provides redundant fan operation to ensure continued cooling even if one fan fails. It offers automatic thermal protection to prevent system overheating. The assembly fits seamlessly into existing Honeywell cabinets with minimal installation effort. The board’s design also supports easy fan replacement without major system disruption.
Reliability and Maintenance Considerations
The Honeywell 51400764-100 uses high-quality bearings for extended fan lifespan. Regular inspection of fan operation ensures continued thermal performance. The board’s robust construction withstands vibration in industrial environments. The assembly also helps maintain system reliability in high-ambient-temperature locations.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 85 × 65 × 30 mm |
