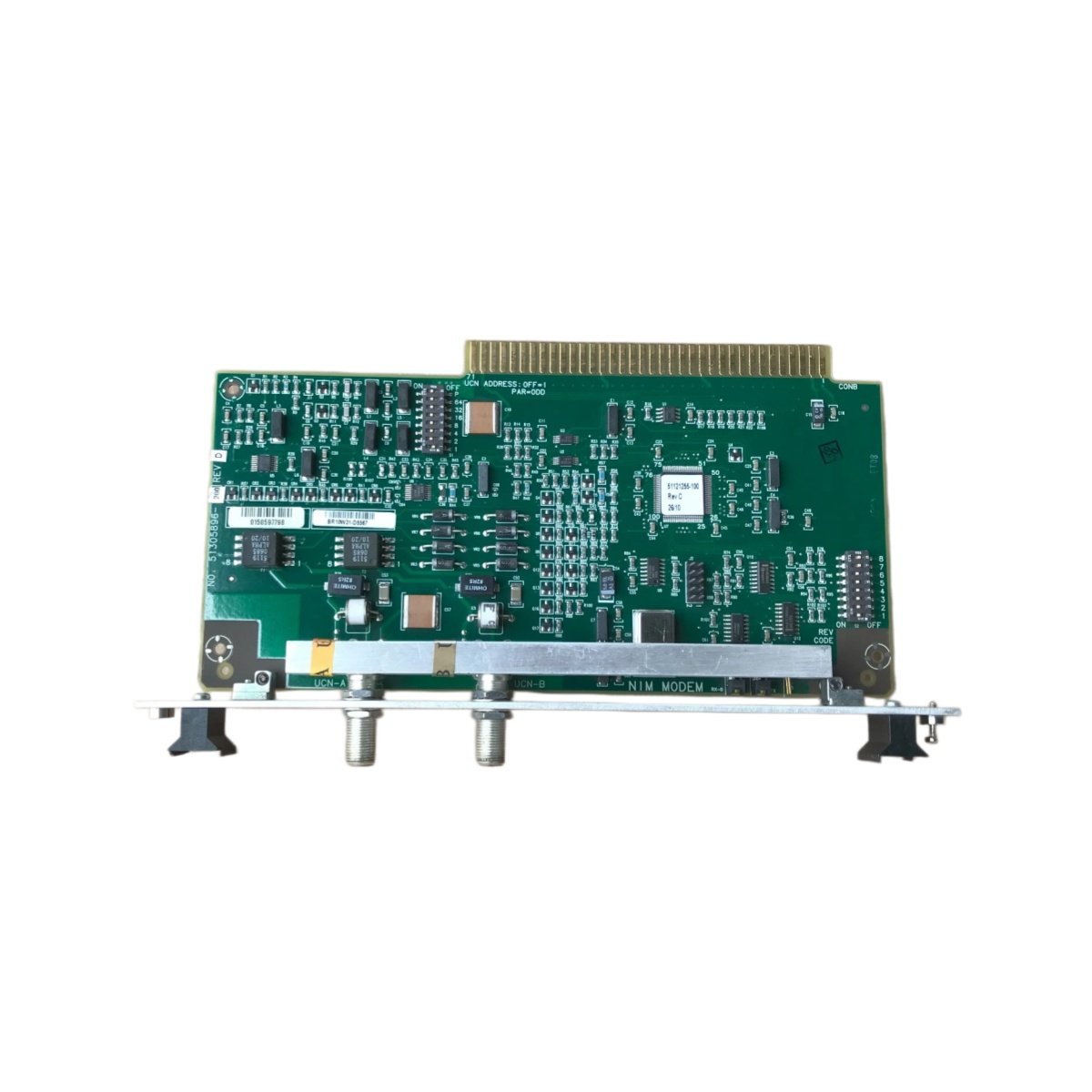

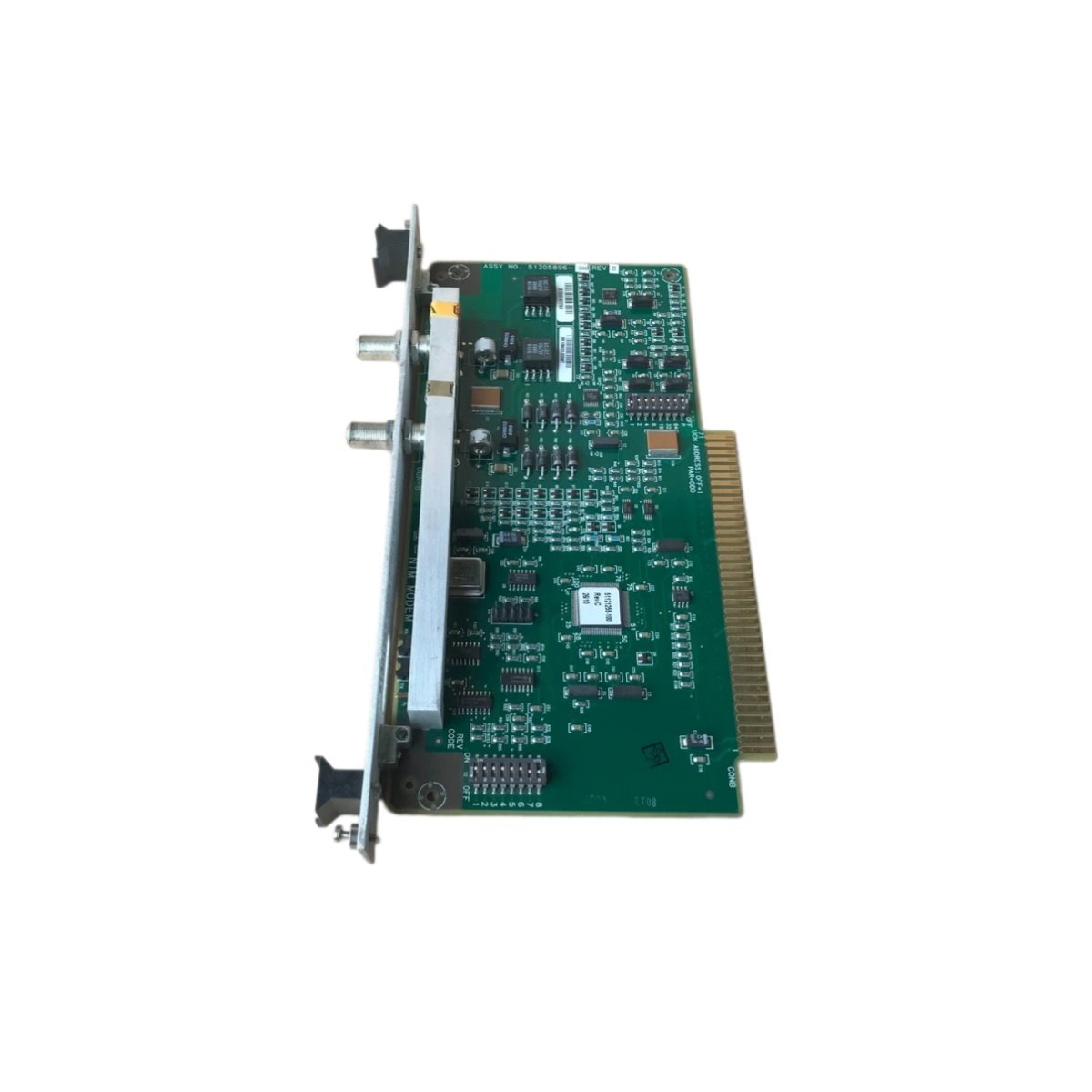

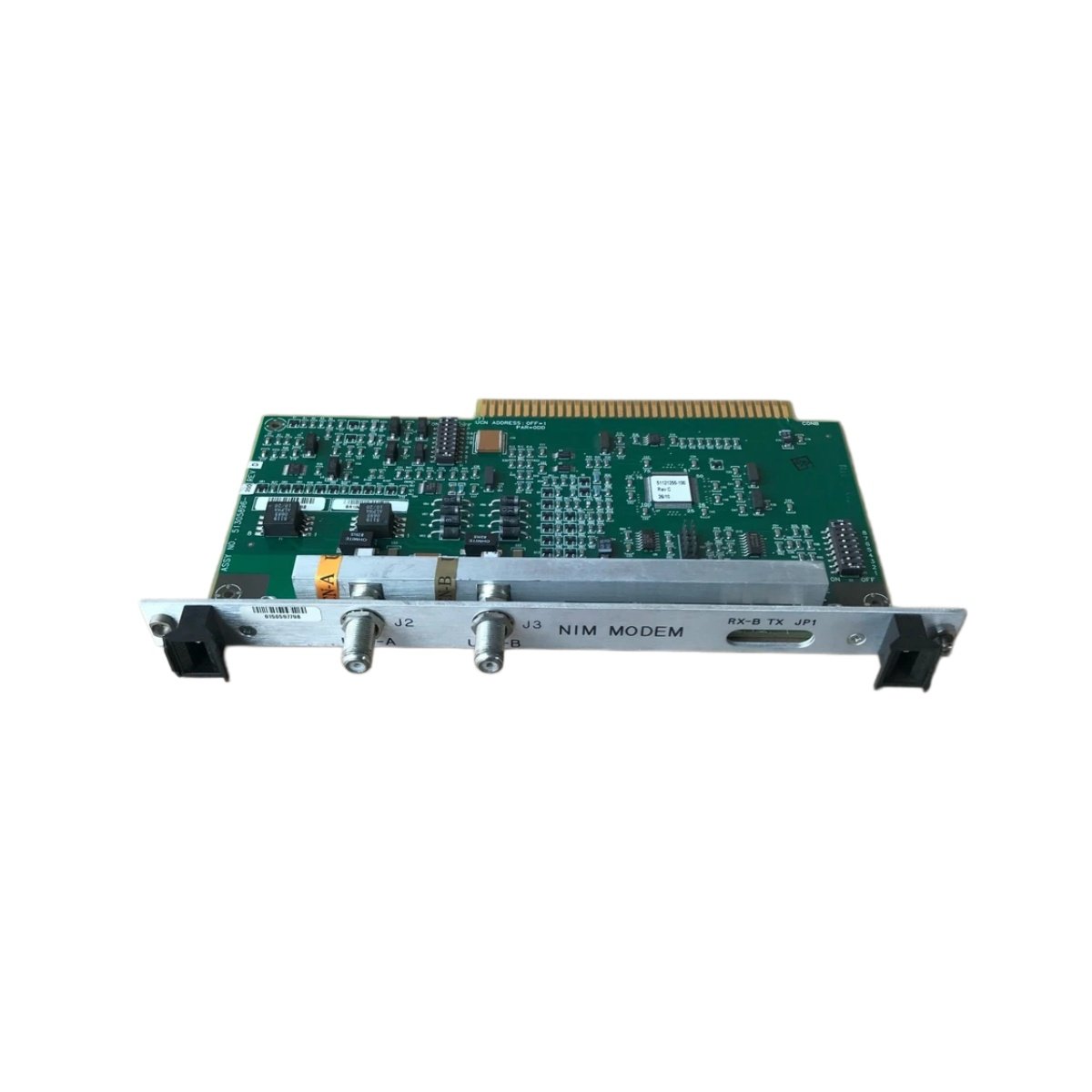

This computer accessory provides interface connectivity for Honeywell TDC 3000 systems. You will find the Honeywell 51305896-200 Computer Accessory managing data exchange between system components. Its compact design fits into standard peripheral mounting locations.

Technical Specifications

This accessory contains one printed circuit board with passive components. You can also locate two mounting brackets for secure installation. The Honeywell 51305896-200 Computer Accessory stores no battery energy for operational purposes. Instead, it uses only passive circuitry for all signal routing tasks. Therefore, this accessory never requires any battery replacement or routine maintenance.

Interface Details

The Honeywell 51305896-200 Computer Accessory requires no external power for its operation. You can mount this accessory inside existing Honeywell system cabinets. The 50-pin header connects to standard TDC 3000 backplane cables. Moreover, the PCB includes test points for signal verification during troubleshooting. This design provides reliable signal routing without active electronic components.

Mechanical Integration and Mounting

You must mount the Honeywell 51305896-200 Computer Accessory using the two included metal brackets. After positioning, secure the assembly using standard M3 screws. The accessory measures exactly 15.5 centimeters in length and 10.5 centimeters in width. Its total weight reaches approximately 0.28 kilograms for easy handling. Furthermore, the board features four additional mounting holes for securing options.

Environmental and Storage Guidelines

You should store this Honeywell 51305896-200 Computer Accessory in a clean dry location away from static. The accessory operates reliably between 0°C and +60°C ambient temperature. Likewise, keep the unit away from conductive dust or excess moisture. Because the board contains no active components, it offers exceptional long-term reliability with zero power consumption.
