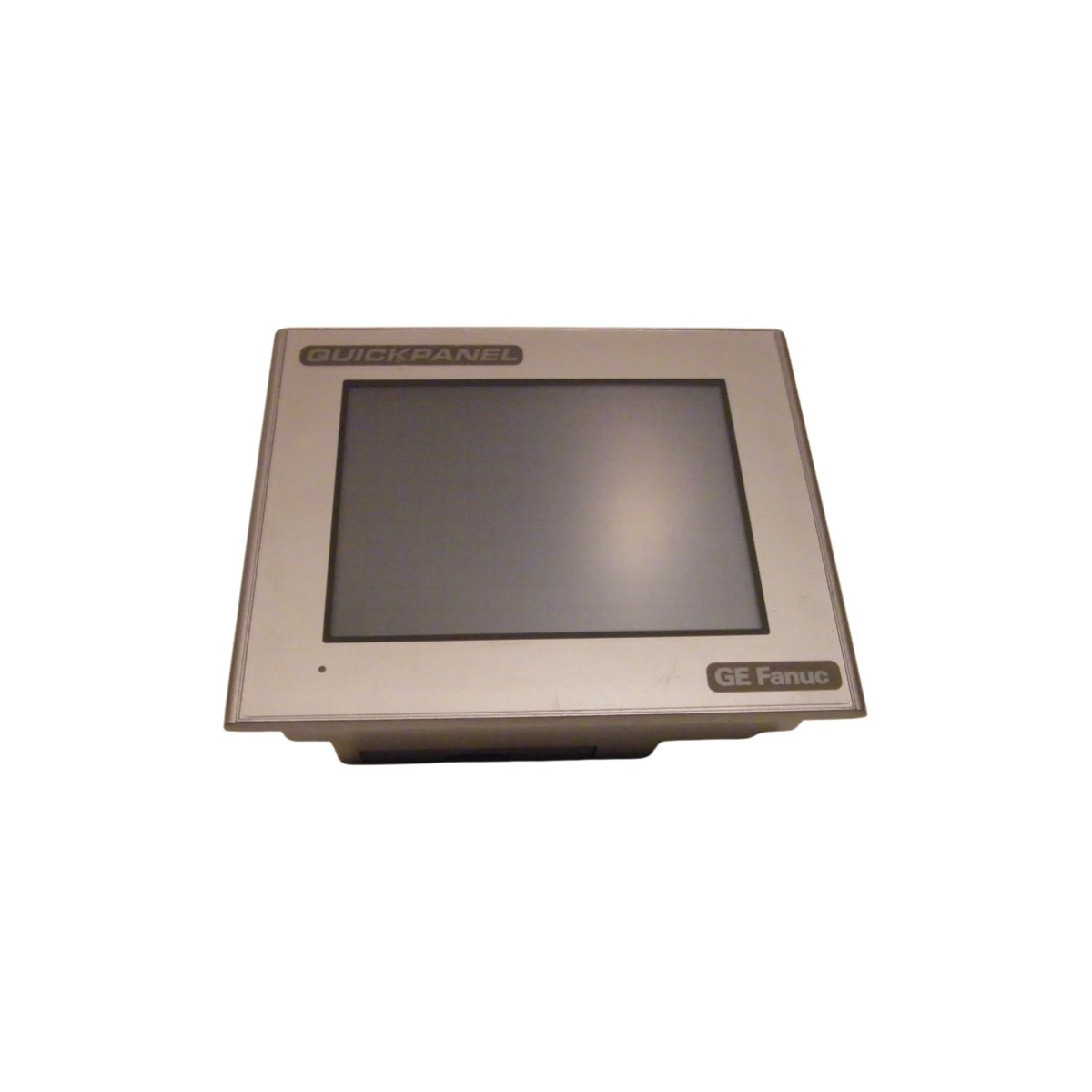

The QPKCGDE0000-A provides operator interface functions inside GE’s industrial control hardware range. This panel measures roughly 12.6 inches wide, 9.8 inches tall, and 2.4 inches deep. Moreover, it weighs about 4.5 pounds, which suits panel-door mounting. Operators rely on the QPKCGDE0000-A for clear status display and responsive control input.
Technical Specifications and Interface Details
The unit combines a color display with configurable input elements for operator interaction. Specifically, it offers a 10.4-inch screen with 640 x 480 pixel resolution. Additionally, the front bezel meets NEMA 4 protection for washdown environments. Rear connectors provide serial and network links to control hardware.
| Parameter | Specification |
|---|---|
| Module Type | Operator Interface Panel |
| Display | 10.4 in color TFT |
| Resolution | 640 x 480 pixels |
| Input | Configurable control elements |
| Dimensions | 12.6 x 9.8 x 2.4 in |
| Weight | ~4.5 lbs |
| Protection | NEMA 4 front panel |
| Interfaces | Serial and network ports |
| Power | 24 VDC nominal |
Energy Storage and Display Stability
Internal capacitors on the QPKCGDE0000-A provide local energy storage for stable backlight drive. Consequently, the display resists flicker during supply fluctuations on the plant floor. This buffering also protects configuration memory during brief outages. The design therefore supports consistent screen performance across long shifts.
Installation and Compatibility Notes
Because the QPKCGDE0000-A mounts through a standard panel cutout, technicians finish installation quickly. They should confirm gasket seating before they tighten the mounting clips. Furthermore, the panel communicates with many control families through configurable drivers. Always store spare units in anti-static packaging to protect sensitive electronics.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
