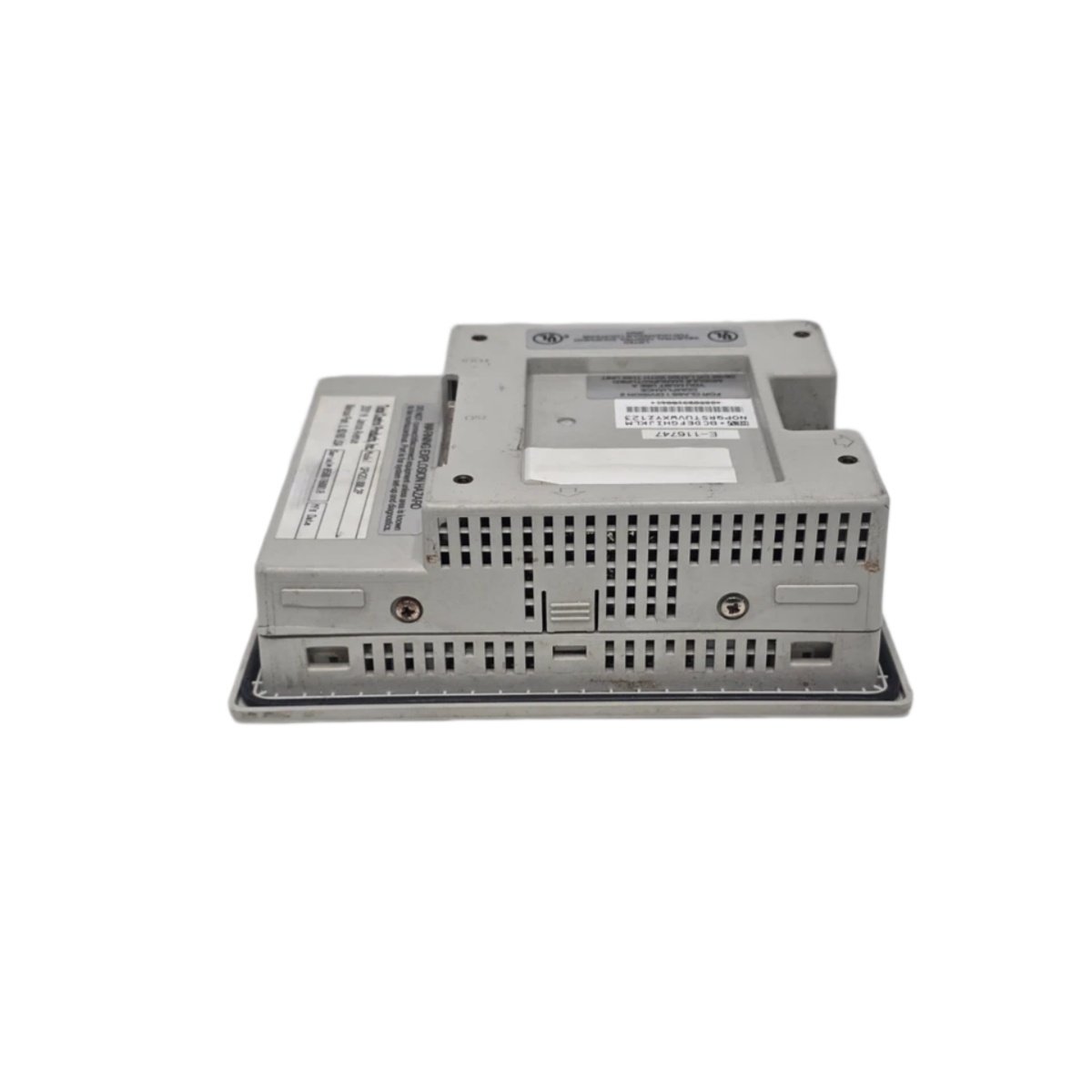

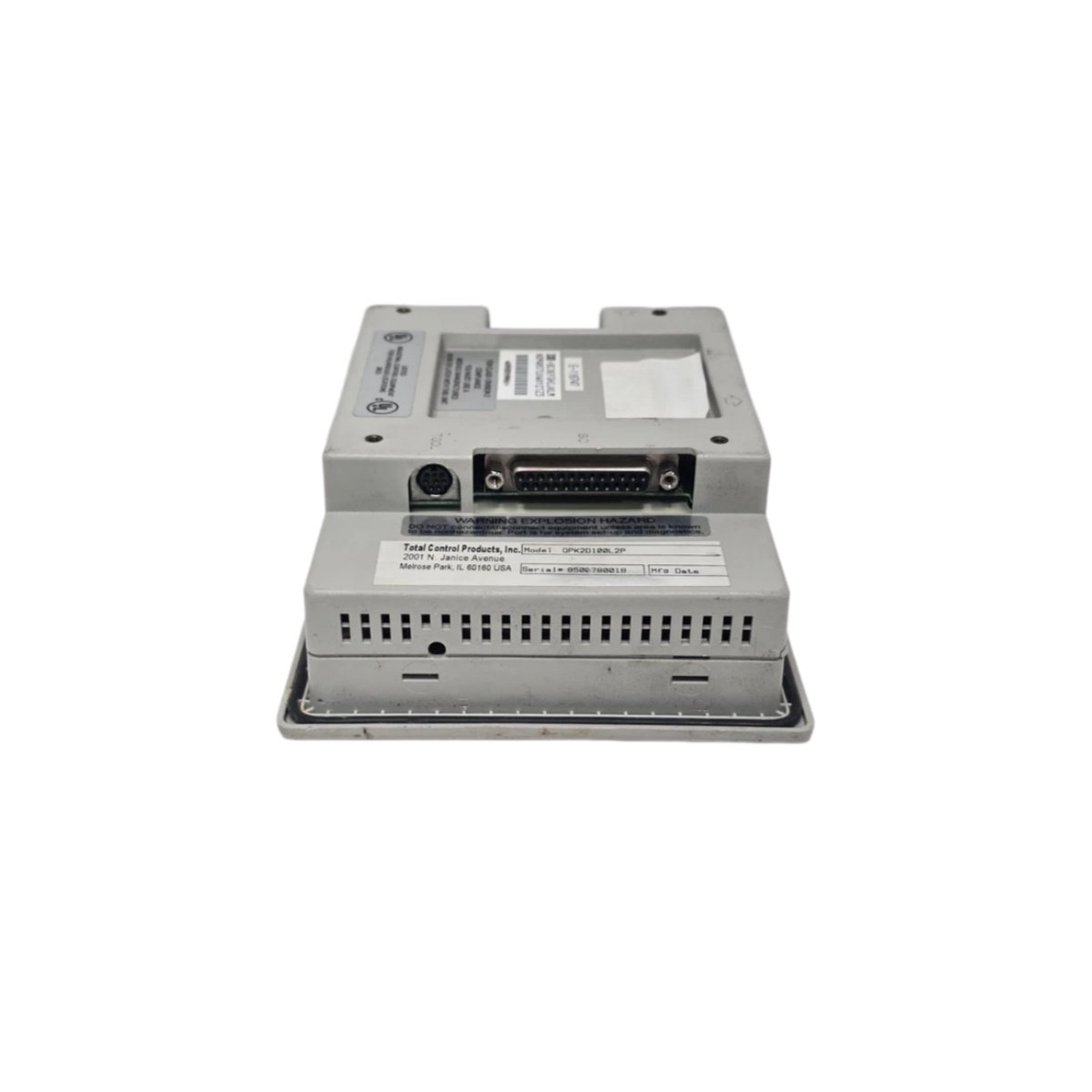

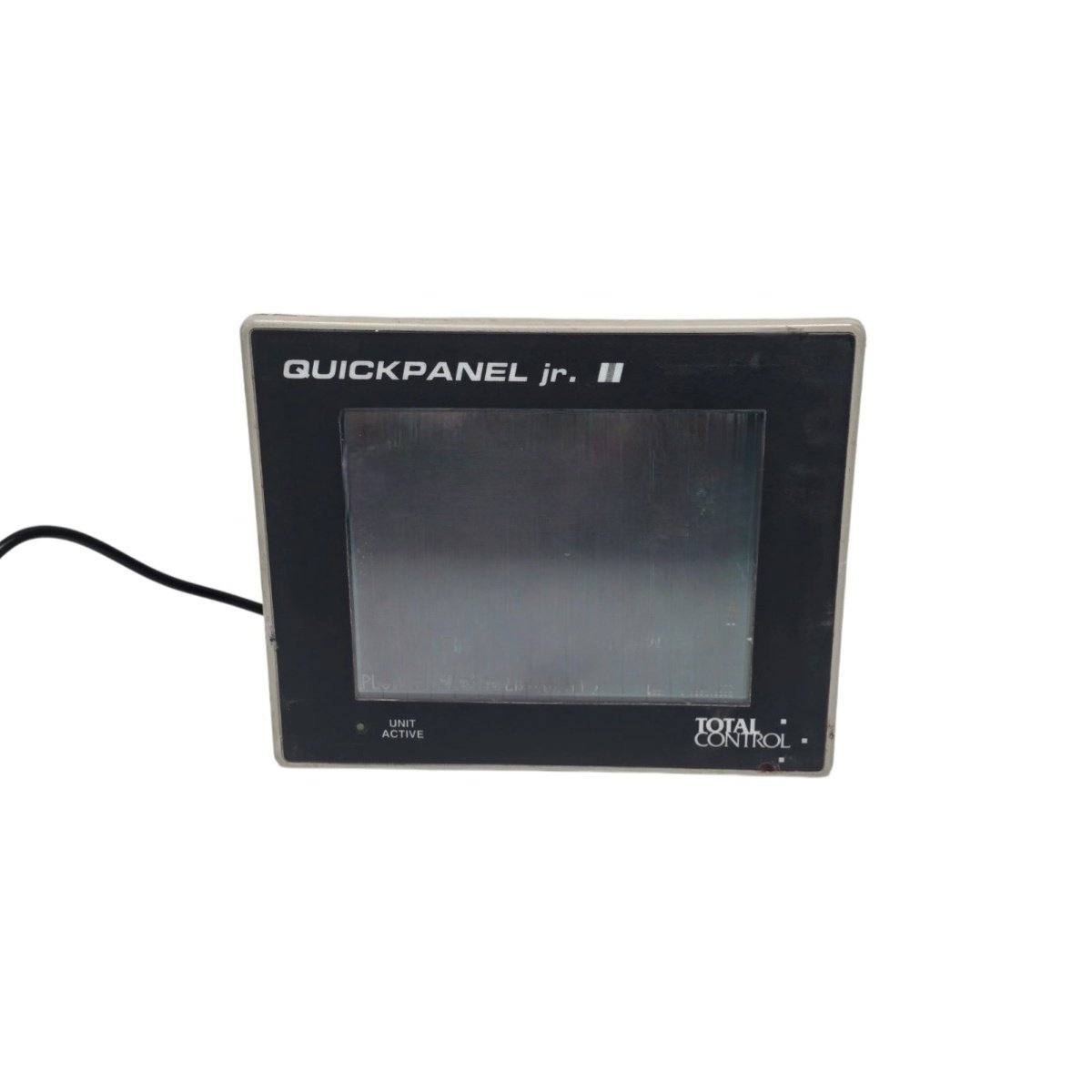

This GE Intelligent Platforms QuickPanel HMI provides a 10.4-inch touchscreen for machine control and monitoring. It displays real-time process data and alarm information for industrial operators. Engineers can configure this unit for diverse applications in manufacturing and processing plants. Its rugged construction ensures reliable performance in harsh factory floor environments. The panel simplifies operator interaction through intuitive graphical user interfaces.
Physical Dimensions and Display Specifications
The HMI measures 11.2 inches in width and 8.7 inches in height. Its housing depth reaches 2.8 inches for compact panel mounting. The unit weighs approximately 4.5 pounds for stable installation on machine enclosures. A 10.4-inch TFT color display delivers 800 x 600 pixel resolution. This screen provides clear visibility under various ambient lighting conditions.
Touch Interface and Operator Controls
The device features an analog resistive touchscreen for accurate finger or stylus input. This touch technology supports gloved-hand operation in industrial environments. The panel includes 10 programmable function keys for one-touch operator commands. These keys provide quick access to frequently used screens and functions. The interface also offers an adjustable backlight for optimal viewing comfort.
Processing Hardware and Memory Configuration
The unit incorporates a 32-bit RISC processor running at 300 MHz. It includes 64 MB of SDRAM for runtime application execution. The panel provides 64 MB of flash memory for non-volatile program storage. This memory capacity supports complex HMI applications with multiple screens. A real-time clock maintains time-stamped event logging and data trending.
Communication Ports and Connectivity Options
The HMI features two RS-232 serial ports for PLC and device connections. It also provides one RS-422/485 port for multi-drop network configurations. The unit includes a 10/100 Ethernet port for factory network integration. This Ethernet interface supports OPC and web server functionality for remote access. A USB host port allows firmware updates and data transfer via memory stick.
Power Supply and Energy Consumption
The HMI operates on a 24 VDC power supply with ±20% tolerance. It draws 1.5 A maximum under full operating conditions. Total power consumption reaches 36 watts with the backlight at maximum brightness. The unit includes an internal battery for real-time clock backup. This battery provides 5 years of data retention during power outages.
Environmental Ratings and Certifications
The panel operates reliably from 0 to 50 degrees Celsius ambient temperature. Its NEMA 4X/IP65 front bezel resists water and dust ingress effectively. The unit withstands 95% non-condensing humidity for versatile plant deployment. The HMI meets CE and UL safety standards for global industrial applications. This certification simplifies machine export and regulatory compliance efforts.
Technical Specifications Overview
| Parameter | Detail |
|---|---|
| Model Number | QPK-2D100-L2P |
| Display Size | 10.4 inches TFT color |
| Resolution | 800 x 600 (SVGA) |
| Touch Type | Analog resistive |
| Function Keys | 10 programmable |
| Processor | 32-bit RISC, 300 MHz |
| SDRAM | 64 MB |
| Flash Memory | 64 MB |
| Serial Ports | 2 x RS-232, 1 x RS-422/485 |
| Ethernet | 10/100 Base-T |
| USB Port | Host port |
| Power Input | 24 VDC ±20% |
| Current Draw | 1.5 A maximum |
| Power Consumption | 36 W |
| Dimensions | 11.2 x 8.7 x 2.8 inches |
| Weight | 4.5 lbs |
| Front Bezel | NEMA 4X / IP65 |
| Operating Temperature | 0 to 50 °C |
