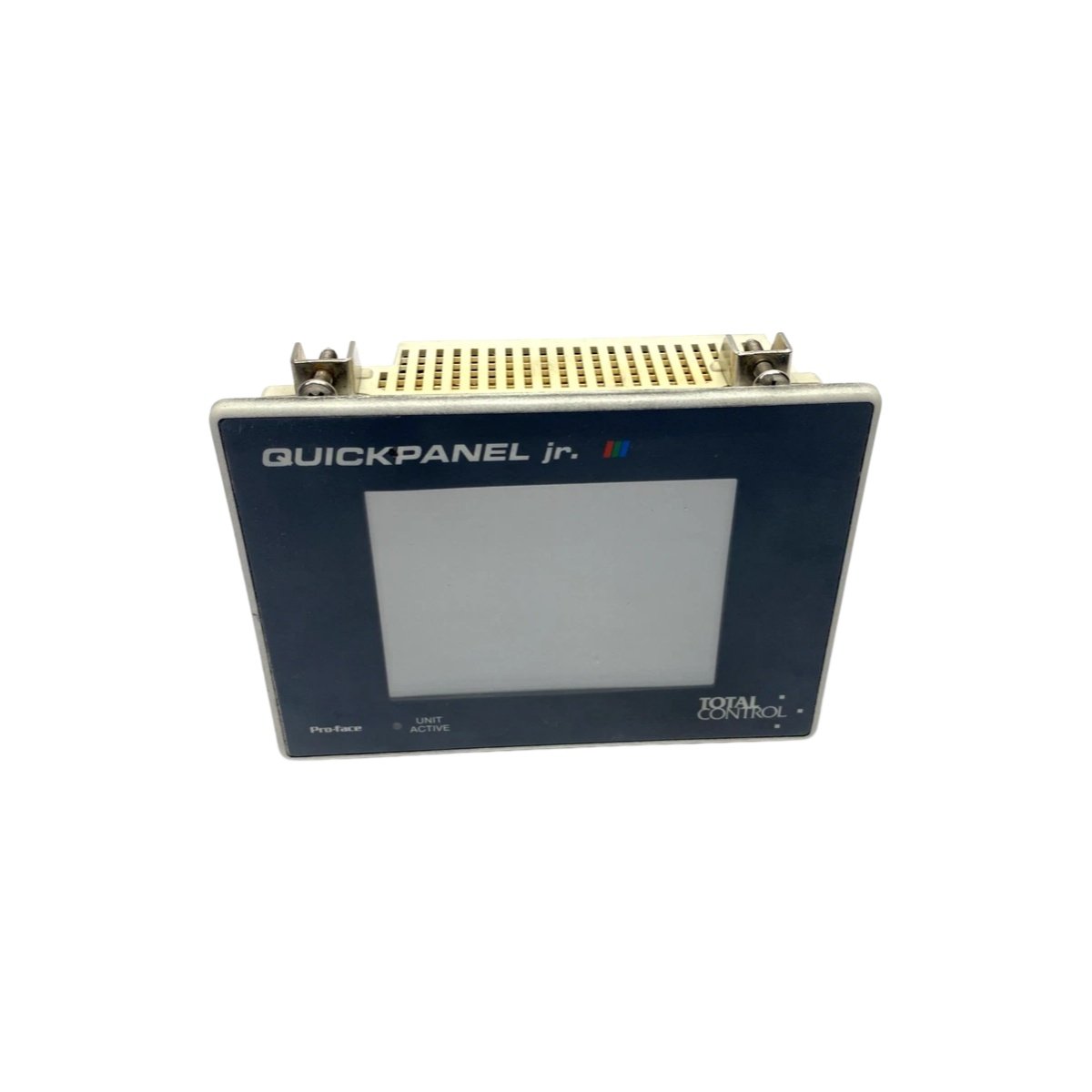

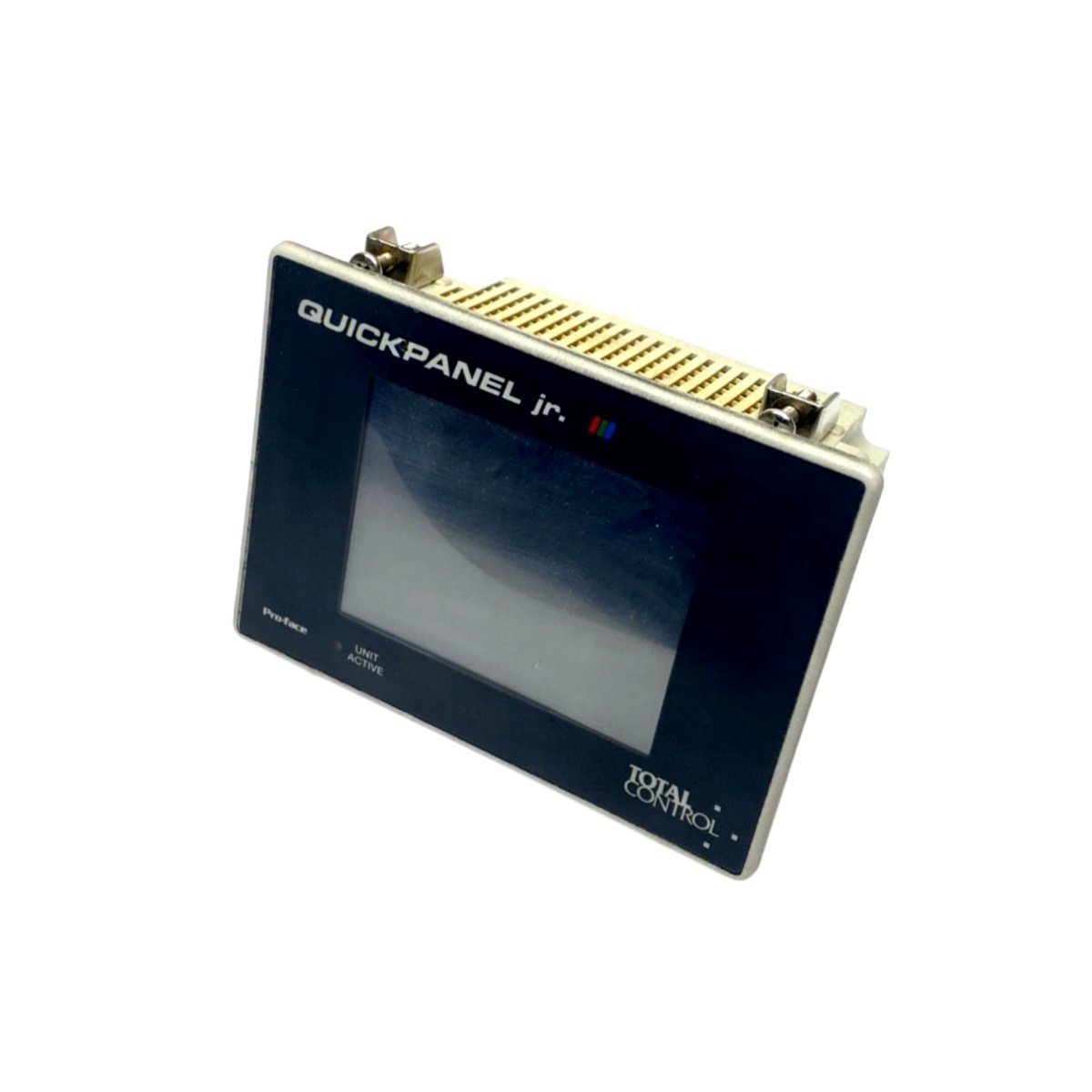

The QPJ-2D101-S2P serves as a QuickPanel HMI unit within GE industrial operator interface systems. This touchscreen terminal displays machine graphics, alarms, and process values to operators. Consequently, plant teams gain intuitive visual control on the factory floor.

Technical Specifications Overview

The QPJ-2D101-S2P combines a flat touch surface with rugged front-panel construction. Moreover, its parameter set helps engineers plan cutouts and communication wiring accurately.

Interface and Communication Details

The QPJ-2D101-S2P links to its host through serial and network ports. Therefore, wiring stays flexible inside crowded control cabinets. The color touchscreen renders graphics, trends, and alarm banners clearly. In addition, the unit draws 24 V DC directly from the cabinet supply.

Physical Characteristics and Mounting

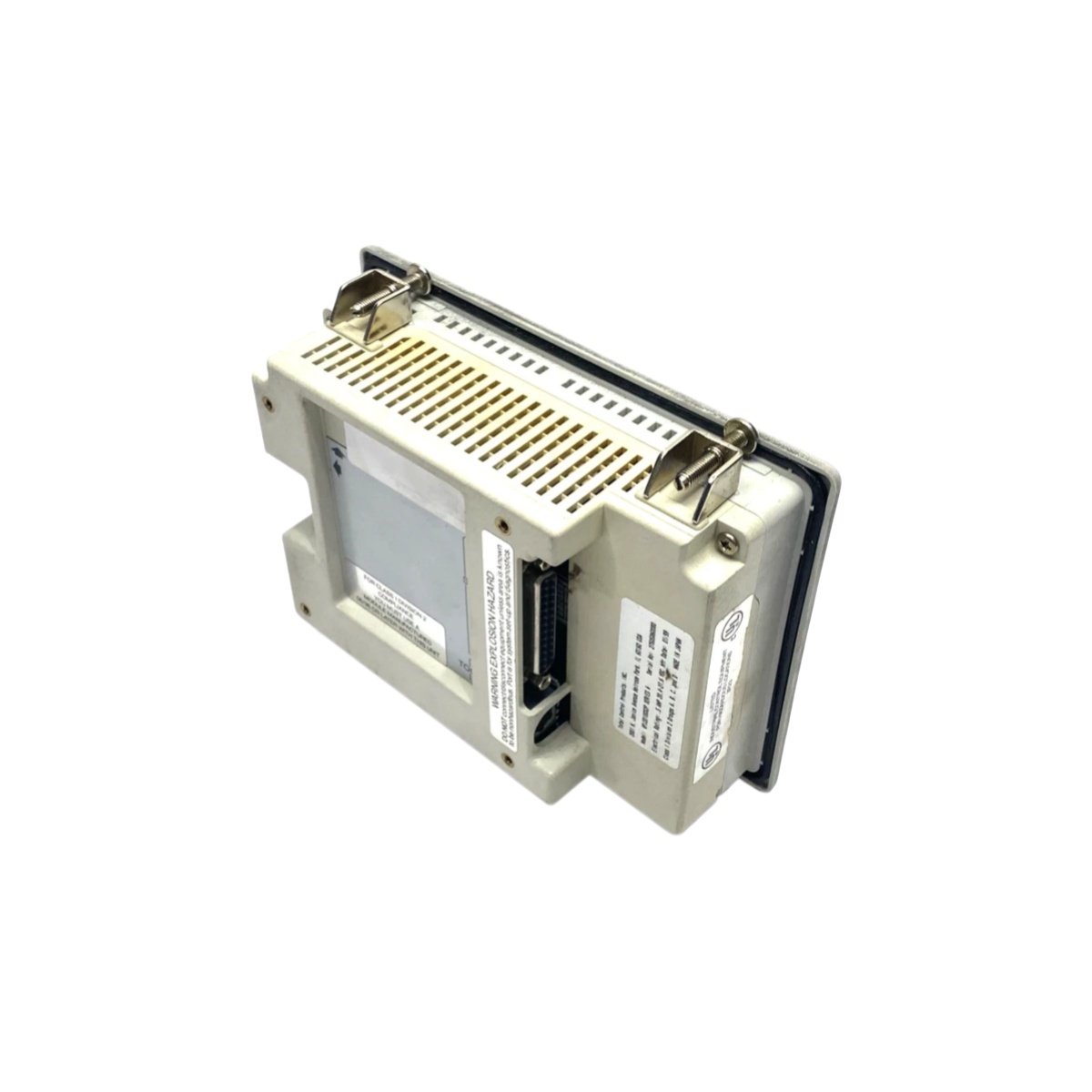

This HMI measures roughly 250 mm wide and 190 mm high. Furthermore, its 50 mm depth suits shallow panel enclosures. The QPJ-2D101-S2P weighs about 1.2 kg. Consequently, it adds negligible load to swinging door assemblies. Installation uses a standard panel cutout, then the front bezel secures into place.

Operational Role and Maintenance

Operators touch the for recipe selection, setpoint entry, and fault acknowledgment. Meanwhile, the sealed front surface resists dust, coolant, and light oils. The unit holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the cabinet supply for power.
