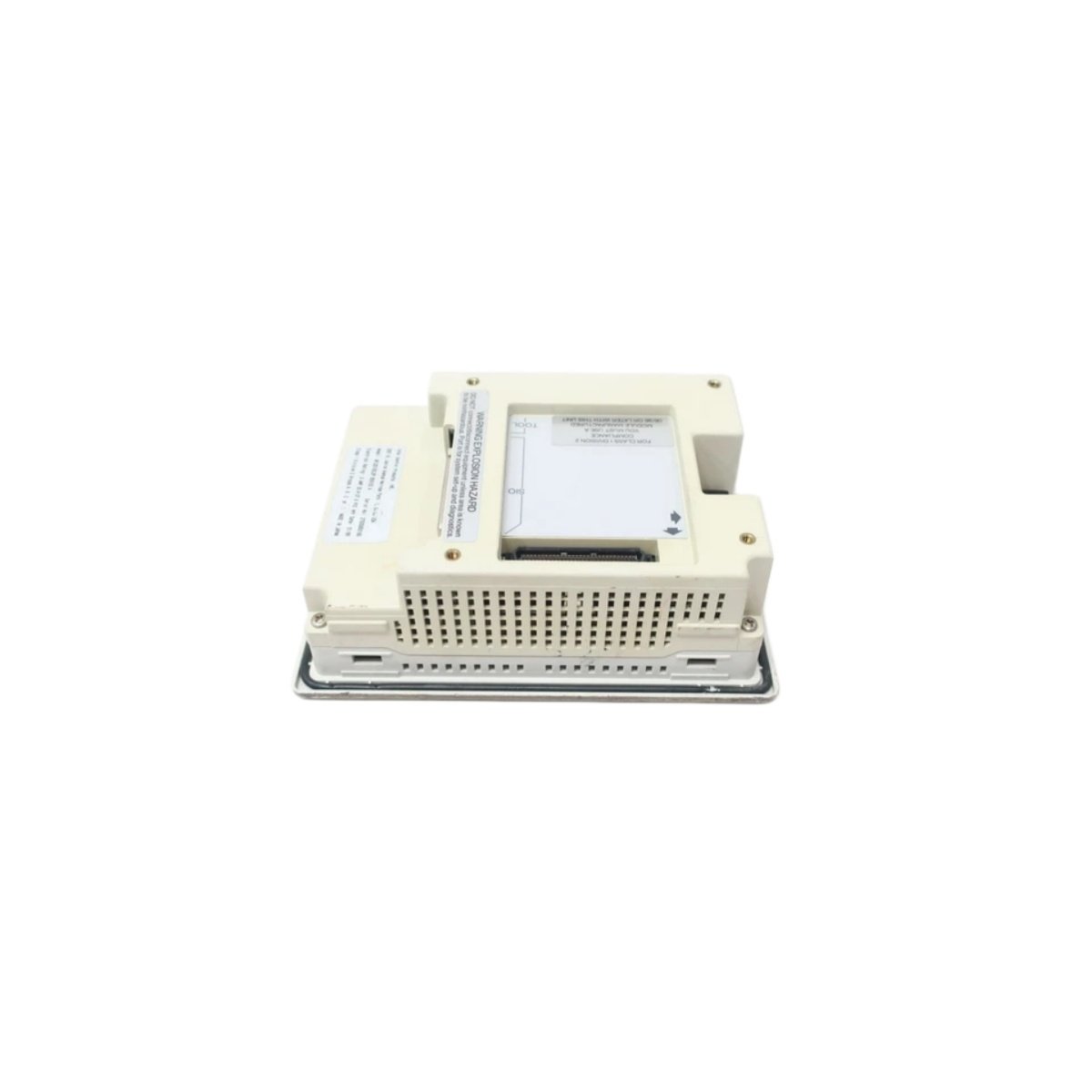

This compact operator interface serves as a reliable HMI node in the QuickPanel Jr. architecture. It provides a graphical layer between PLC logic and operator visualization for real-time supervisory interaction . Engineers choose this unit for its rugged design and straightforward integration with diverse PLC systems. Its monochrome touchscreen suits applications requiring basic process monitoring and machine control.
Display and User Interface Features

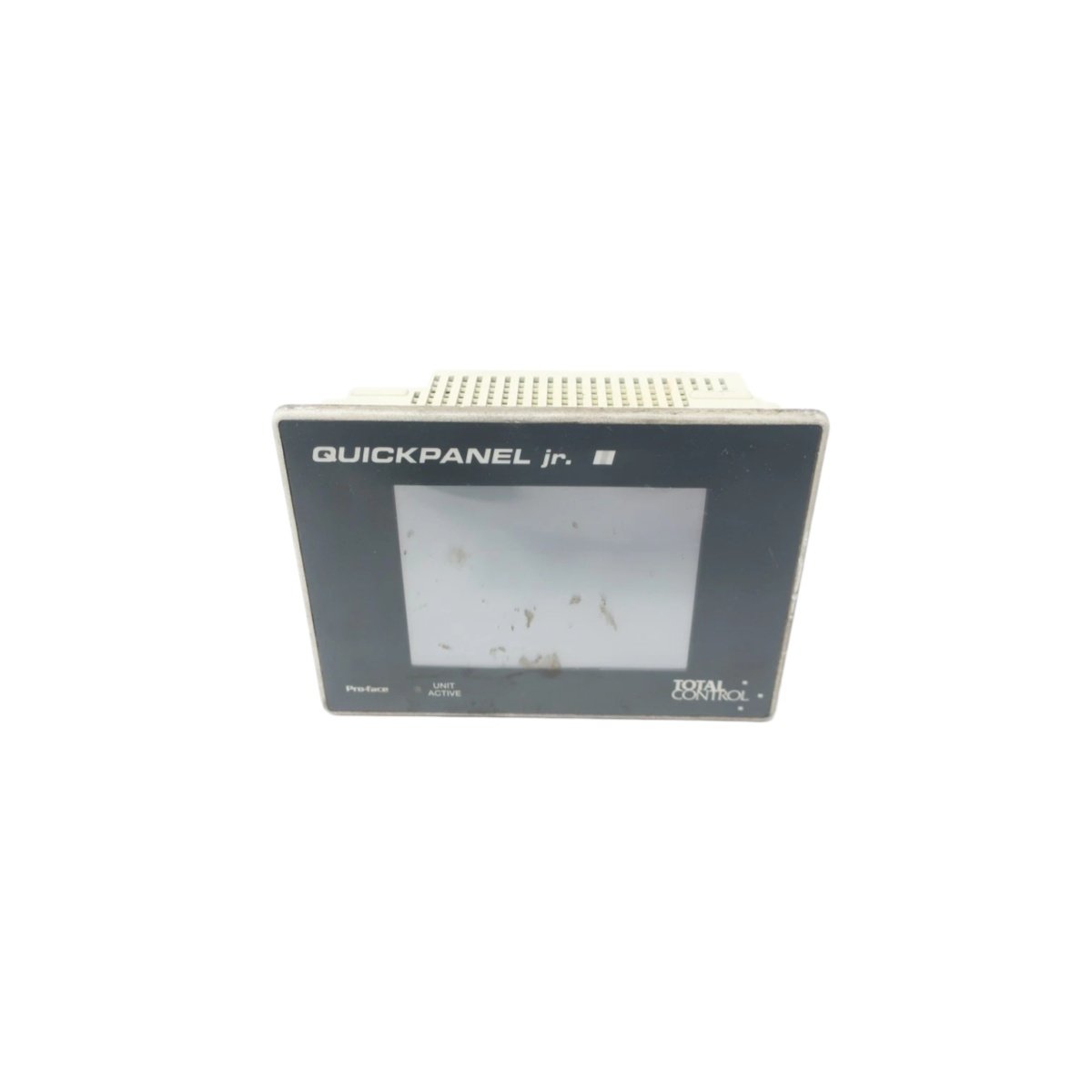

The GE QPJ-2D100-L2P features a 5-inch monochrome LCD with a 240 x 320 pixel resolution . Its display area measures 4 inches wide by 3 inches high for clear process visualization. The touchscreen interface enables intuitive interaction with runtime objects and control elements. Operators can view alarms, process deviations, and dynamic object updates through the embedded firmware . Additionally, the unit supports event-driven HMI rendering for responsive operation.
Electrical Specifications and Power Requirements
The GE QPJ-2D100-L2P operates on a 20.4 to 27.6 VDC power supply with a maximum draw of 0.5 A . It consumes up to 12 watts at full load for energy-efficient operation. The module withstands 20 milliseconds of power failure without disrupting performance . Its internal power conditioning circuitry tolerates transient disturbances common in industrial environments . Furthermore, the unit provides 1500 V/AC isolation protection at 10 mA for one minute .
Key Technical Specifications
The table below summarizes the critical parameters for the GE QPJ-2D100-L2P.
| Parameter | Specification |
|---|---|
| Model Number | QPJ-2D100-L2P |
| Manufacturer | GE Fanuc / Total Control |
| Product Category | Operator Interface / HMI |
| Series | QuickPanel Jr. |
| Display Type | 5-inch monochrome LCD |
| Resolution | 240 x 320 pixels |
| Touchscreen | Resistive touch |
| Input Voltage | 20.4 – 27.6 VDC |
| Current Draw | 0.5 A maximum |
| Power Consumption | 12 W maximum |
| Hold-Up Time | 20 ms |
| Voltage Withstand | 1500 V/AC at 10 mA (1 min) |
| Insulation Resistance | 10 MΩ @ 500 V/AC |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 5% to 85% RH (non-condensing) |
| Enclosure Rating | NEMA 4X/12, IP65 |
| Dimensions (W x H x D) | 17.8 x 12.7 x 2.5 cm |
| Weight | Approx. 0.70 kg |
| Software | QuickDesigner Version 3.7 |
| Communication | RS-232 / RS-485 serial |

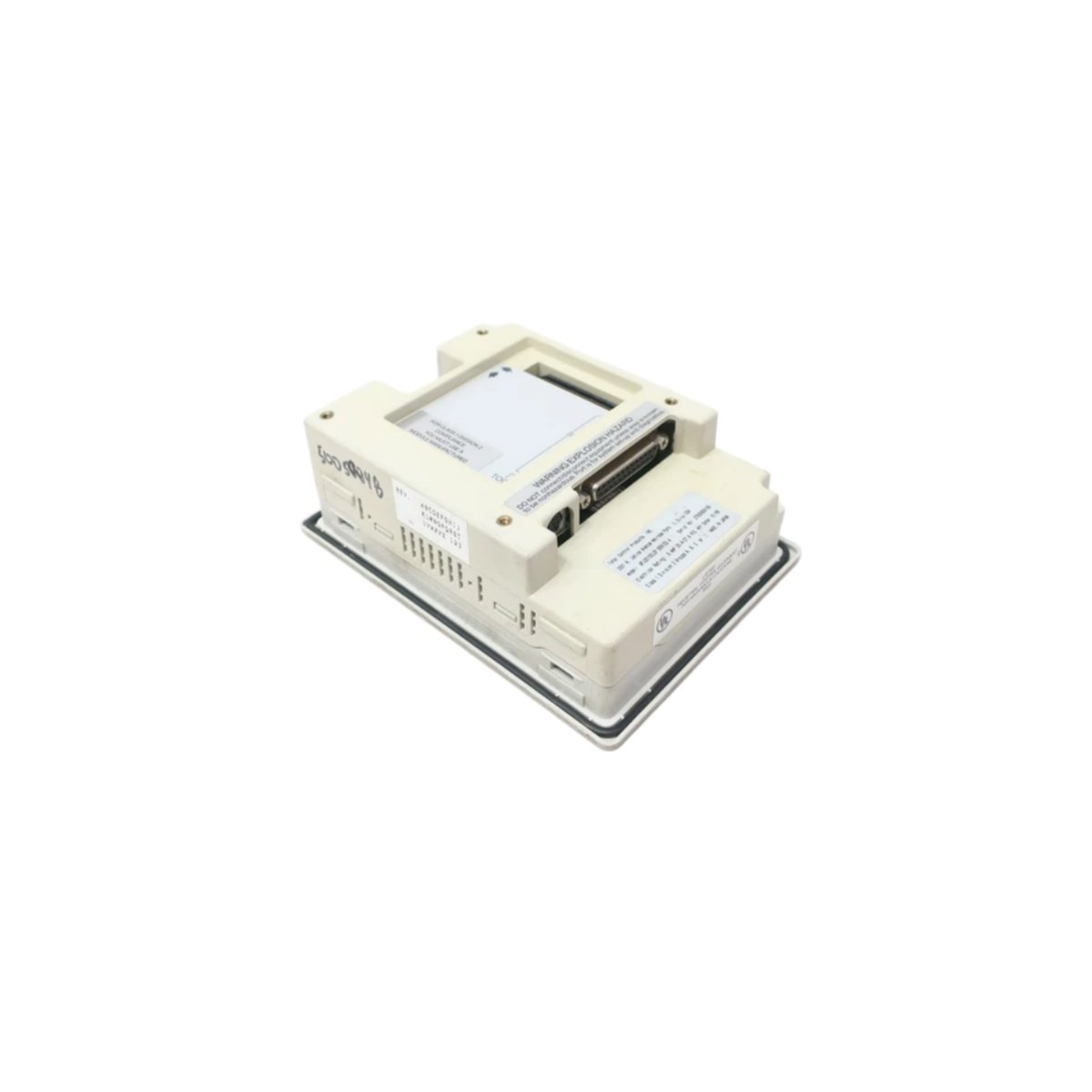

Environmental Durability and Mechanical Design
The GE QPJ-2D100-L2P features a NEMA 4X/12 and IP65-rated enclosure for harsh conditions . This rating ensures protection against dust, water, and corrosive industrial atmospheres. The front face resists oil ingress when properly installed with the gasket seal . Its compact dimensions make it ideal for space-constrained panel installations. Consequently, this unit delivers reliable service in demanding manufacturing environments.
Communication and System Integration
This operator interface supports RS-232 and RS-485 serial communication for PLC connectivity . It typically implements Modbus RTU protocol for interoperability with heterogeneous control systems. Users program the unit using QuickDesigner software, which supports various PLC protocol transfers . The module runs QuickDesigner-generated applications for deterministic execution of graphical objects . Therefore, engineers can deploy this HMI in new installations or retrofit existing machinery.
Details
| Weight | 0.65 kg |
|---|---|
| Dimensions | 140 × 110 × 75 mm |
