Advanced Visual Interface for Machine Control

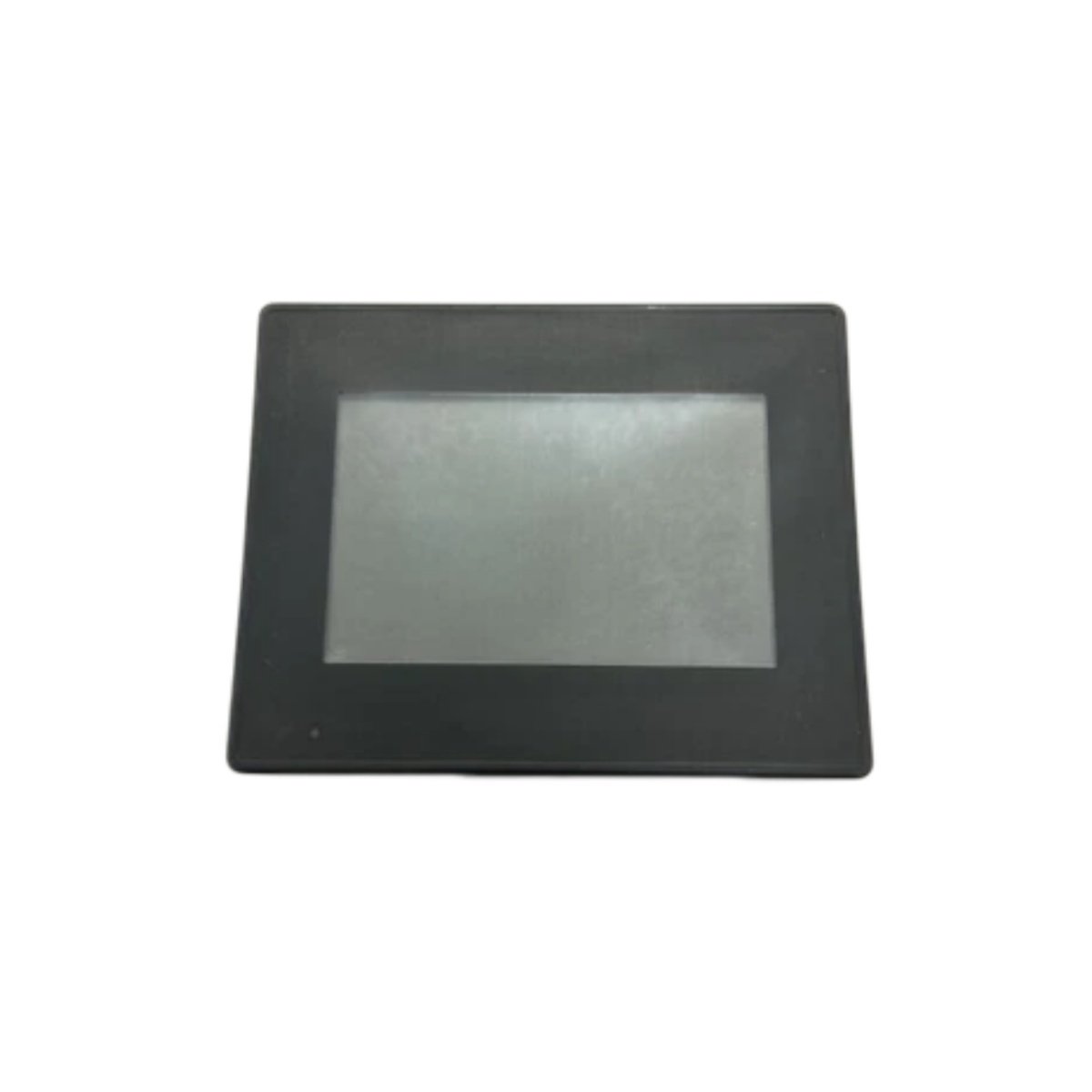

This QuickPanel HMI offers a comprehensive operator interface for industrial automation systems. The QPI21100E2P features a high-resolution color touchscreen for intuitive, user-friendly operation. It supports multiple communication protocols, ensuring seamless connectivity with PLCs and drives. The panel’s robust construction withstands harsh conditions while providing clear, responsive touch interaction. Consequently, the QPI21100E2P enhances operational efficiency through real-time data visualization and control.

Technical Specifications and Physical Attributes

The QPI21100E2P features a 10.4-inch TFT display with a resolution of 640 x 480 pixels. It offers 16 MB of RAM and 16 MB of flash memory for application storage. The panel also includes Ethernet and serial ports for versatile communication . It measures approximately 306 mm in width, 230 mm in height, and 76 mm in depth . The unit weighs about 2.5 kg . Furthermore, the QPI21100E2P operates reliably across a temperature range of 0 °C to 50 °C . Its IP65 rating ensures protection against dust and water ingress.

Integration and Application Guidance

This QuickPanel HMI serves as a powerful interface for machine and process control applications. First, mount the QPI21100E2P securely into the designated panel cutout using the provided brackets. Then, connect the Ethernet or serial cables to the PLC or network switches. For power, wire the 24 V DC supply to the appropriate terminals. Finally, download the application using the Proficy Machine Edition software. The QPI21100E2P excels in packaging, material handling, and assembly line automation.
