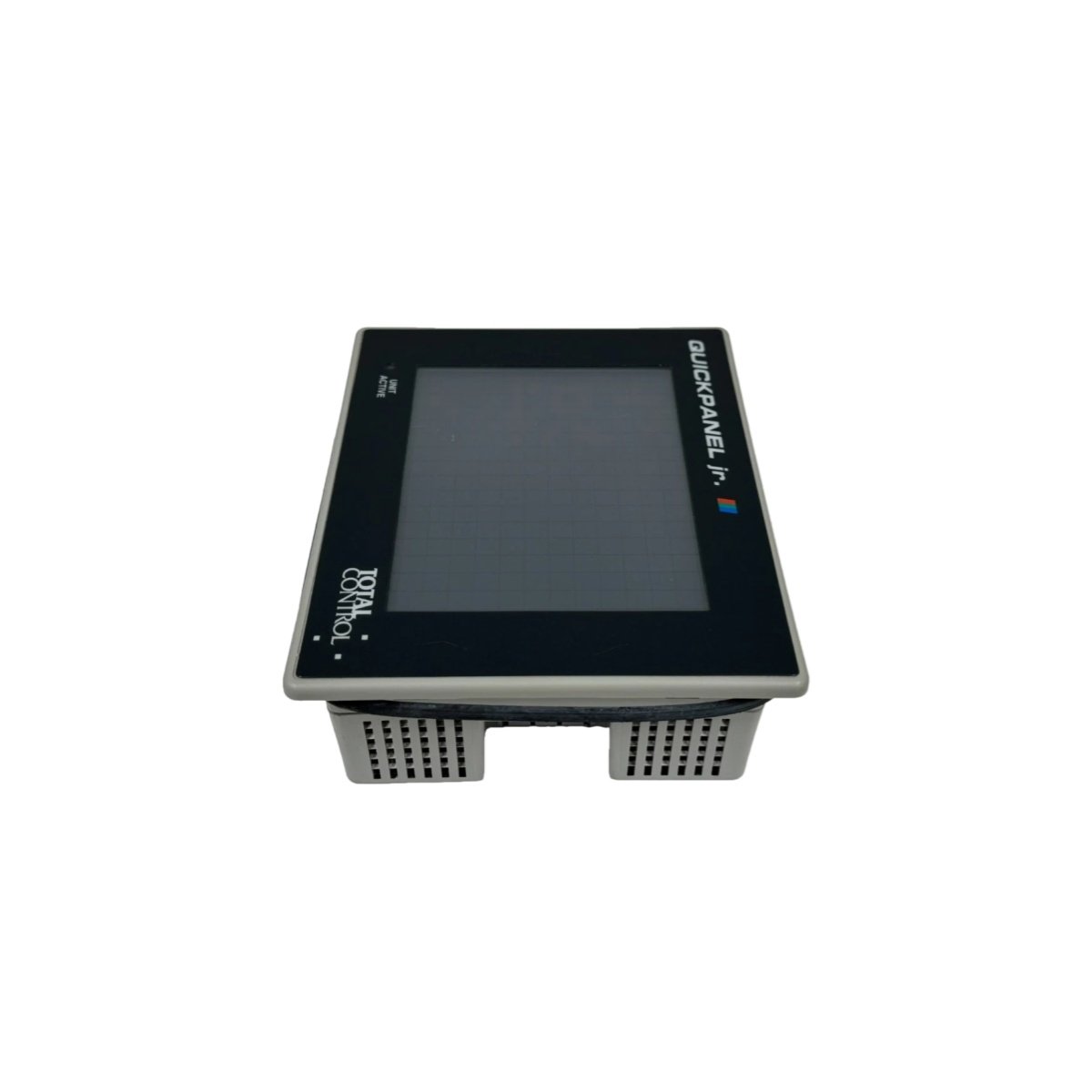

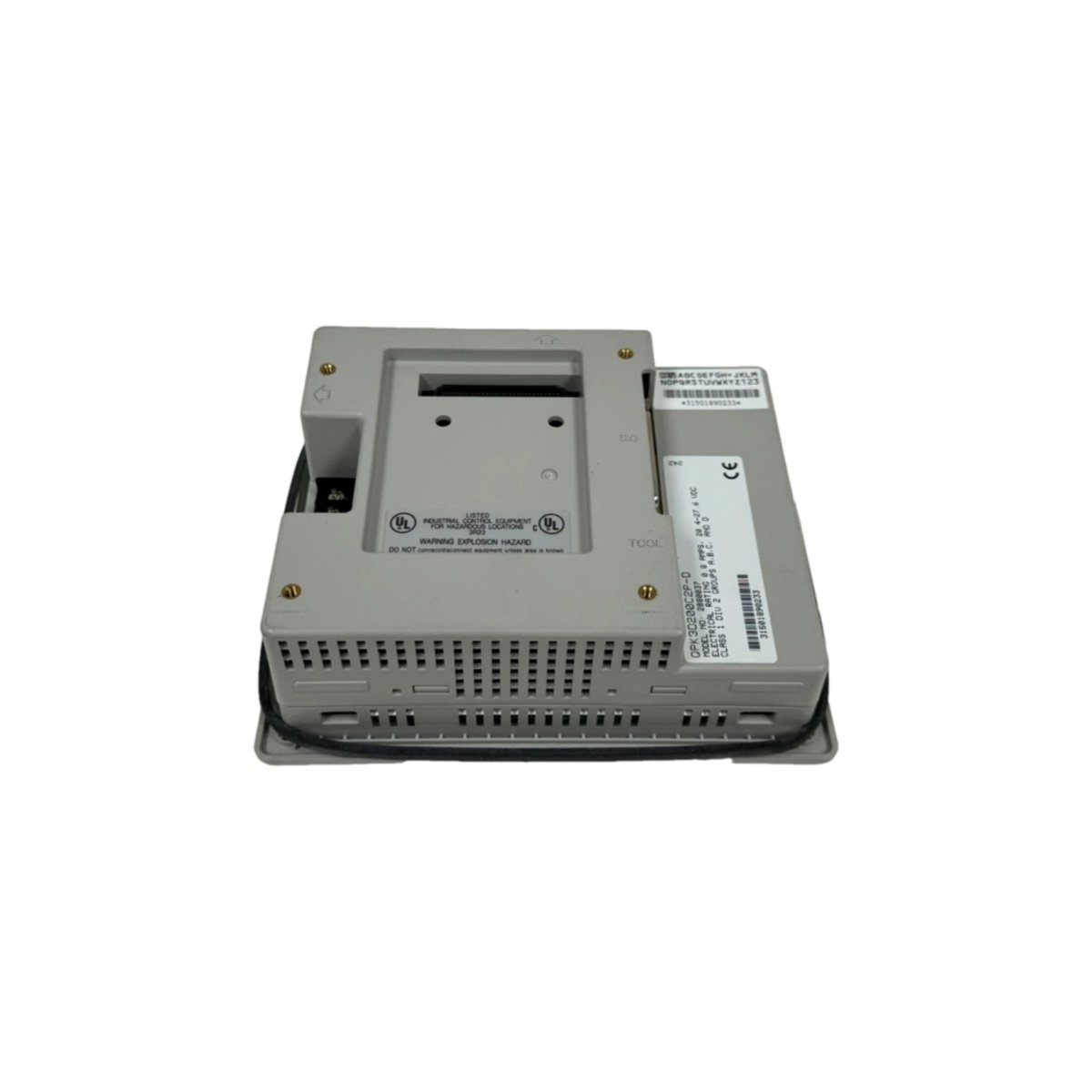

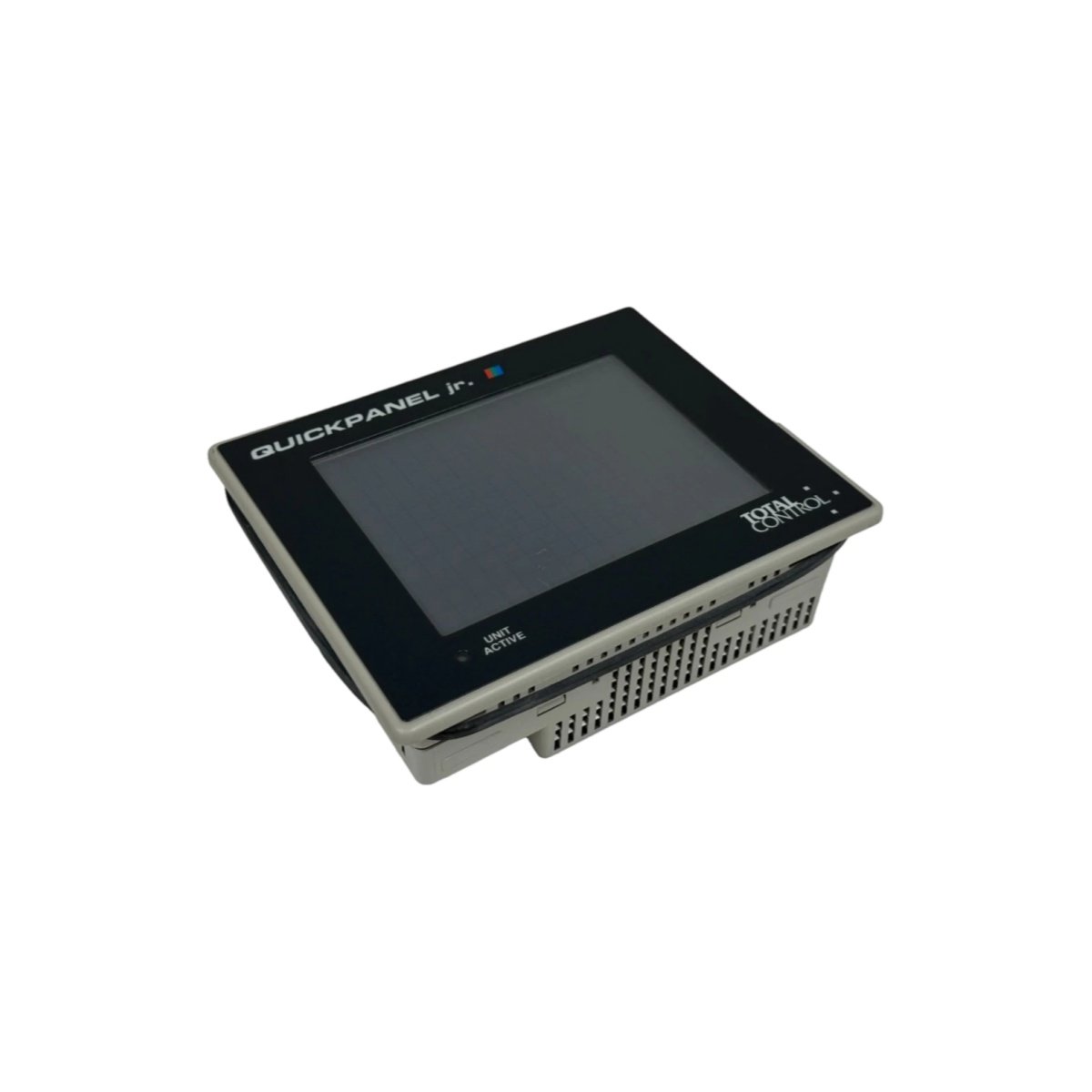

The GE QPI-2D101-C2P interface delivers intuitive operator control for industrial automation and process systems. As a compact touch panel, this device displays real-time data and accepts operator commands with responsive feedback. Engineers select this HMI for manufacturing lines, water treatment plants, and utility control rooms worldwide.

Key Technical Specifications

The QPI-2D101-C2P employs a rugged panel-mount design, which withstands vibration and dust inside industrial environments. Each unit weighs approximately 1.1 kg and measures 210 mm by 160 mm by 50 mm. This HMI operates from a 24 VDC supply and dissipates roughly 9 watts during normal operation.

Interface and Communication

The QPI-2D101-C2P connects directly to PLC and drive networks, enabling seamless data exchange with the control layer. Consequently, operators monitor process values while the panel updates screens in real time. The unit supports quick replacement, which minimizes downtime during maintenance activities. Furthermore, clear port labelling simplifies troubleshooting between the HMI and connected controllers.

Component Count and Energy Storage

Each QPI-2D101-C2P unit contains a touchscreen, processor board, and communication circuits on one assembly. Additionally, onboard capacitors support brief ride-through during power interruptions. The design integrates status LEDs for continuous self-monitoring. Therefore, operators gain confidence in display integrity across demanding industrial environments.

Applications and Reliability

Manufacturing plants, water treatment facilities, and power stations deploy the QPI-2D101-C2P for critical operator interface functions. The design meets rigorous international industrial standards for reliability and safety. Meanwhile, comprehensive diagnostics alert maintenance teams before failures escalate. As a result, plant operators reduce unplanned shutdowns and protect expensive assets.
