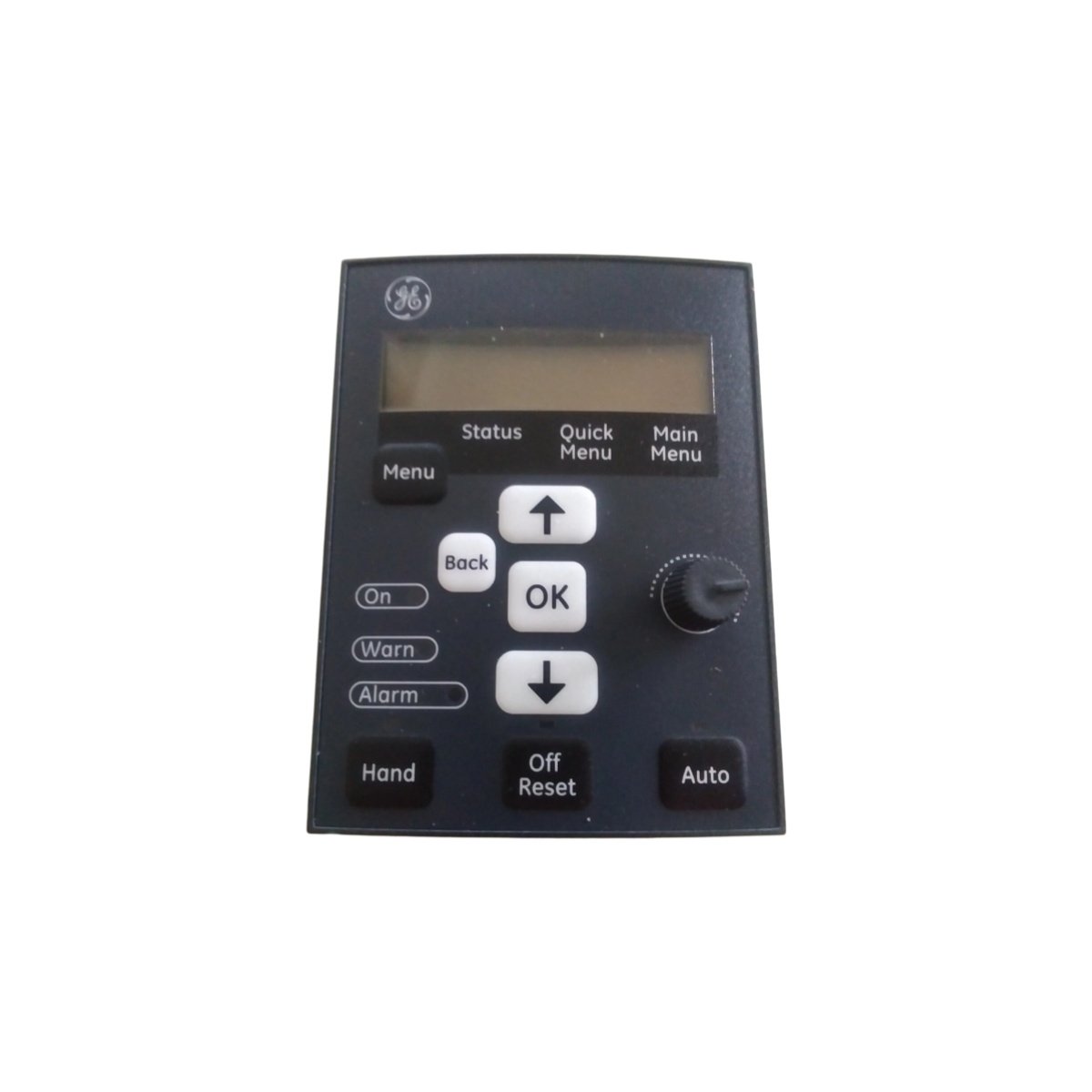

The GE KYPDACLP1 replacement keypad restores operator interface functions on compatible GE drive and control units. Technicians install this assembly when original keypads wear out or lose responsiveness. Consequently, it serves motor control centers, process lines, and factory automation panels.

Technical Specifications and Hardware Details

This assembly combines a membrane keypad with an integrated potentiometer for analog adjustment. It measures roughly 150 mm high, 90 mm wide, and 25 mm deep, while it weighs about 0.15 kg. Moreover, the ribbon cable connector links the keypad to the host control board.

Functional Capabilities and System Integration

The keypad sends operator commands while the potentiometer delivers analog setpoint signals. Meanwhile, the ribbon cable carries both signals to the main control board. Membrane switches resist dust and moisture, therefore the unit endures industrial environments.

Additionally, the assembly matches original mounting dimensions for straightforward replacement. As a result, technicians restore full interface function without cabinet modifications. Clear key labeling helps operators adjust parameters quickly during setup. The slim profile also fits tight panel openings.

Installation and Maintenance Guidelines

Technicians should disconnect power before they remove the worn keypad assembly. Afterward, aligning the ribbon connector carefully prevents bent pins and communication faults. Testing each key and the potentiometer confirms complete restoration. Finally, consult GE documentation for wiring details and compatible drive models.
