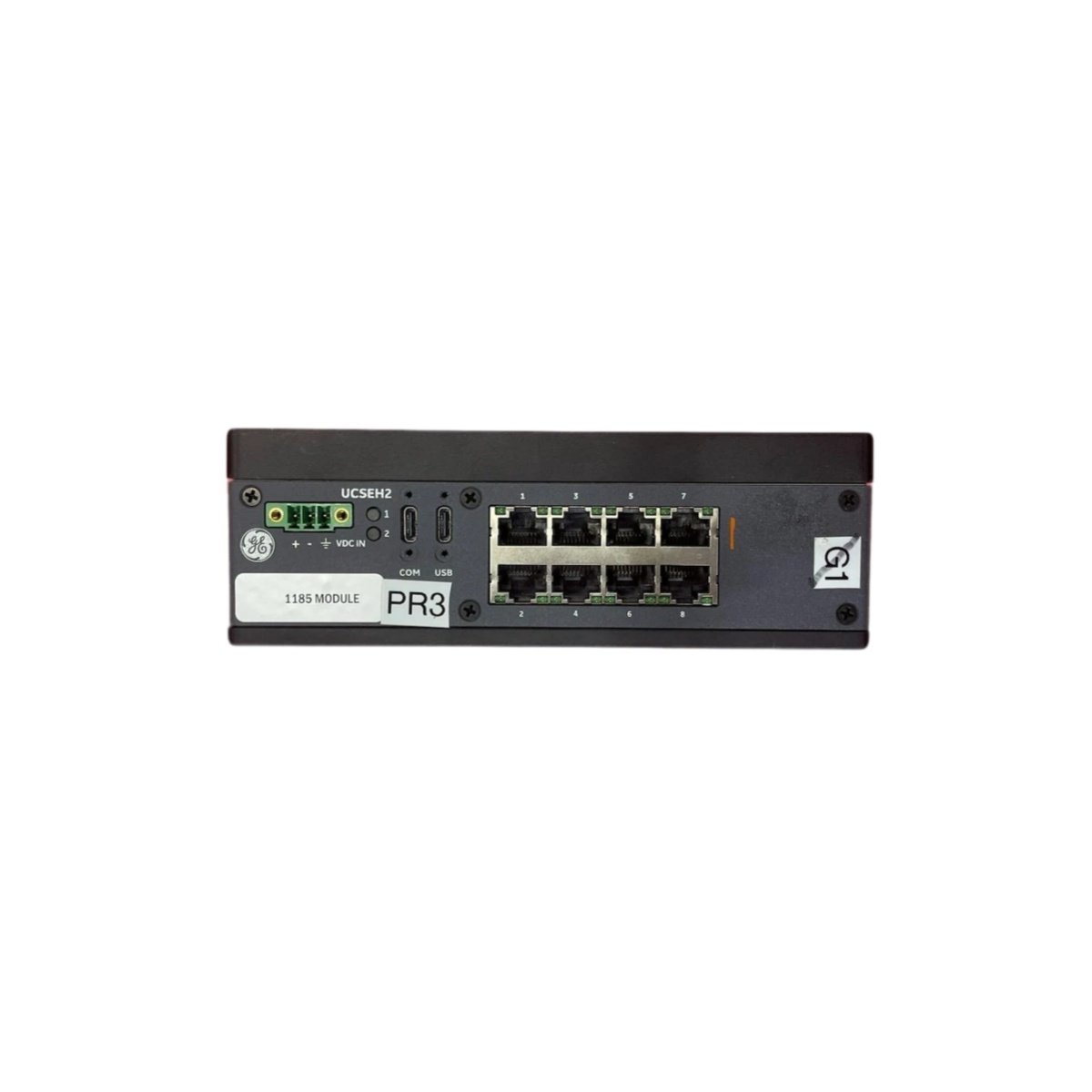

The GE IS420UCSEH2B is a dual-core safety controller module within the Mark VIe series. This unit delivers high-availability protection for turbine overspeed, emergency shutdown, and combustion monitoring systems. It handles both safety-critical logic and standard regulatory control tasks without compromising deterministic performance.

Technical Specifications

Dual-Core Safety Architecture

The GE IS420UCSEH2B employs a dual-core design for enhanced safety and processing efficiency. One core dedicates itself to critical safety functions, while the second manages regulatory control and communication. The module runs continuous cross-checking and diagnostic routines on every scan cycle. This arrangement achieves SIL 2/3 certification without sacrificing control responsiveness. The 2 GB RAM supports extensive safety logic, and the 2 GB SSD stores application programs and event logs.

Network Connectivity and Integration

This safety controller offers comprehensive connectivity through four Ethernet ports. The two IONet interfaces provide deterministic communication with remote I/O packs and expansion chassis. The two plant network ports connect to supervisory systems, HMIs, and plant-wide data networks. The USB ports enable convenient firmware updates and local configuration. Additionally, the serial console provides direct terminal access for diagnostics and commissioning.

Rugged Design for Critical Applications

Engineers designed the GE IS420UCSEH2B for reliable operation in demanding industrial environments. Its fanless, convection-cooled construction eliminates mechanical failure points and lowers maintenance needs. The module performs consistently across an extended temperature range. Furthermore, its robust construction withstands vibration, humidity, and EMI commonly encountered in power generation and heavy industrial plants.
