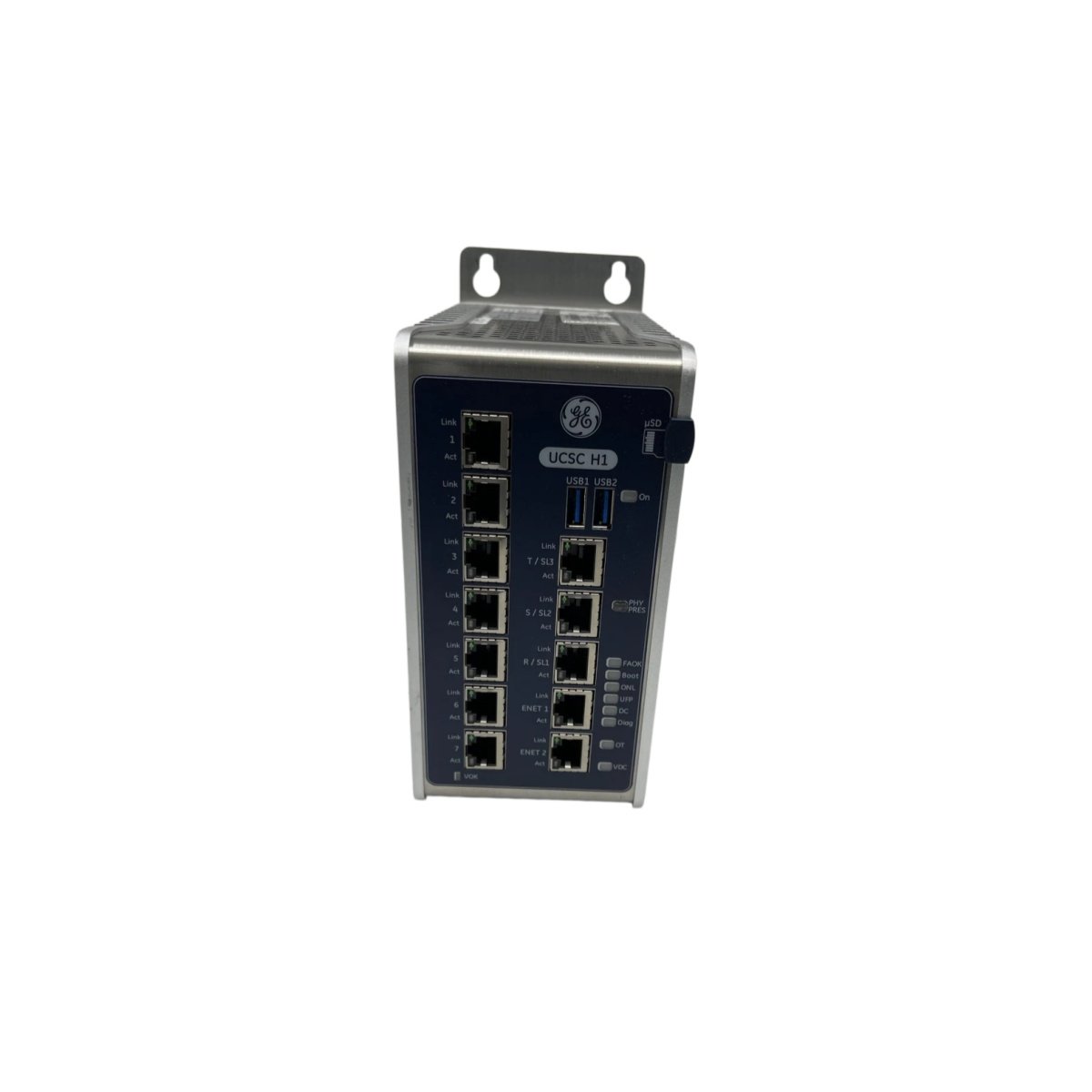

The GE IS420UCSCH2B is a high-performance single module within the Mark VIe controller family. This unit serves as the central processing engine for demanding turbine and power generation control systems. It runs complex application code with deterministic execution while sustaining reliable communication with I/O networks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Mark VIe Single Controller Module |
| Processor | Intel EP80579, 600 MHz |
| RAM | 1 GB industrial-grade DDR2 |
| Flash Storage | 1 GB non-volatile memory |
| Operating System | QNX Neutrino RTOS (64-bit) |
| Ethernet Ports | 2 x IONet (10/100 Mbps) + 2 x Plant (10/100/1000 Mbps) |
| Console Port | 1 x RJ-45 serial |
| USB Ports | 2 x USB 2.0 |
| Real-Time Clock | Battery-backed, 5-year retention |
| Power Consumption | 30 W typical; 38 W peak |
| Cooling | Fanless, convection-cooled |
| Dimensions (W x H x D) | 63.5 mm x 190 mm x 176 mm |
| Weight | 1.0 kg (2.2 lbs) |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| MTBF | > 160,000 hours |
Processing Power and Memory Resources
The GE IS420UCSCH2B delivers substantial computational resources for advanced control strategies. Its 600 MHz processor manages multiple high-speed control loops and data acquisition tasks simultaneously. The module incorporates 1 GB of RAM for dynamic operations and 1 GB of flash for firmware and data storage. This generous memory allocation supports extensive data logging, complex mathematical modeling, and sophisticated sequencing applications.
Network Interfaces and Connectivity
This controller provides versatile connectivity options through its four Ethernet ports. The two dedicated IONet interfaces ensure deterministic communication with remote I/O packs and expansion racks. The two plant network ports connect directly to supervisory control systems and operator workstations. Moreover, the USB ports facilitate convenient local access for firmware upgrades, and the serial console enables direct diagnostic access during commissioning.
Robust Engineering for Harsh Environments
Engineers have built the GE IS420UCSCH2B for reliable operation in demanding industrial settings. Its convection-cooled, fanless construction removes mechanical failure points and reduces ongoing maintenance. The module operates across an extended temperature spectrum, performing consistently in both hot and cold environments. Furthermore, its compact form factor provides significant processing power within a minimal footprint, optimizing valuable cabinet space.
Details
| Weight | 1.0 kg |
|---|---|
| Dimensions | 63.5 × 190 × 176 mm |
