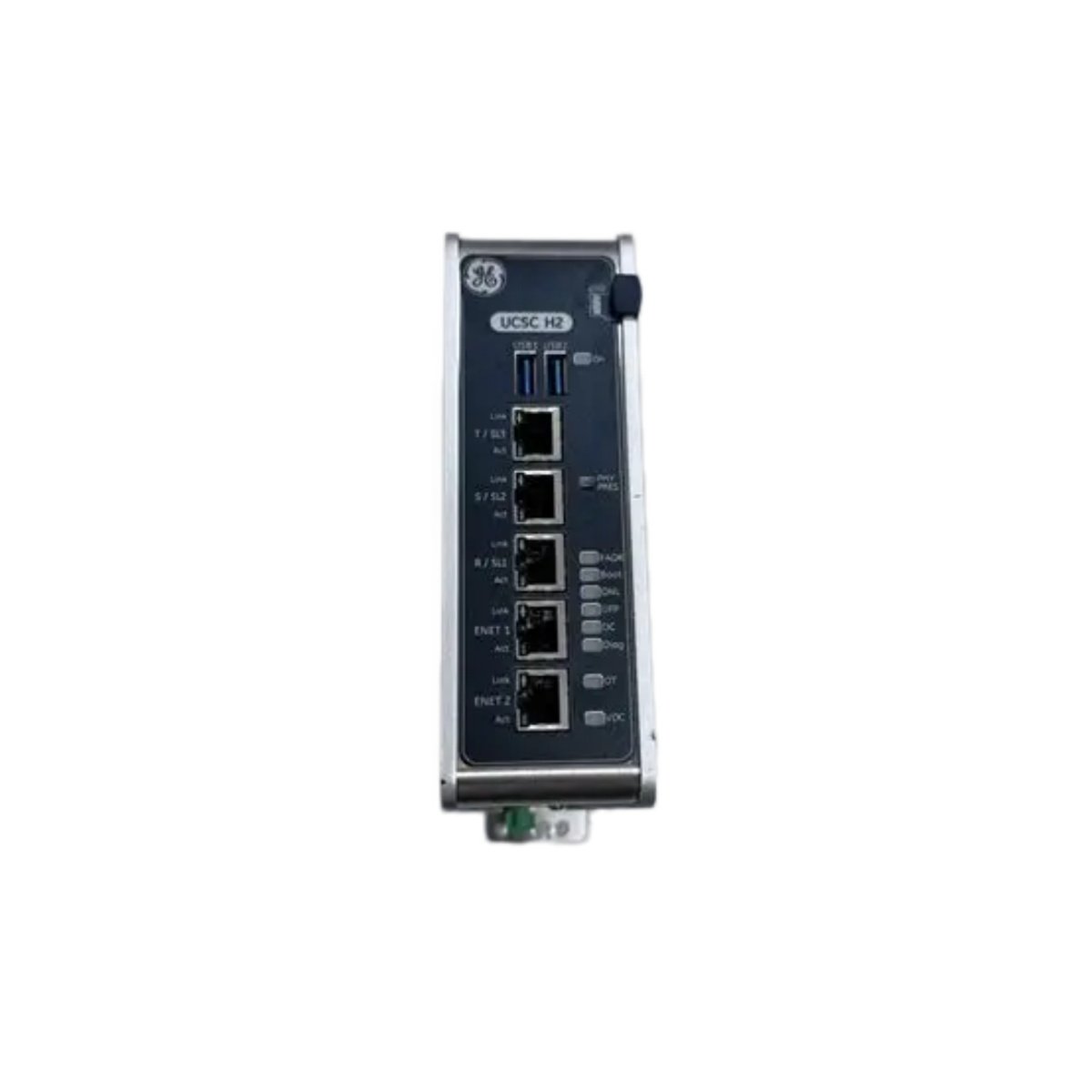

The GE IS420UCSCH2A is a high-density controller module engineered for the Mark VIe series. This unit delivers enhanced processing capabilities for complex turbine control and power generation applications. It executes sophisticated algorithms with deterministic precision while maintaining continuous I/O communication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Mark VIe Extended Controller Module |
| Processor | Intel EP80579, 600 MHz |
| RAM | 1 GB industrial-grade DDR2 |
| Flash Storage | 1 GB non-volatile memory |
| Operating System | QNX Neutrino RTOS (64-bit) |
| Ethernet Ports | 2 x IONet (10/100 Mbps) + 2 x Plant (10/100/1000 Mbps) |
| Console Port | 1 x RJ-45 serial interface |
| USB Ports | 2 x USB 2.0 for configuration |
| Real-Time Clock | Battery-backed, 5-year retention |
| Power Consumption | 30 W typical; 36 W peak |
| Cooling | Fanless, convection-cooled |
| Dimensions (W x H x D) | 63.5 mm x 190 mm x 176 mm |
| Weight | 0.9 kg (2.0 lbs) |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| MTBF | > 150,000 hours |
Processing and Memory Capabilities
The GE IS420UCSCH2A provides exceptional computational power for demanding control applications. Its 600 MHz processor handles extensive mathematical operations and multiple concurrent control loops efficiently. The module features 1 GB of RAM for complex data processing and 1 GB of flash memory for program and configuration storage. This expanded memory configuration suits sophisticated applications requiring extensive data logging and complex algorithms.
Network Connectivity and Expansion
This controller offers comprehensive networking capabilities through four Ethernet interfaces. The two IONet ports ensure deterministic communication with remote I/O packs and expansion chassis. Meanwhile, the two plant network ports connect to supervisory systems, HMIs, and plant-wide data historians. The USB ports allow convenient local access for firmware updates and configuration. Additionally, the serial console port enables direct terminal connection for diagnostics and troubleshooting.

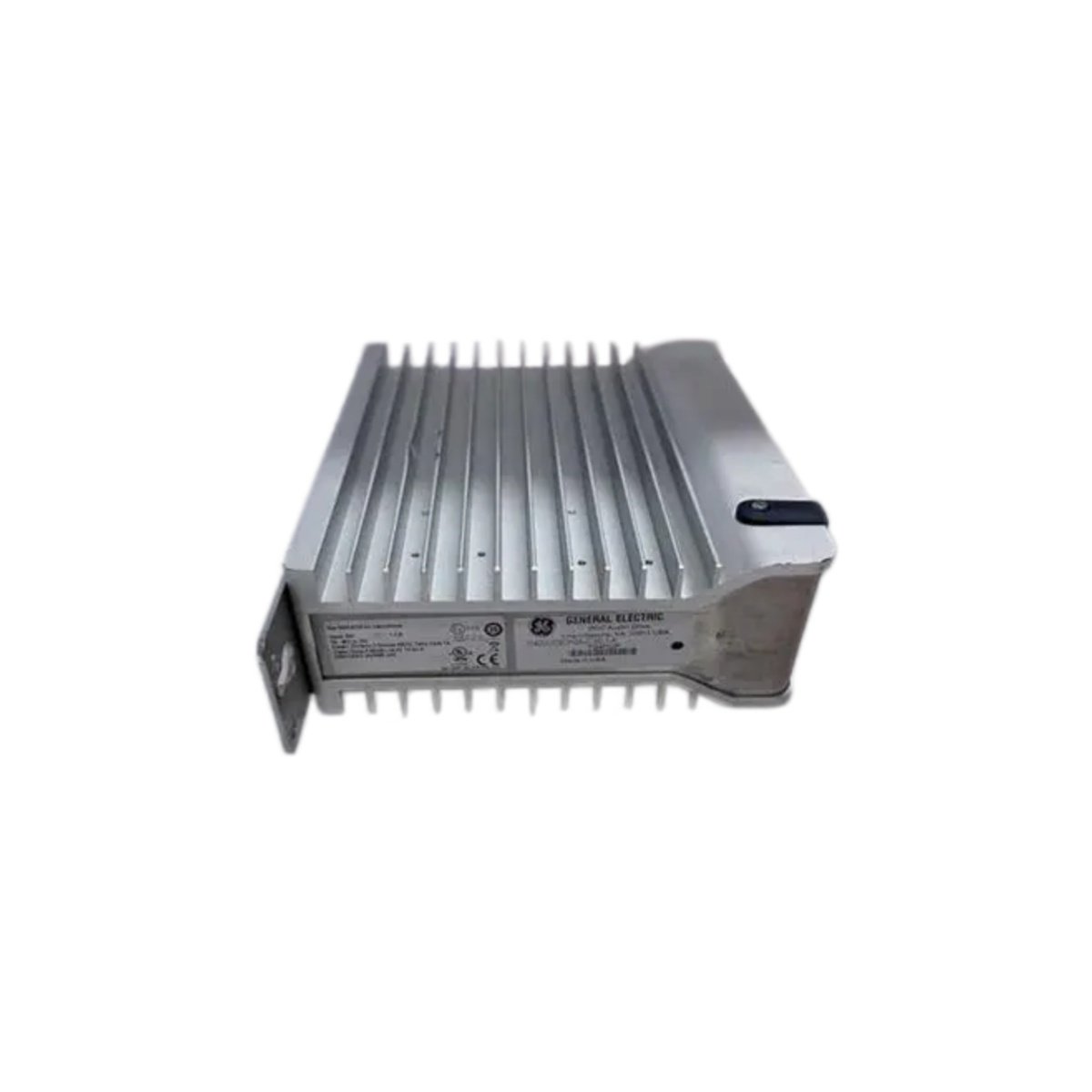

Rugged Construction for Demanding Applications
Engineers designed the GE IS420UCSCH2A to meet the rigorous demands of continuous industrial operation. Its fanless construction eliminates moving parts, substantially enhancing long-term reliability and reducing maintenance requirements. The module operates reliably across an extended temperature range, making it suitable for outdoor cabinets and unairconditioned environments. Furthermore, its robust construction withstands vibration and humidity commonly found in power generation facilities.
Details
| Weight | 0.9 kg |
|---|---|
| Dimensions | 63.5 × 190 × 176 mm |
