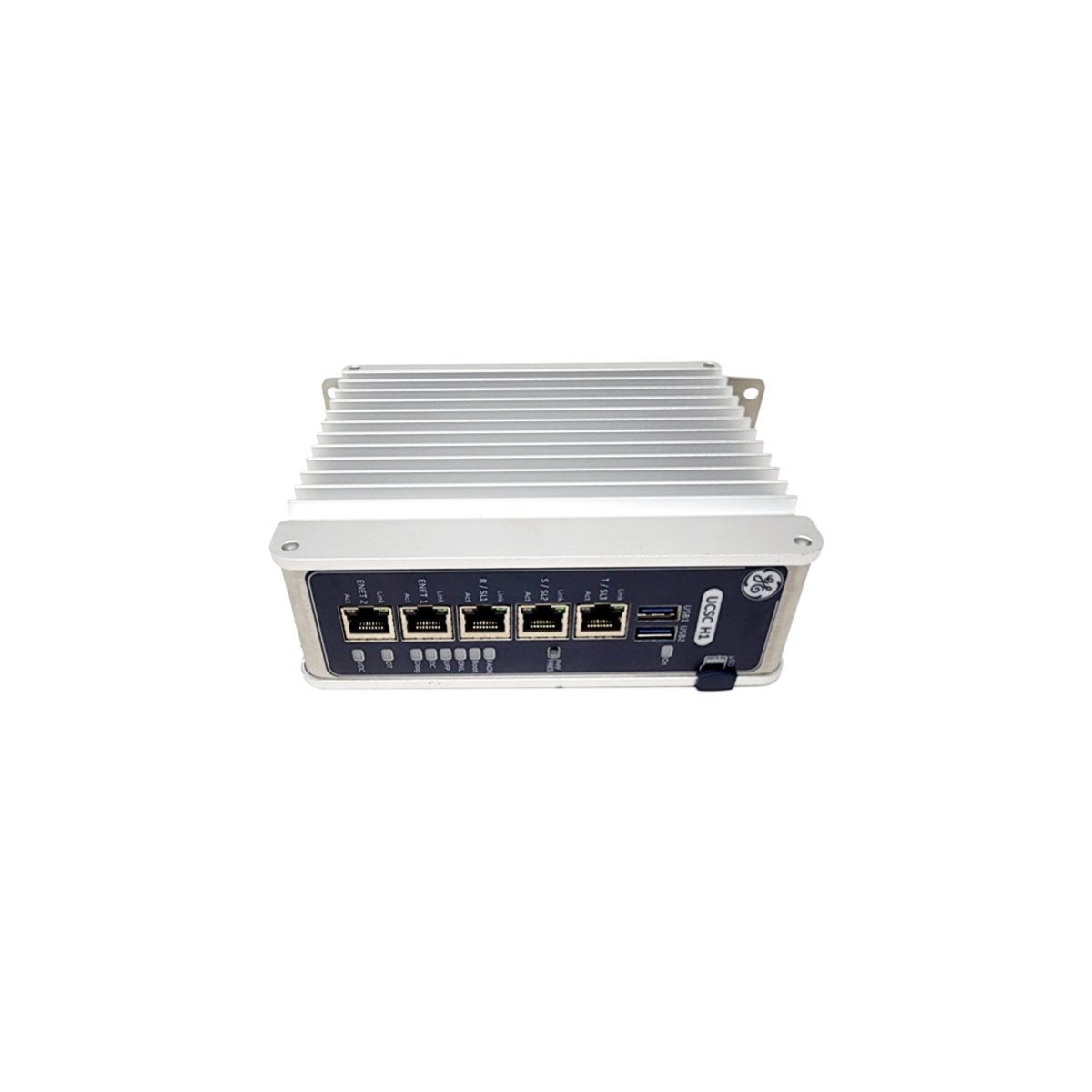

The GE IS420UCSCH1A is a compact controller module designed for the Mark VIe distributed control platform. This unit serves as the primary processing engine for turbine and generator management applications. It executes control algorithms with deterministic precision while maintaining continuous communication with I/O networks and plant systems.

Technical Specifications

Processing and Memory Architecture

The GE IS420UCSCH1A delivers efficient computation for moderate-scale control applications. Its 600 MHz processor handles multiple control loops and communication tasks simultaneously without performance degradation. The module provides 256 MB of RAM for program execution and 256 MB of flash memory for firmware and configuration storage. Consequently, this memory configuration suits smaller installations where cost-effectiveness matters.

Network Connectivity and Integration

This controller offers three Ethernet ports for versatile network integration. The two IONet ports ensure high-speed, deterministic communication with remote I/O packs and expansion modules. Meanwhile, the single plant network port connects to supervisory systems and HMI workstations. The serial console port enables direct terminal access for diagnostics and initial configuration.

Space-Saving Design

Engineers designed the GE IS420UCSCH1A for applications where cabinet space comes at a premium. Its compact dimensions and reduced weight allow installation in densely populated cabinets or smaller enclosures. The fanless design eliminates moving parts, improving long-term reliability in dusty or vibration-prone environments. Furthermore, its lower power consumption reduces cooling requirements and energy costs.
