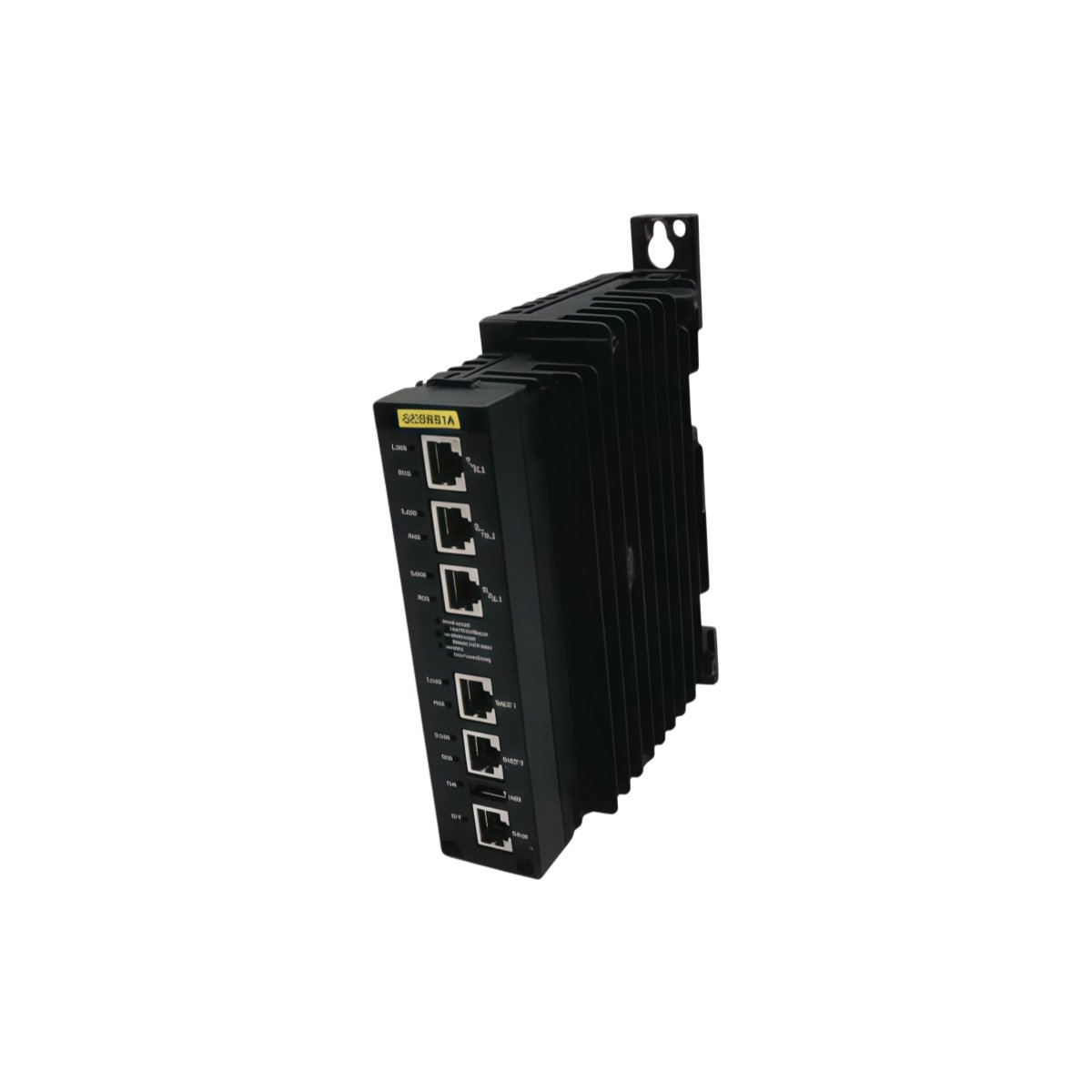

The GE IS420UCSBS1A is a SIL-certified safety controller module within the Mark VIe series. This unit executes critical safety functions for turbine overspeed protection, emergency shutdown, and flame monitoring systems. It maintains deterministic performance while continuously performing internal diagnostics and monitoring for hazardous conditions.

Technical Specifications

Safety Architecture and Diagnostics

The GE IS420UCSBS1A implements a robust safety architecture with hardware and software diversity. It performs automatic self-tests on every scan cycle, checking processor, memory, and communication integrity. The module uses a dual-channel design for critical safety functions, ensuring reliable fault detection and response. It can handle complex safety logic, including voting schemes, trip initiation, and bypass management.

Network Integration for Safety Systems

This safety controller communicates with I/O packs via the dedicated IONet protocol, ensuring deterministic message delivery for time-critical safety data. The two plant Ethernet ports connect to the DCS network for monitoring and non-critical control functions. Additionally, it supports peer-to-peer communication with other controllers for coordinated safety responses across multiple units. The module’s diagnostic data feeds into the Mark VIe Toolbox, simplifying maintenance and troubleshooting.

Rugged Construction for Critical Protection

Engineers designed the GE IS420UCSBS1A for continuous operation in high-risk industrial environments. Its fanless, convection-cooled construction reduces mechanical failure modes significantly. The module meets stringent environmental specifications for temperature, humidity, and vibration resistance. Furthermore, its compact form factor allows integration into existing Mark VIe cabinets without requiring panel modifications.
