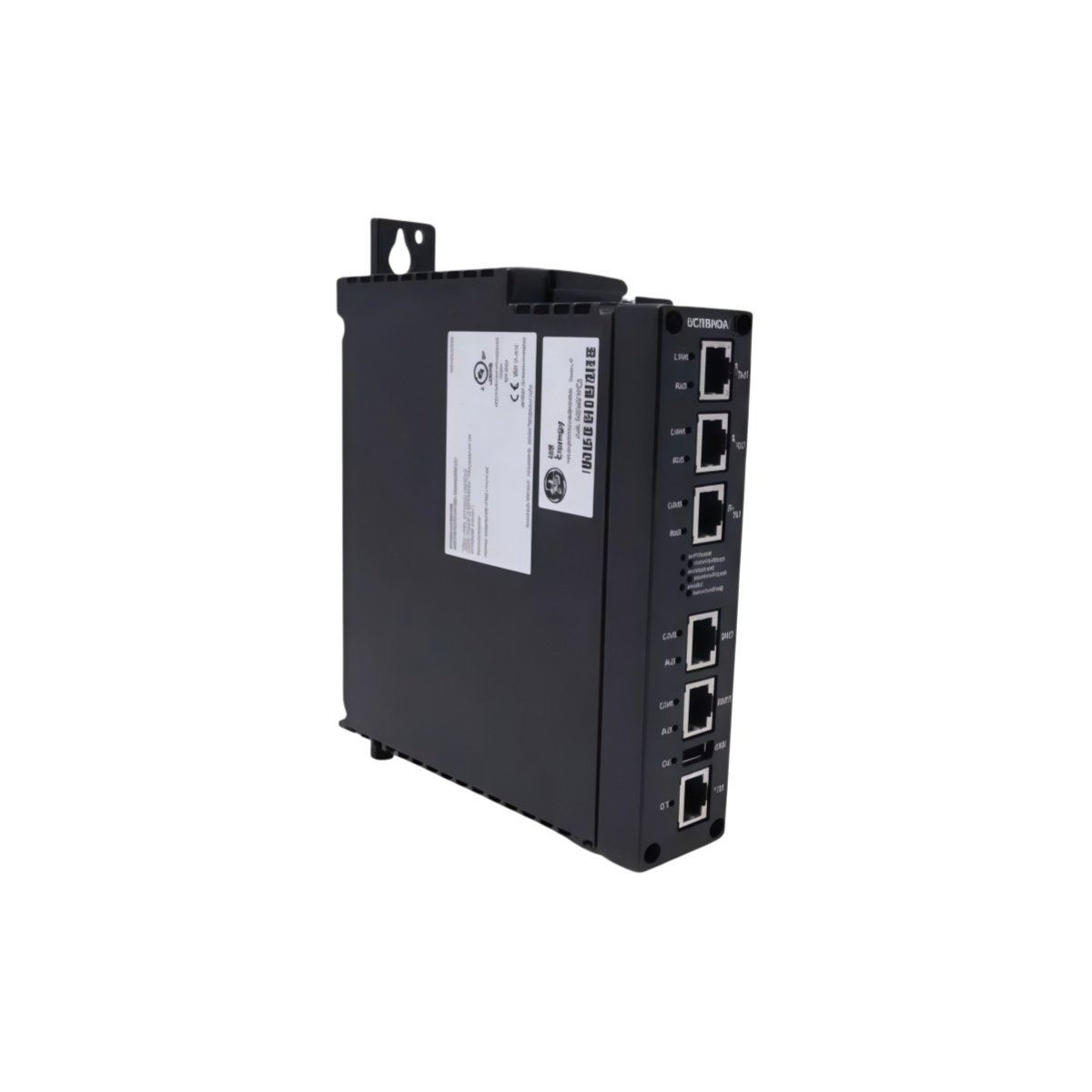

The GE IS420UCSBH3A is a high-performance controller module within the Mark VIe distributed control system. This module functions as the central processing unit for critical turbine and generator control applications . It executes application code directly on its integrated processor with deterministic real-time performance .

Technical Specifications

Processing and Memory Architecture

The GE IS420UCSBH3A delivers powerful computation for complex control algorithms and data processing . Its 600 MHz processor handles multiple tasks simultaneously without performance degradation . The module offers 512 MB of RAM for program execution and 512 MB of flash memory for persistent data storage . Moreover, a battery-backed real-time clock maintains accurate timekeeping for event logging and scheduled operations .

Network Connectivity and Integration

This controller provides four Ethernet ports for versatile network integration . Two ports support the IONet protocol, enabling high-speed, deterministic communication with I/O packs and other controllers . The remaining two ports connect to plant-wide Ethernet networks for supervisory control and data acquisition . Furthermore, the module’s built-in web server allows remote diagnostics and configuration access .

Rugged Design for Reliability

Engineers built the GE IS420UCSBH3A for continuous operation in harsh industrial environments . Its fanless, convection-cooled design eliminates moving parts, significantly reducing failure points . The module operates across a wide temperature range, making it suitable for power generation and process plants . Additionally, its compact form factor saves valuable cabinet space while maintaining high performance .
