Core Processing Capabilities
The GE IS400BPPCH1AMF handles local I/O processing for turbine control systems. This I/O pack processor board offloads data acquisition tasks from the main controller. It manages analog and digital inputs with minimal latency. Consequently, the module improves overall system response times significantly.

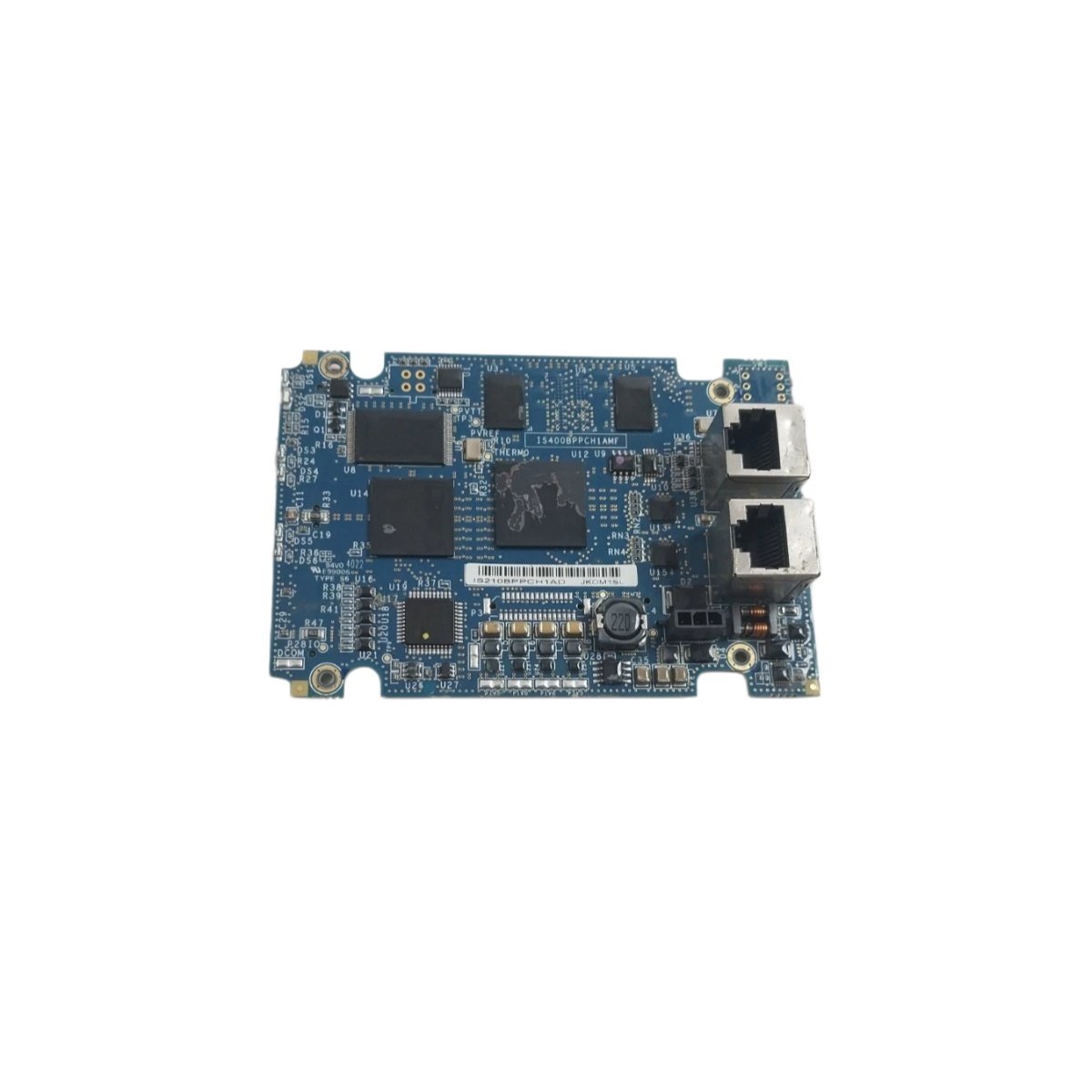

Physical Dimensions and Board Layout
This processor board measures 175 mm in total length. Its width reaches 120 mm for a compact I/O pack form factor. The board thickness stands at 18 mm including all component heights. You will find 445 discrete components on this six-layer PCB. These include a 16-bit microcontroller, memory chips, and signal conditioning circuits. The GE IS400BPPCH1AMF weighs approximately 320 grams for easy mounting.
Memory Configuration and Data Handling
The GE IS400BPPCH1AMF contains 8 MB of flash memory for firmware storage. It also includes 4 MB of SRAM for buffered I/O data. A non-volatile ferroelectric RAM stores calibration constants permanently. This FRAM retains data without any battery backup. The board does not use external memory cards or removable storage.
I/O Interface and Channel Summary
This processor board interfaces with up to 32 field I/O channels. It supports 16 analog inputs with 16-bit resolution. The board also handles 8 digital inputs and 8 digital outputs. Each digital output sinks up to 250 mA at 24 V DC. A single 50-pin header connects the board to the termination assembly.
Communication Ports and Status Indicators
The GE IS400BPPCH1AMF provides one CAN bus port for local networking. It also offers one RS-485 port for daisy-chained device communication. Furthermore, the module includes a dedicated programming port for firmware updates. Six status LEDs indicate processor health, I/O activity, and communication status. A 4-pin header supports external reset and configuration switches.
Energy Storage and Power Requirements
The GE IS400BPPCH1AMF draws 250 mA from a 5 V DC logic supply. It also requires 100 mA from a separate 24 V DC field supply. The board incorporates six 47 µF tantalum capacitors for power rail decoupling. However, these capacitors do not retain any user data after power loss. Total stored energy reaches approximately 0.04 joules at nominal voltage.
| Parameter | Specification |
|---|---|
| Model | IS400BPPCH1AMF |
| Brand | GE (General Electric) |
| Category | I/O Pack Processor Board |
| Length x Width | 175 x 120 mm |
| Thickness | 18 mm |
| Weight | 320 grams |
| Component Count | 445 |
| Flash memory | 8 MB |
| SRAM | 4 MB |
| FRAM (non-volatile) | 128 KB (no battery) |
| Analog inputs | 16 channels, 16-bit |
| Digital inputs | 8 channels |
| Digital outputs | 8 channels, 250 mA each |
| CAN bus ports | 1 |
| RS-485 ports | 1 |
| Programming port | 1 dedicated |
| Main connector | 50-pin header |
| Decoupling capacitors | 6 x 47 µF tantalum |
| Total stored energy | 0.04 Joules |
| Logic supply | 250 mA at 5 V DC |
| Field supply | 100 mA at 24 V DC |
| Status LEDs | 6 (health, I/O, comms) |
| Operating temperature | -20°C to +60°C |
Installation and Compatibility Notes
You must mount this board in a Mark VIe I/O pack carrier. Always align the 50-pin header carefully before seating the board. Then, verify that the carrier provides both 5 V and 24 V supplies. The module works with termination boards like IS200TBTCH1BBB for thermocouple inputs. Regular firmware updates add support for new I/O functions.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
