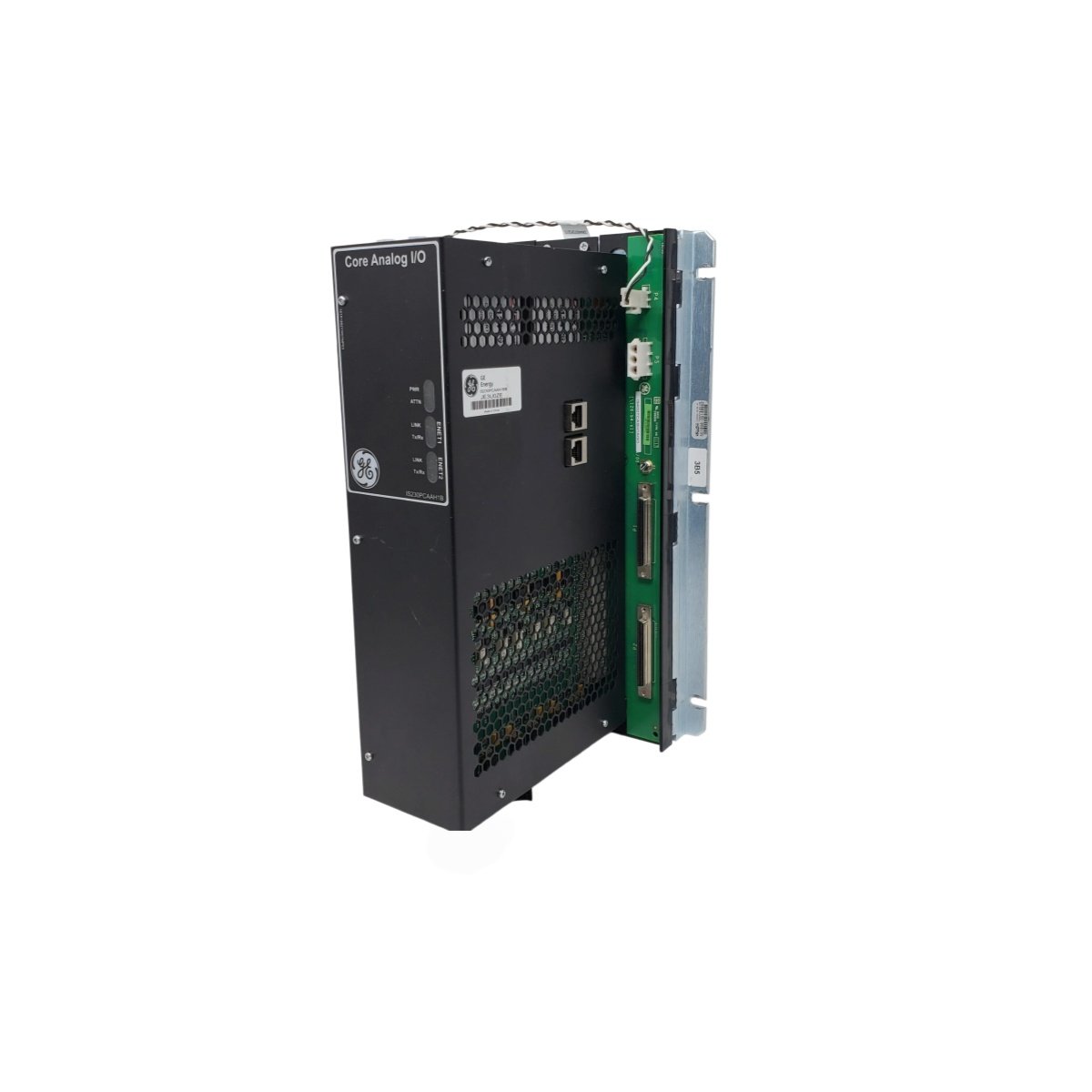

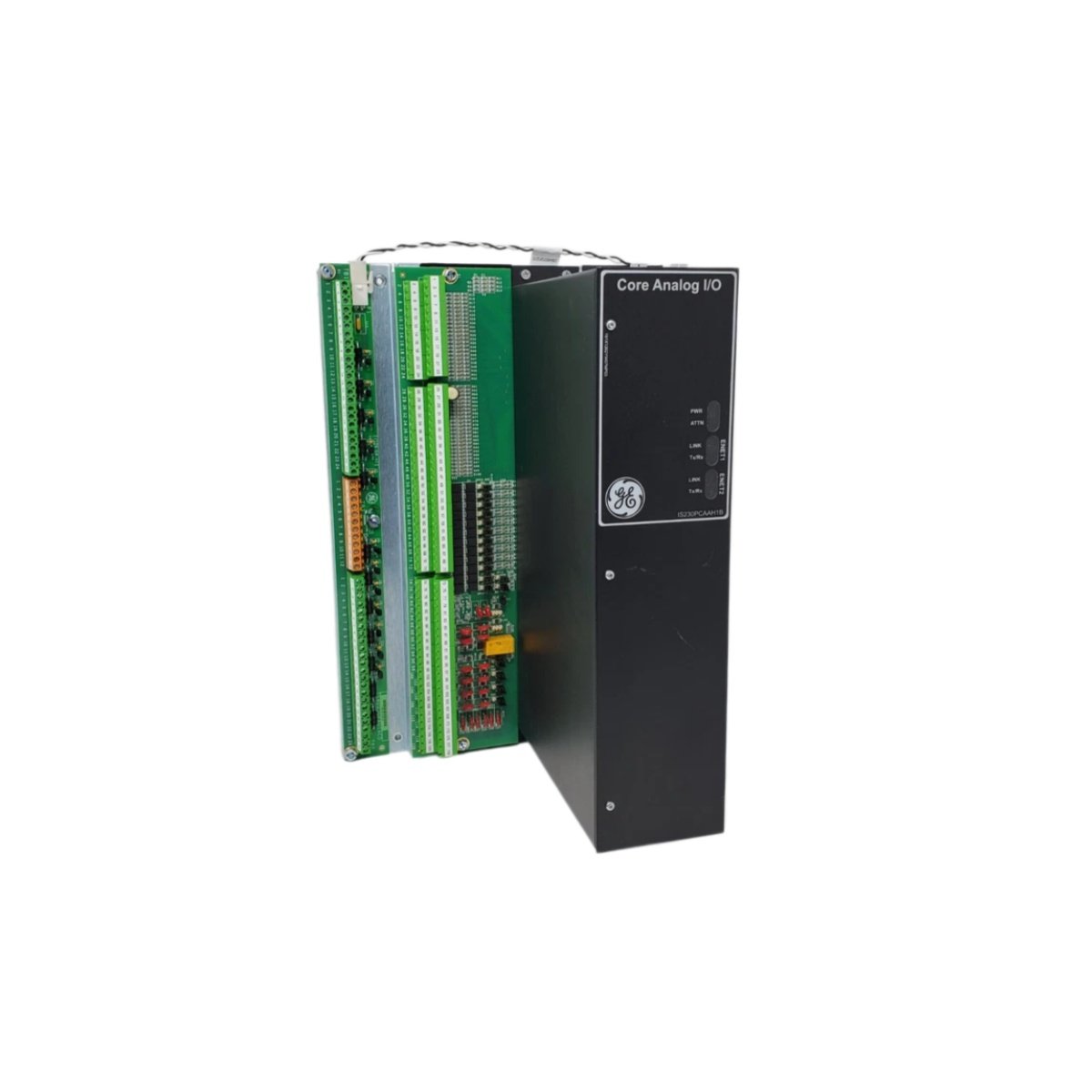

The GE IS230PCAAH1A is a core analog module engineered for the Mark VIe distributed control system. This unit handles analog signal conditioning for turbine and generator monitoring applications. It converts field sensor inputs into digital values while providing precise output control signals.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Mark VIe Core Analog I/O Module |
| Analog Input Channels | 4 x dedicated inputs (configurable) |
| Analog Output Channels | 2 x dedicated outputs (configurable) |
| Input Types Supported | 0-20 mA, 4-20 mA, ±10 V, ±5 V, RTD, thermocouple |
| Output Types Supported | 0-20 mA, 4-20 mA, ±10 V |
| Resolution | 16-bit ADC (inputs); 14-bit DAC (outputs) |
| Accuracy | ±0.1% of span (typical) |
| Update Rate | 10 ms per channel (typical) |
| Isolation | 1500 V AC (channel-to-backplane) |
| Power Consumption | 8 W typical; 12 W peak |
| Dimensions (W x H x D) | 63.5 mm x 178 mm x 130 mm |
| Weight | 0.4 kg (0.9 lbs) |
| Operating Temperature | -30°C to +65°C |
| Protection Rating | IP20 |
| MTBF | > 100,000 hours |
Analog Signal Conditioning
The GE IS230PCAAH1A provides versatile signal conditioning for multiple sensor types. It accepts current, voltage, RTD, and thermocouple inputs through configurable channels. The module automatically performs linearization, cold-junction compensation, and scaling for each input. It offers programmable gain settings to accommodate various sensor ranges. Moreover, the module provides analog outputs for driving actuators and control devices.
Communication and Integration
This module communicates with the Mark VIe controller via the IONet protocol. It transfers processed analog data deterministically to the central processing unit. The module supports peer-to-peer data sharing with other I/O modules in the chassis. Built-in diagnostic capabilities monitor channel health and report faults to the control system. Additionally, the module supports online configuration changes without requiring system shutdown.
Rugged Construction for Demanding Environments
Engineers built the GE IS230PCAAH1A to withstand harsh industrial conditions. Its robust design provides excellent noise immunity for accurate signal measurement. The module operates reliably across a wide temperature range and in high-humidity environments. Furthermore, its compact form factor allows installation in densely populated cabinets.
