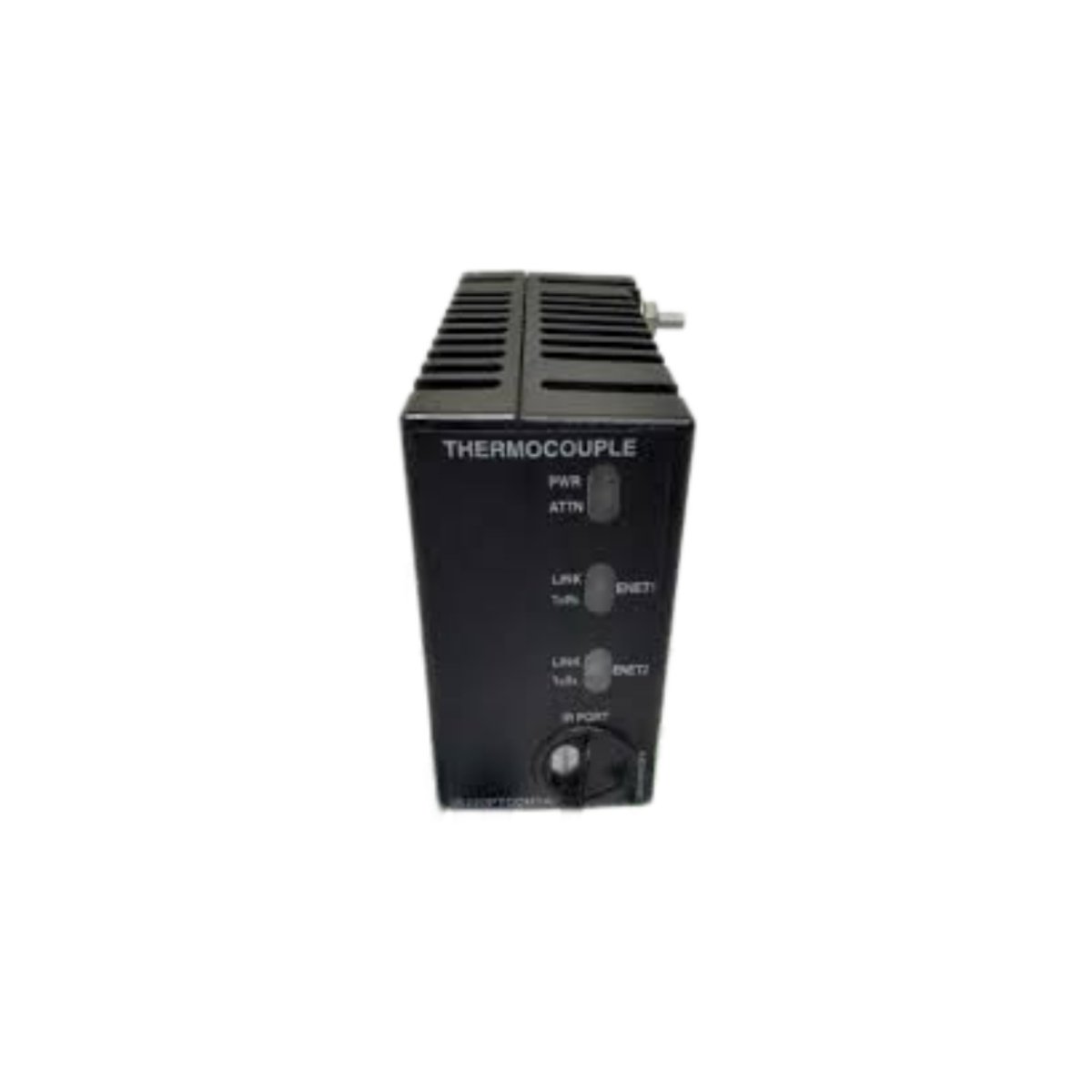

The GE IS220PTCCH1A Speedtronic Turbine Control Board manages gas and steam turbine operations. This control board handles temperature sensing and protection functions. You will find it in Mark VIe control systems for power generation. It accepts thermocouple inputs for exhaust temperature monitoring. Therefore, this unit provides critical thermal protection for turbine blades.
The GE IS220PTCCH1A Speedtronic Turbine Control Board measures 280 mm in height and 140 mm in width. Its depth reaches 35 mm for chassis mounting. The unit weighs approximately 0.85 kilograms. It contains one 32-bit processor and eight thermocouple input channels. Four isolation transformers protect the field circuits. Additionally, you get twelve status LEDs for diagnostics.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Energy / General Electric |
| Model | IS220PTCCH1A |
| Product Type | Speedtronic Turbine Control Board |
| Thermocouple Channels | 8 (type J, K, T, E, N, S) |
| Cold Junction Compensation | Automatic (onboard sensor) |
| ADC Resolution | 18 bits |
| Accuracy | ±0.5°C (typical) |
| Update Rate | 100 ms per channel |
| Isolation Rating | 1500 VAC (transformer) |
| Processor | 32-bit @ 80 MHz |
| Height | 280 mm |
| Width | 140 mm |
| Depth | 35 mm |
| Weight | 0.85 kg |
| Status LEDs | 12 (PWR, RDY, CH0-7) |
| Energy Storage | ≈ 450 µF (capacitive) |
| Power Consumption | 500 mA @ 5 VDC |
| Operating Temperature | -30°C to +65°C |
| Mounting Method | Chassis (6 screws) |
Internal Architecture and Energy Storage
The GE IS220PTCCH1A Speedtronic Turbine Control Board stores moderate energy in its power filter. Electrolytic capacitors hold approximately 450 microfarads total capacitance. A 32-bit processor runs all turbine protection algorithms at 80 MHz. This processor includes watchdog timers for fail-safe operation. Eight independent thermocouple input channels feed into an 18-bit ADC. An onboard temperature sensor provides automatic cold junction compensation. Four isolation transformers protect the controller from field transients. The board includes a dedicated hardware comparator for over-temperature trips.
Connection Interfaces and Wiring Details
You will find two 20-pin terminal blocks on the bottom edge. These blocks accept eight thermocouple pairs plus shield connections. Connect the positive thermocouple lead to the + terminal. Connect the negative lead to the – terminal. Use extension-grade thermocouple wire for accurate measurements. The GE IS220PTCCH1A Speedtronic Turbine Control Board requires 5 VDC and 24 VDC power. Twelve LEDs show power, ready, and channel status conditions. A green RDY LED lights up when the processor runs normally. A red FLT LED indicates a thermocouple open circuit or over-range condition.
Installation and Configuration Steps
You mount this board onto a metal chassis with six screws. First, drill six 4 mm holes matching the mounting pattern. Then, secure the board using M4 screws with lock washers. Connect the 5 VDC and 24 VDC power wires to the terminal block. The GE IS220PTCCH1A Speedtronic Turbine Control Board consumes 500 mA from the 5 VDC supply. Connect all thermocouple wires to the appropriate channel terminals. Use the Toolbox software to configure each channel’s thermocouple type. Set the over-temperature trip points for each critical measurement point. Download the configuration to the board’s non-volatile memory. Verify each channel with a thermocouple simulator before turbine startup.
