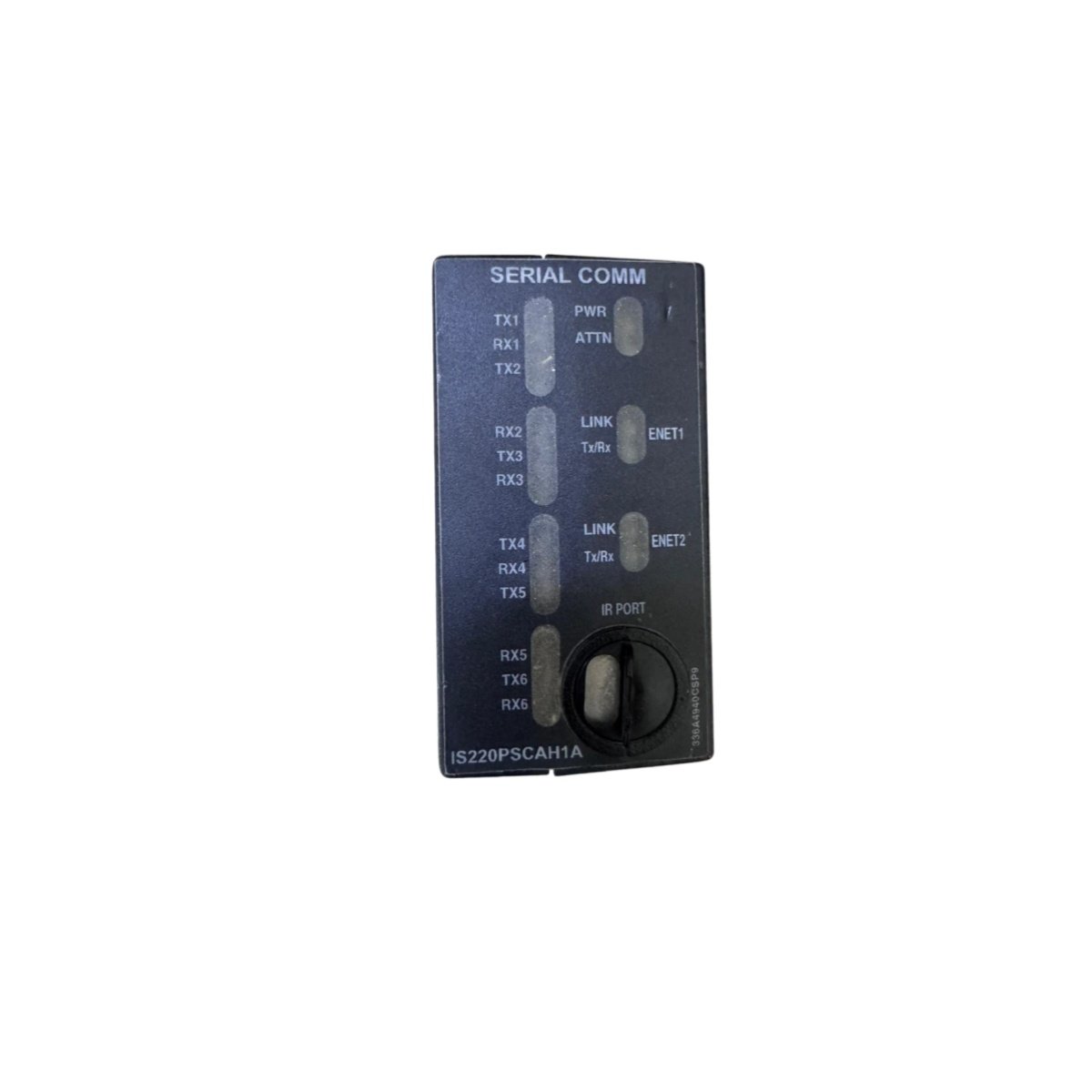

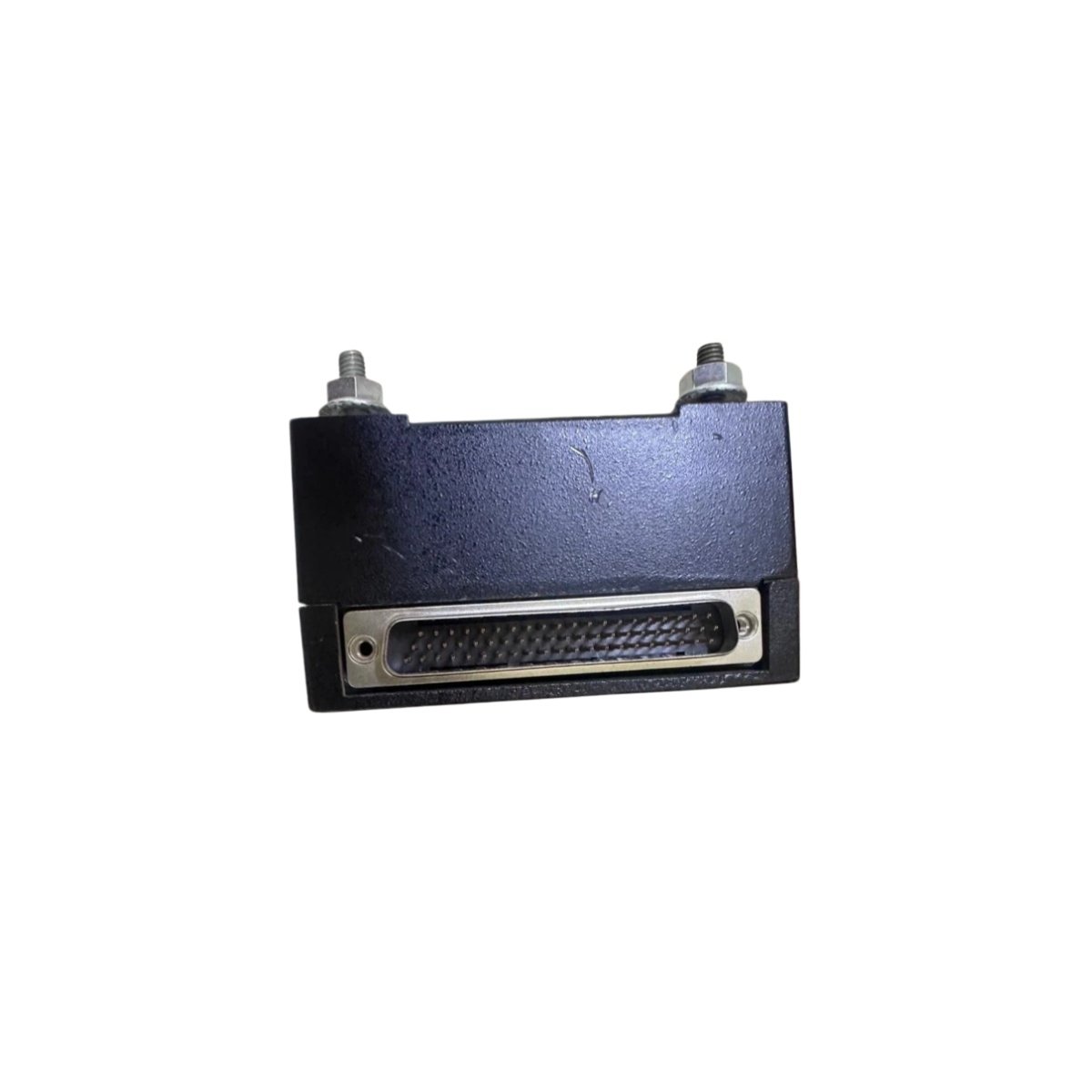

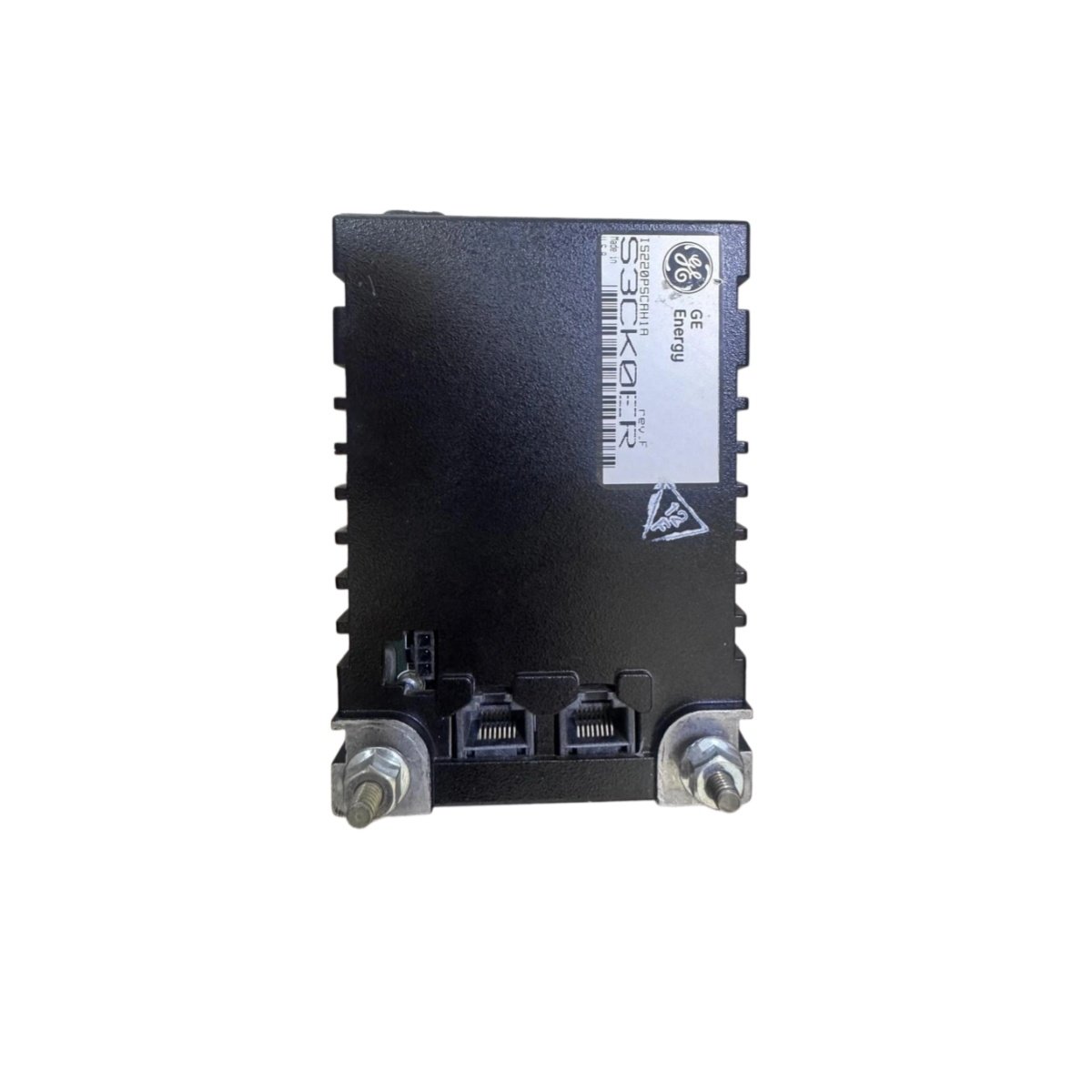

Product Overview
The GE IS220PSCAH1A serial communication module delivers reliable Modbus data exchange for industrial automation and process control applications. Moreover, the compact design supports efficient integration into GE control systems while maintaining stable communication performance.
This module enables dependable serial connectivity between field devices and distributed control equipment through industry-standard communication protocols. Additionally, the optimized hardware architecture improves data integrity and reduces communication delays during continuous operation.
The enclosure measures approximately 119 × 85 × 33 mm and weighs around 0.25 kg, making installation straightforward inside compact control cabinets. Furthermore, the rugged electronic design withstands demanding industrial environments while supporting long-term operational reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE |
| Model | IS220PSCAH1A |
| Category | Serial Modbus Communication I/O Module |
| Dimensions | Approximately 119 × 85 × 33 mm |
| Weight | Approximately 0.25 kg |
| Communication Protocol | Modbus RTU |
| Serial Interface | RS-232 / RS-485 |
| Ethernet Interface | 10/100 Mbps Ethernet |
| Power Supply | 24 V DC |
| Mounting Method | DIN Rail or Panel Mount |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95%, non-condensing |
| Internal Components | Communication processor, Ethernet controller, serial interface circuit, power regulation circuit, diagnostic LEDs, terminal connectors |
| Energy Storage | Integrated filtering capacitors for voltage stabilization and communication reliability |
| Diagnostic Features | Status LEDs and communication diagnostics |
Key Features
The high-performance communication processor ensures fast Modbus data transmission while maintaining consistent network stability under demanding operating conditions. In addition, the dual serial interfaces provide flexible connectivity for multiple industrial communication requirements.
Integrated Ethernet connectivity simplifies configuration and system management across modern industrial automation platforms. Consequently, engineers complete commissioning tasks more efficiently while reducing installation complexity.
The advanced filtering circuit enhances signal quality and minimizes electrical interference during continuous production processes. Likewise, diagnostic indicators provide immediate operating status information and accelerate routine maintenance procedures.
The compact mechanical structure conserves cabinet space while supporting convenient wiring and reliable long-term operation. Therefore, maintenance personnel replace or inspect the module quickly without disrupting surrounding equipment.
Typical Applications
The GE IS220PSCAH1A supports turbine control systems, distributed control systems, PLC communication networks, industrial process automation, and power generation facilities. Furthermore, the module delivers dependable Modbus communication between controllers, remote I/O devices, intelligent instruments, and supervisory control systems.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
