Core Function of This Wind Energy Board

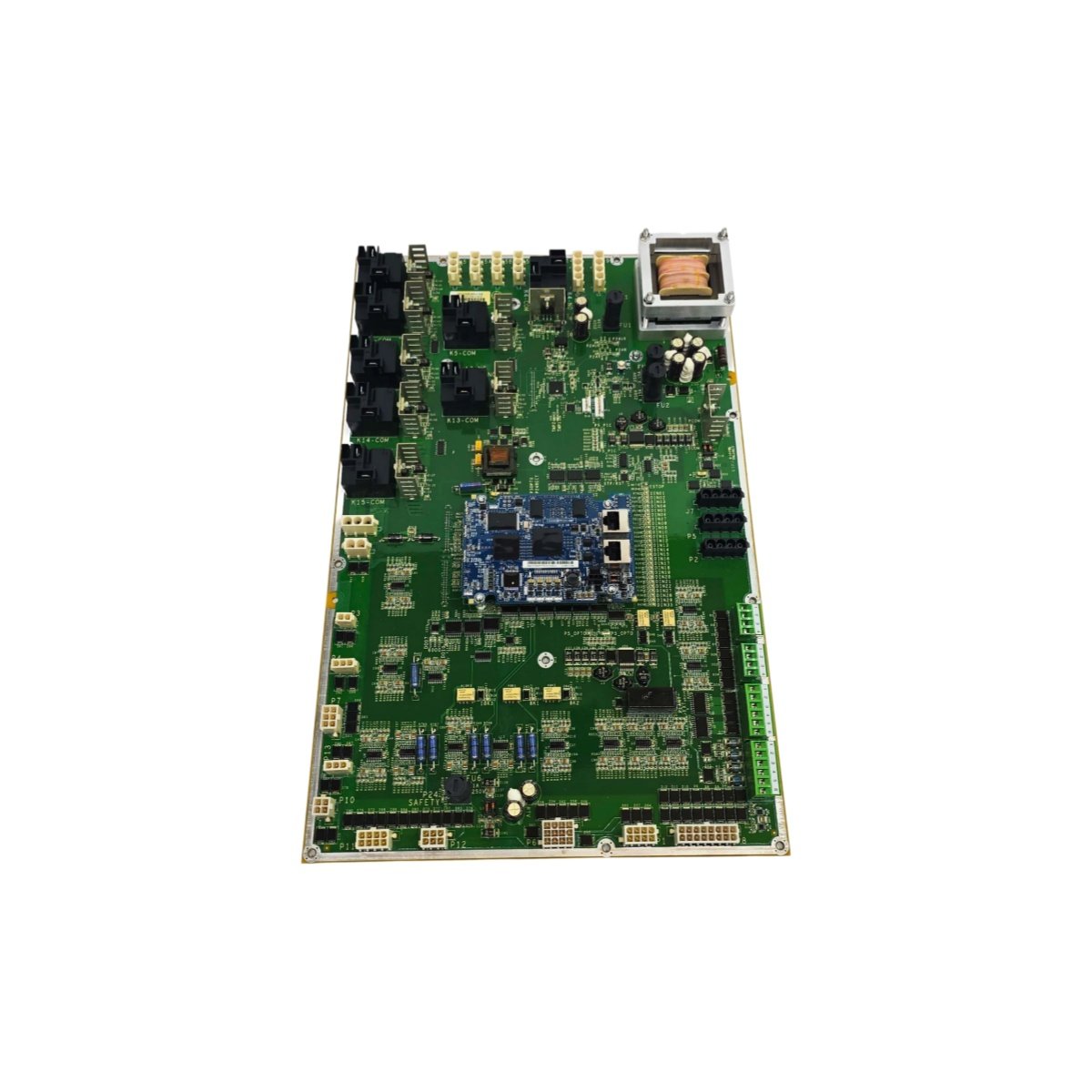

The GE IS215WEMAH1BA manages primary control functions inside wind turbine cabinets. This main cabinet board coordinates pitch control, yaw positioning, and power conversion. It processes input signals from anemometers and vibration sensors. Consequently, the module optimizes energy capture across varying wind conditions.
Physical Dimensions and Board Construction
This wind energy board measures 315 mm in total length. Its width reaches 220 mm for a full-size drive form factor. The board thickness stands at 24 mm including all component heights. You will find 532 discrete components on this ruggedized PCB. These include a main DSP, power management ICs, and communication transceivers. The GE IS215WEMAH1BA weighs approximately 890 grams for vibration-resistant mounting.
Processor and Memory Configuration
The GE IS215WEMAH1BA houses a 32-bit floating-point DSP core. This processor executes wind turbine control algorithms at 150 MHz. The board contains 16 MB of flash memory for firmware storage. It also includes 8 MB of SRAM for runtime data buffering. A non-volatile EEPROM stores turbine-specific configuration parameters permanently.
Input and Output Channel Summary
This main cabinet board provides 12 analog input channels with 14-bit resolution. It also offers 16 digital input channels for contact and proximity sensors. Furthermore, the module includes 8 relay output channels for actuator control. Each relay contact handles 250 V AC at 3 A maximum. The board uses two 64-pin DIN connectors for backplane interfacing.
Communication Interfaces and Networking
The GE IS215WEMAH1BA provides two 10/100 Ethernet ports for SCADA connectivity. It also offers one CANopen port for pitch drive communication. Furthermore, the module includes one RS-485 port for weather station data. A dedicated fiber optic interface supports high-voltage converter isolation. Eight status LEDs indicate wind speed, grid sync, and fault conditions.
Energy Storage and Power Requirements
The GE IS215WEMAH1BA draws 620 mA from a 5 V DC logic supply. It also requires 350 mA from a 24 V DC field supply. The board incorporates ten 100 µF tantalum capacitors for power decoupling. Total stored energy reaches approximately 0.09 joules at nominal voltage. The module dissipates 5.8 W of heat during normal turbine operation.
| Parameter | Specification |
|---|---|
| Model | IS215WEMAH1BA |
| Brand | GE (General Electric) |
| Category | Wind Energy Main Cabinet Board |
| Length x Width | 315 x 220 mm |
| Thickness | 24 mm |
| Weight | 890 grams |
| Component Count | 532 |
| Processor | 32-bit DSP at 150 MHz |
| Flash memory | 16 MB |
| SRAM | 8 MB |
| EEPROM (non-volatile) | 64 KB |
| Analog inputs | 12 channels, 14-bit |
| Digital inputs | 16 channels |
| Relay outputs | 8 channels, 3A at 250V AC |
| Ethernet ports | 2 x 10/100 Mbps |
| CANopen port | 1 |
| RS-485 port | 1 |
| Fiber optic interface | 1 (dedicated) |
| Backplane connectors | 2 x 64-pin DIN |
| Decoupling capacitors | 10 x 100 µF tantalum |
| Total stored energy | 0.09 Joules |
| Logic supply | 620 mA at 5 V DC |
| Field supply | 350 mA at 24 V DC |
| Power dissipation | 5.8 W |
| Status LEDs | 8 (wind, sync, faults) |
| Operating temperature | -30°C to +65°C |
Installation and Environmental Notes
You must install this board in the main wind turbine cabinet. Always use shielded cables for all sensor input connections. Then, verify that the fiber optic interface connects securely. The module withstands high vibration levels up to 5 G RMS. Regular firmware updates improve pitch control algorithms for better energy yield.
