Core Processing Capabilities
The GE IS215UCVEH2AF executes real-time control logic for turbine systems. This PCB circuit board houses a 32-bit PowerPC processor core. It manages fuel flow, inlet guide vanes, and generator excitation. Consequently, the module ensures stable operation across various load conditions.

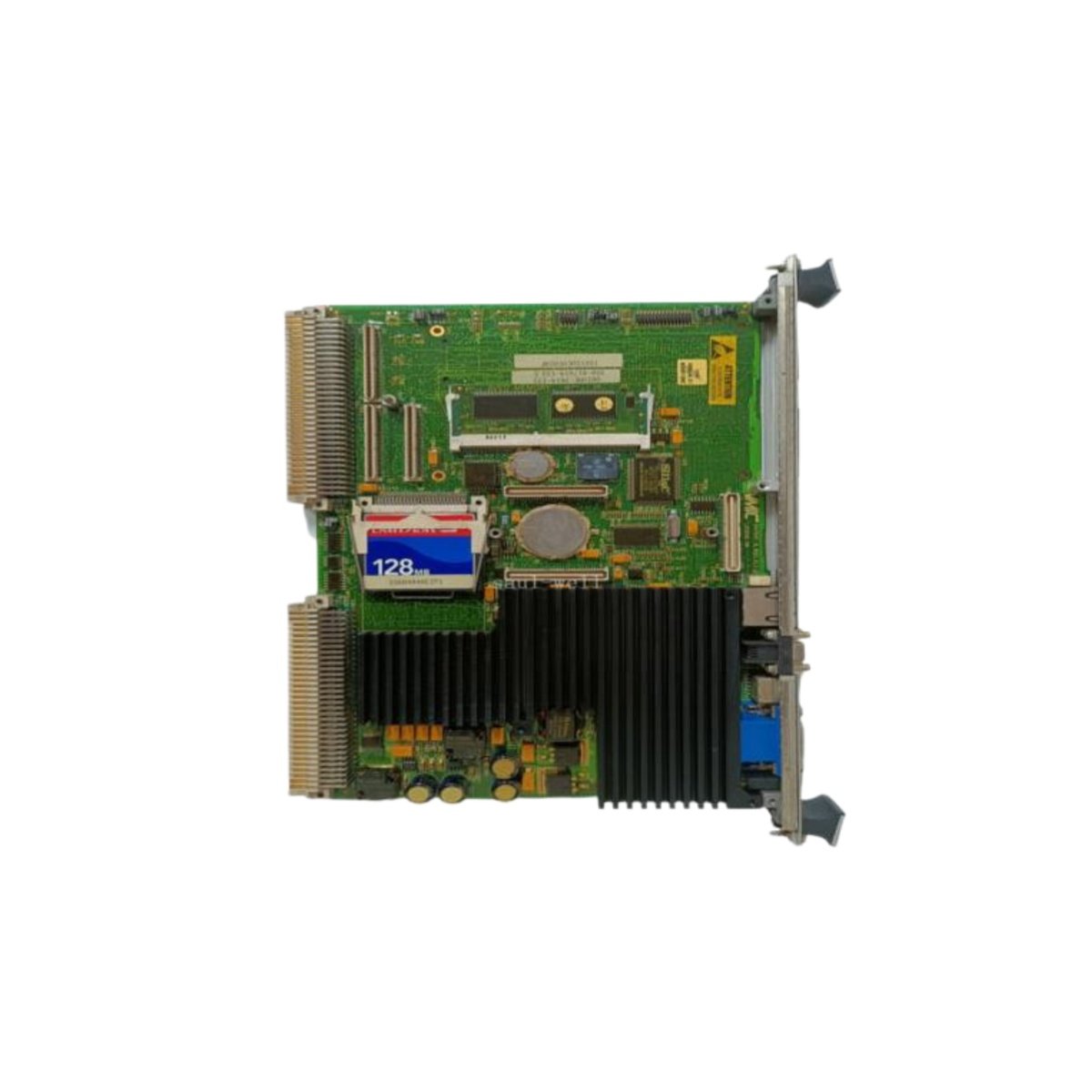

Physical Dimensions and Board Layout
This PCB circuit board measures 266 mm in total length. Its width reaches 185 mm for a full-size VME form factor. The board thickness stands at 20 mm including all component heights. You will find 678 discrete components on this multi-layer substrate. These include a main CPU, memory ICs, and communication controllers. The GE IS215UCVEH2AF weighs approximately 750 grams for secure mounting.
Memory Configuration and Data Retention
The GE IS215UCVEH2AF contains 32 MB of flash memory for firmware storage. It also includes 16 MB of SDRAM for runtime data and variables. A replaceable lithium battery preserves critical settings during power loss. This battery provides a typical retention period of five years. The board does not accept external memory cards or expansion modules.
Input and Output Interface Summary
This controller board provides two Ethernet ports for network communication. It also offers one RS-232 serial port for local engineering access. Furthermore, the module includes one RS-485 port for field device networking. The board uses a 64-pin DIN 41612 connector for the VME backplane interface. Four status LEDs indicate processor health, network activity, and user program status.
Energy Storage and Power Supply Details
The GE IS215UCVEH2AF draws 550 mA from a 5 V DC logic supply. It also requires 150 mA from a separate 24 V DC field supply. The board incorporates fourteen 100 µF tantalum capacitors for power rail decoupling. Total stored energy reaches approximately 0.07 joules at nominal voltage. The module dissipates 4.2 W of heat during normal operation.
Component Count and Environmental Specifications
| Parameter | Specification |
|---|---|
| Model | IS215UCVEH2AF |
| Brand | GE (General Electric) |
| Category | PCB Circuit Board / Controller Module |
| Length x Width | 266 x 185 mm |
| Thickness | 20 mm |
| Weight | 750 grams |
| Component Count | 678 |
| Processor | 32-bit PowerPC |
| Flash memory | 32 MB |
| SDRAM | 16 MB |
| Battery backup | Lithium cell, 5-year retention |
| Ethernet ports | 2 x 10/100 Mbps |
| Serial ports | 1 x RS-232, 1 x RS-485 |
| Backplane connector | DIN 41612, 64-pin |
| Decoupling capacitors | 14 x 100 µF tantalum |
| Total stored energy | 0.07 Joules |
| Logic supply | 550 mA at 5 V DC |
| Field supply | 150 mA at 24 V DC |
| Power dissipation | 4.2 W |
| Status LEDs | 4 (health, network, program) |
| Operating temperature | -20°C to +65°C |
Installation and Compatibility Notes
You must install this board in a Mark VIe VME rack slot. Always replace the lithium battery during scheduled maintenance every four years. Then, verify that all backplane pins align correctly before seating the card. The module works with I/O boards like IS200TRLYH1BGF and IS200TBTCH1BBB. Regular firmware updates ensure continued compatibility with newer turbine control features.
