Mark VI VME Controller Card

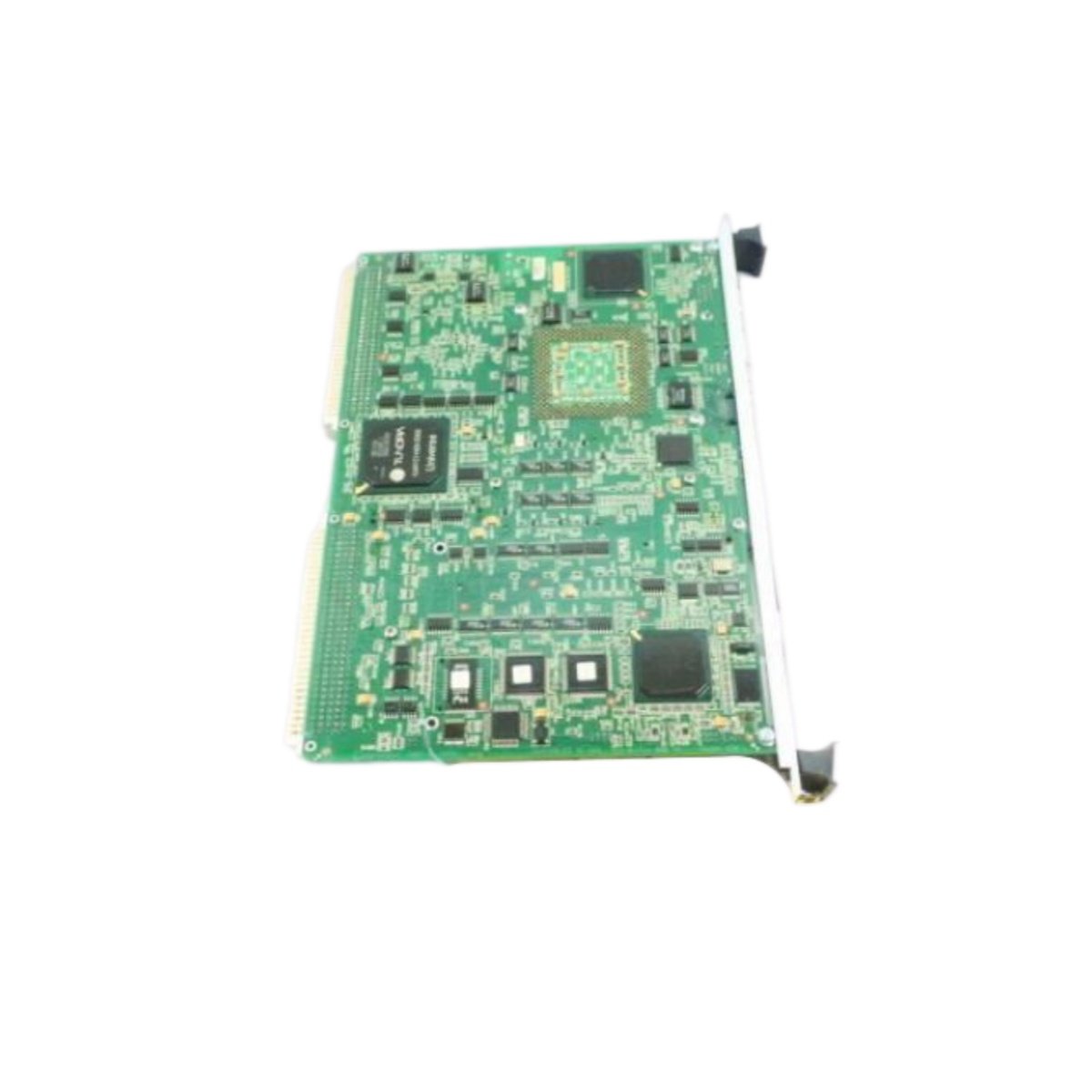

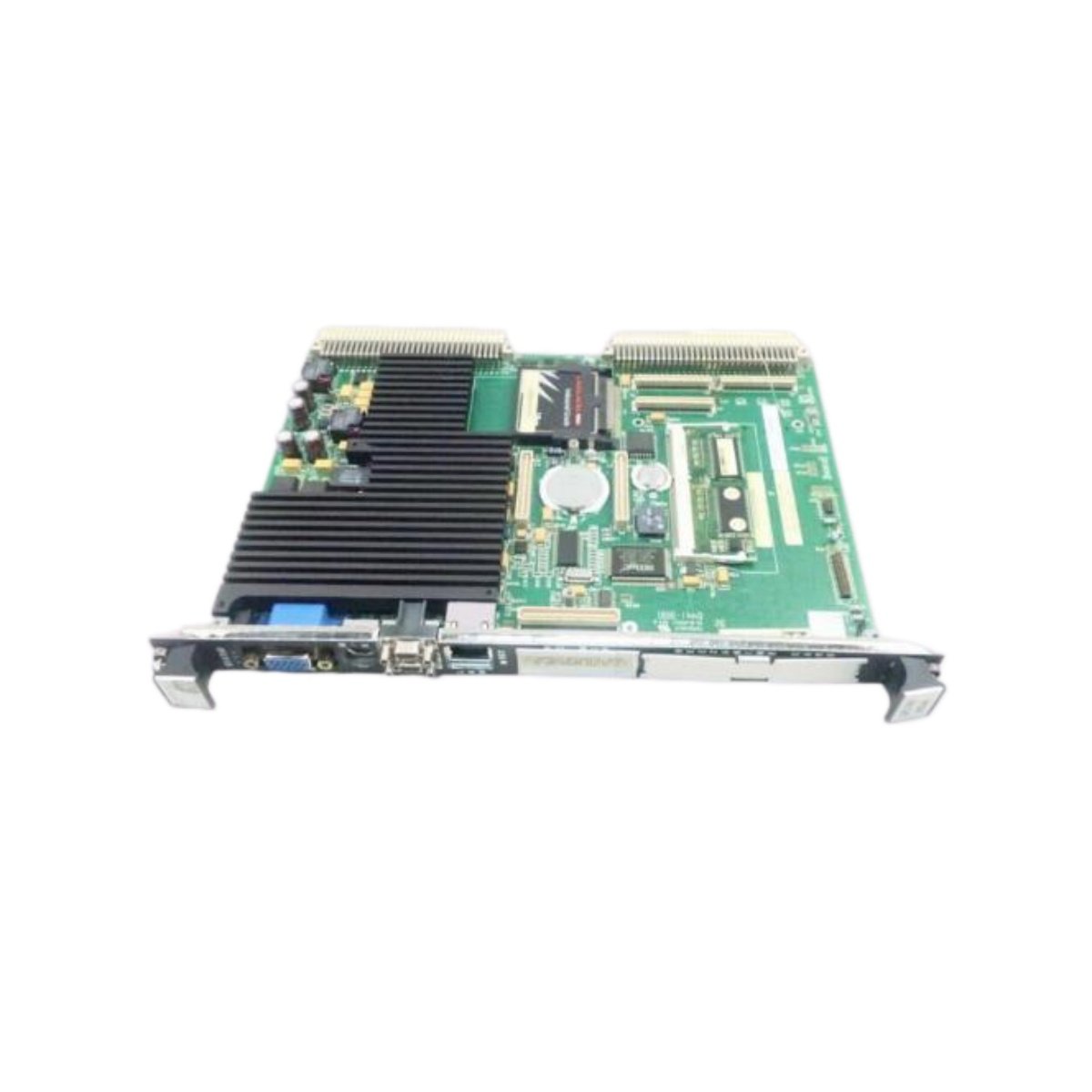

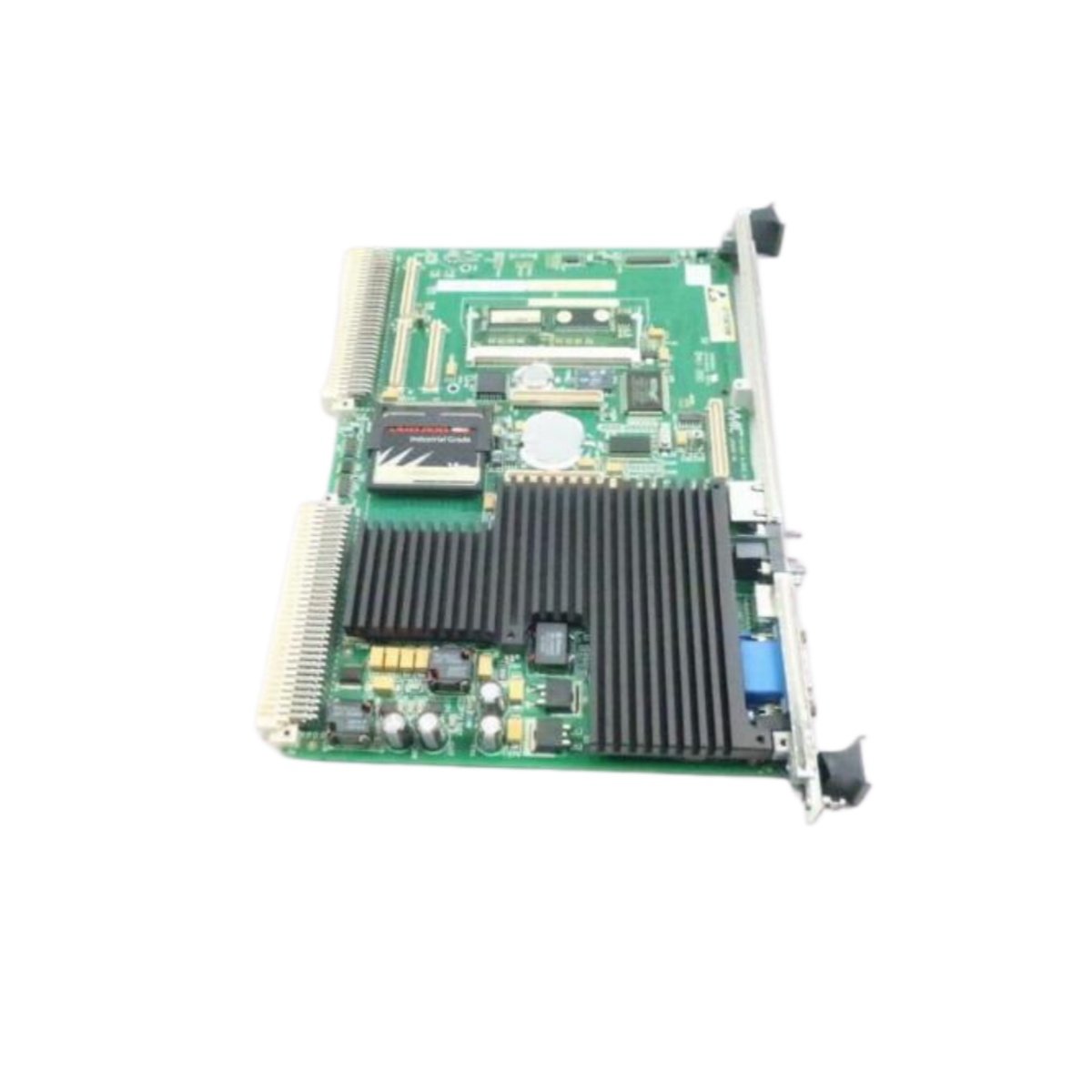

The IS215UCVEH2A functions as a VME controller card within the GE Mark VI control system. This card manages data communication between various system modules. It executes real-time control algorithms and processes critical operating parameters. The unit also coordinates system-wide functions and diagnostic reporting.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE |
| Model | IS215UCVEH2A |
| Category | VME Controller Card |
| System Compatibility | Mark VI Series |
| Processor | 32-bit RISC at 100 MHz |
| Memory | Includes 16 MB SDRAM and 4 MB Flash |
| Power Supply | Draws +5 Vdc at 1.8 A maximum |
| Data Bus | Features VME 32-bit parallel bus |
| Communication Ports | Offers two RS-485 serial ports |
| Fiber Optic Ports | Includes two SERCOS interfaces |
| Ethernet Port | Provides one 10/100BASE-T connector |
| GPIO | Features 8 general-purpose I/O lines |
| Operating Temperature | Functions from -20°C to +65°C |
| Storage Temperature | Withstands -40°C to +85°C |
| Dimensions | Measures 160.0 mm x 100.0 mm x 20.0 mm |
| Weight | Weighs approximately 0.5 kg |
| Mounting | Plugs into VME chassis slots |
| Status LEDs | Displays POWER, RUN, ERR, and COM |
| Compliance | Meets CE and RoHS standards |
Processing and Control Capabilities
This VME controller card executes high-speed control algorithms for turbine and generator applications. It communicates with I/O modules through the VME backplane interface. The card also connects to remote devices via SERCOS fiber optic links. Furthermore, it supports Ethernet for system configuration and monitoring. The processor performs continuous self-diagnostics to ensure operational integrity.
Installation and Configuration
First, insert the IS215UCVEH2A carefully into a VME chassis slot. Ensure the card seats fully into the backplane connector. Next, connect the fiber optic cables and Ethernet cable to the appropriate ports. After that, apply power and observe the LED status sequence. You can then load the control application through the Ethernet interface.
Maintenance and Operational Integrity
This controller card stores all firmware and configuration data in Flash memory. Therefore, power loss will not compromise stored system parameters. We recommend you monitor the communication status indicators during operation. You should also keep the firmware updated for optimal performance.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 160 × 100 × 20 mm |
